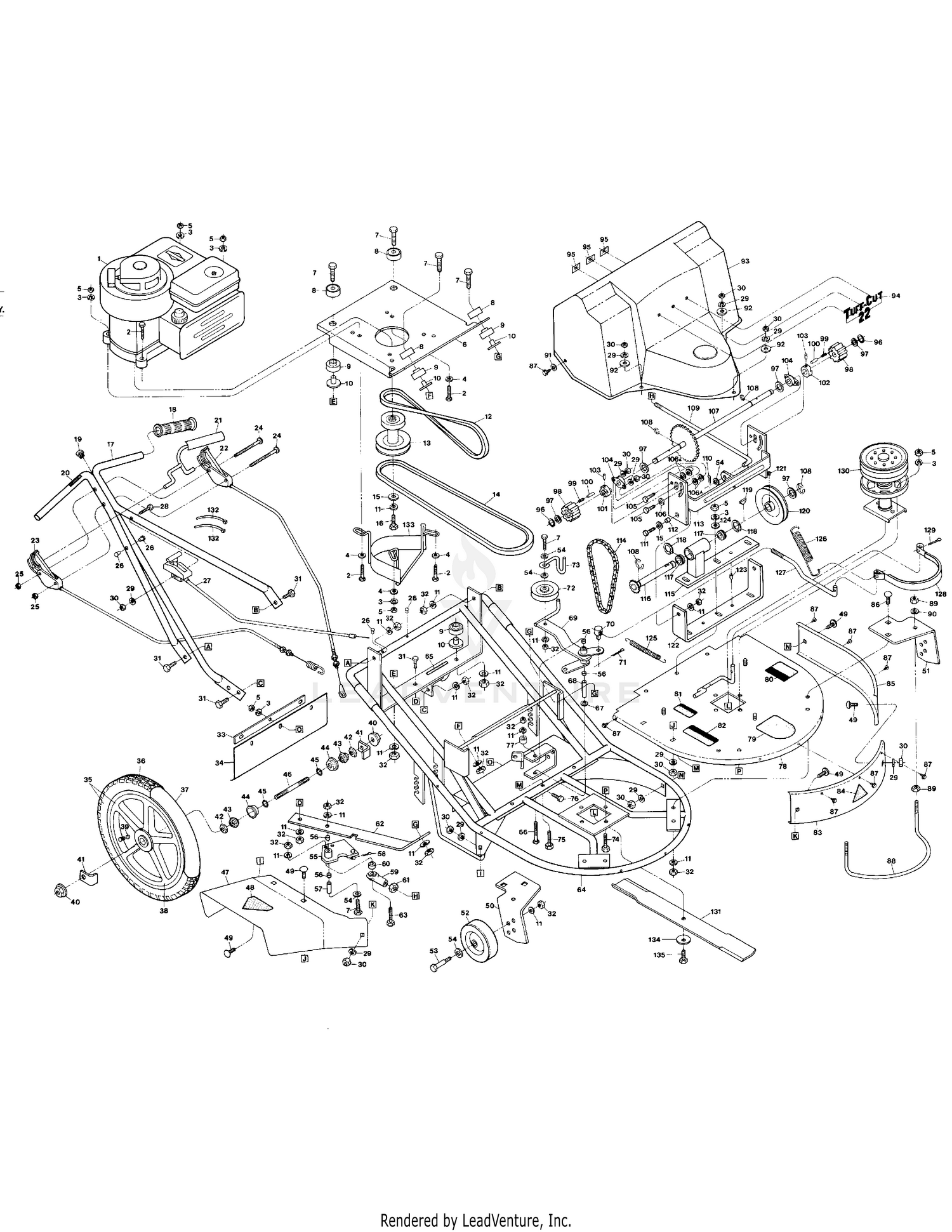

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
ENGINE, 5HP BRIGGS & STRATTON, STD. RECOIL START, MODEL 130902, TYPE 1221 |
| 2 |
710-3180 |
SCREW 5/16-18 x 1.75 GR5 This part replaces GW-T70170. Price: $4.93 |
| 3 |
936-0119 |
LOCK WASHER 5/16 This part replaces GW-T70646. Price: $4.29 |
| 4 |
GW-T70701 |
WASHER-.88X312X.08 Not Available Price: |
| 5 |
712-3010 |
HEX NUT 5/16-18 This part replaces GW-T70549. Price: $3.89 |
| 6 |
GW-T239688 |
BASE-ENGINE Price: Call Us |
| 7 |
710-3144 |
Hex Cap Screw, 3/8-16 x 2.00 This part replaces GW-T70258. Price: $4.02 |
| 8 |
GW-T200234 |
REBOUND MO Not Available Price: |
| 9 |
GW-T200236 |
LOAD CARRY Not Available Price: |
| 10 |
GW-T200237 |
TUB-SPACER 24" Price: Call Us |
| 11 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces GW-T70649. Price: $3.33 |
| 12 |
GW-T239661 |
V-BELT-TRACTION 3L X Not Available Price: |
| 13 |
GW-T239670 |
PULLEY-ENGINE Price: Call Us |
| 14 |
GW-T236321 |
V-BELT - BLADE Not Available Price: |
| 15 |
736-3052 |
Flat Washer, .406 x 1.0 x .105 This part replaces GW-T70703. Price: $4.02 |
| 16 |
GW-T70292 |
SCREW-HH 3 Not Available Price: |
| 17 |
GW-T1000005 |
ASSM-HANDLEBAR 22" PUSH Not Available Price: |
| 18 |
GW-T239797 |
GRIP-HANDLEBAR Not Available Price: |
| 19 |
GW-T7505 |
PLUG-METAL CAP Not Available Price: |
| 20 |
GW-T240263 |
DECAL-STARTING INST Price: Call Us |
| 21 |
GW-T239739 |
BAIL WELDMENT-SELF PROP Price: Call Us |
| 22 |
GW-T239737 |
CABLE-WHEEL DRIVE (CABLE & LATCH) Price: Call Us |
| 23 |
GW-T239738P |
CABLE-BLADE DRIVE Not Available This part replaces GW-T239738. Price: |
| 24 |
GW-T239743 |
SCR-PHP M10-24X4.0 Not Available Price: |
| 25 |
GW-T70599 |
HEX LOCK NUT #10 Not Available Price: |
| 26 |
GW-T240175 |
PLUG-HOLE Not Available Price: |
| 27 |
GW-T239735 |
SPEED CONTROL-ENGINE (CABLE & CONTROL) Price: Call Us |
| 28 |
GW-T70111 |
SCR 1/4-20X1.5 PL CSHH Not Available Price: |
| 29 |
936-0329 |
Lock Washer This part replaces GW-T70643. Price: $3.90 |
| 30 |
GW-T70545 |
NUT-HEX 1/4-20 Price: $4.05 |
| 31 |
710-0216 |
HEX SCREW 3/8-16 X .75 This part replaces GW-T70226. Price: $3.93 |
| 32 |
712-3017 |
HEX NUT 3/8-16 GR5 This part replaces GW-T70553. Price: $3.90 |
| 33 |
GW-T239687 |
BRKT-PROT TRAILER PNT Not Available Price: |
| 34 |
GW-T239677 |
TRAILER-MOWER Not Available Price: |
| 35 |
GW-T239691 |
TIRE & WHEEL A Not Available Price: |
| 36 |
GW-T239806 |
TIRE-16 x 2.125 Not Available Price: |
| 37 |
GW-T239808 |
TUBE-16" Not Available Price: |
| 38 |
GW-T239804 |
ASSM-16" RIM Not Available Price: |
| 39 |
GW-T3823 |
VALVE CAP Not Available Price: |
| 40 |
GW-T239937 |
NUT-HF/LK 3/8-24 WHIZ Not Available Price: |
| 41 |
GW-T239697 |
TAB - WHEE Not Available Price: |
| 42 |
GW-T239801 |
NUT-LOCK 3/8-24 PL Not Available Price: |
| 43 |
GW-T239798 |
NUT-ACORN 3/8-24 Price: Call Us |
| 44 |
GW-T239800 |
CUP-WHEEL Price: Call Us |
| 45 |
GW-T239803 |
BEARING-WHEEL Price: Call Us |
| 46 |
GW-T239802 |
AXLE-WHEEL Not Available Price: |
| 47 |
GW-T239712 |
CHUTE-DISCHARGE W/DECAL Not Available Price: |
| 48 |
GW-T214744 |
DECAL-BLADE WARNIN Not Available Price: |
| 49 |
GW-T70433 |
SCR-CARR 1/4-20X.375 Not Available Price: |
| 50 |
GW-T239621 |
HANGER-RT WHL PNT Price: Call Us |
| 51 |
GW-T239622 |
HANGER-LT WHL PNT Not Available Price: |
| 52 |
GW-T239686 |
FRONT WHEEL AND Not Available Price: |
| 53 |
GW-T25068 |
SCR-SHLDR 3/8-16X1.406 Price: Call Us |
| 54 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces GW-T70687. Price: $3.90 |
| 55 |
GW-T239727 |
ASSM-BELLCRANK W/BUSHING (INCL. TWO BEARINGS REF. NO. 56) Price: Call Us |
| 56 |
GW-T27503 |
BEARING-SLEEVE Not Available Price: |
| 57 |
GW-T239725 |
TUBE-BELL CRANK Price: Call Us |
| 58 |
GW-T70741 |
PIN-COTTER .09X.75 Not Available Price: |
| 59 |
GW-T24542 |
JOINT-BALL Price: Call Us |
| 60 |
GW-T231318 |
SPACER Price: Call Us |
| 61 |
912-3001 |
Jam Nut, 3/8 This part replaces GW-T70576. Price: $5.94 |
| 62 |
GW-T239728 |
STRAP-BELLCRANK Price: Call Us |
| 63 |
GW-T70254 |
SCR-HH 3/8-16X1.75 GR5 Price: Call Us |
| 64 |
GW-T239680 |
WELDMENT-FRAME 22" (INCL. REF. NO. 65) Price: Call Us |
| 65 |
GW-T228886 |
DECAL - CPSC COMPL Not Available Price: |
| 66 |
710-0693 |
Hex Bolt 3/8-16 x 4.5" ig. This part replaces GW-T71238. Price: $12.87 |
| 67 |
GW-T13235 |
SHIM-.88 X Not Available Price: |
| 68 |
GW-T239706 |
PIVOT TUBE Not Available Price: |
| 69 |
GW-T239700 |
ARM-IDLER W/BUSHINGS Not Available Price: |
| 70 |
GW-T213158 |
TRUNNION Not Available Price: |
| 71 |
GW-T70742 |
PIN-COTTER .094X1.0 Price: Call Us |
| 72 |
GW-T230178 |
IDLER PULLEY Not Available Price: |
| 73 |
GW-T241651 |
GUIDE-BLADE BELT Not Available Price: |
| 74 |
710-0376 |
Hex Screw, 5/16-18 x 1.00 This part replaces GW-T70151. Price: $3.66 |
| 75 |
710-3013 |
SCREW 1/4-20X.5 GR5 This part replaces GW-T70175. Price: $4.02 |
| 76 |
GW-T70143 |
SCR-HHC 5/16-18X.75 GR 5 Price: $3.76 |
| 77 |
GW-T241439 |
SPACER-.625X.387X1.0 Not Available Price: |
| 78 |
GW-T239689 |
ASSM-DECK TOP 22" (INCL. 79-82) Price: Call Us |
| 79 |
GW-T240149 |
DECAL-TUFFCUT LOGO Not Available Price: |
| 80 |
GW-T234513 |
DECAL-WARNING PROCEDURES Not Available Price: |
| 81 |
GW-T240226 |
DECAL-CAUTION BELT Not Available Price: |
| 82 |
GW-T233160 |
DECAL-DANGER GUARD Not Available Price: |
| 83 |
GW-T239629 |
WRAP-FRONT 22" PNT (INCL. 84) Price: Call Us |
| 84 |
GW-T240148 |
DECAL-OPEI Price: Call Us |
| 85 |
GW-T239628 |
WRAP-LH PNT Price: Call Us |
| 86 |
710-3168 |
CARRIAGE BOLT 3/8-16 x 1.00 GR5 This part replaces GW-T70451. Price: $3.61 |
| 87 |
GW-T239890 |
SCR-HW M10-16X.75 SELT DR Not Available Price: |
| 88 |
GW-T239625 |
BUMPER-22" PNT Not Available Price: |
| 89 |
712-0206 |
HEX NUT This part replaces GW-T70563. Price: $3.90 |
| 90 |
736-0921 |
Lock Washer, 1/2 This part replaces GW-T70655. Price: $3.90 |
| 91 |
736-0931 |
Flat Washer, .203 x .403 x .040 This part replaces GW-T70697. Price: $4.02 |
| 92 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces GW-T70699. Price: $5.94 |
| 93 |
GW-T240088 |
KIT-SVC 22" BELT COVER Price: Call Us |
| 94 |
GW-T240119 |
PLATE-NAME 22" Not Available Price: |
| 95 |
GW-T240206 |
CLIP, NAMEPLATE MOUNTING Price: Call Us |
| 96 |
916-0171 |
RETAINING RING This part replaces GW-T24546. Price: $5.04 |
| 97 |
GW-T11412 |
WASHER-1.0X.632X.03 Not Available Price: |
| 98 |
GW-T239761 |
DRIVE ROLL Not Available Price: |
| 99 |
GW-T239841 |
SPRING - DOWEL RET Not Available Price: |
| 100 |
GW-T239840 |
DOWEL PIN Not Available Price: |
| 101 |
GW-T239633 |
RATCHET (RH) MACH Not Available Price: |
| 102 |
GW-T239634 |
RATCHET-LH MACH Price: Call Us |
| 103 |
915-0134 |
SPRING PIN3/16 x 1.50 Not Available This part replaces GW-T70762. Price: |
| 104 |
GW-T239659 |
BEARING Price: Call Us |
| 105 |
710-3015 |
Hex Cap Screw, 1/4-20 x .75 This part replaces GW-T70097. Price: $3.65 |
| 106 |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces GW-T70683. Price: $5.94 |
| 106A |
736-3020 |
Flat Washer .271 ID x .630 OD This part replaces GW-T70683. Price: $5.94 |
| 107 |
GW-T239664 |
WELD-AXLE 22" DRIVE SHAFT Price: Call Us |
| 108 |
716-0106 |
E-ring This part replaces GW-T212726. Price: $3.52 |
| 109 |
GW-T239731 |
ROD-WHEEL Not Available Price: |
| 110 |
GW-T9678 |
CLIP-HITCH PIN #13 PL Not Available Price: |
| 111 |
710-0514 |
SCREW 3/8-16 x 1 GR5 This part replaces GW-T70235. Price: $3.78 |
| 112 |
GW-94006 |
SPACER-.390X.630X. Not Available This part replaces GW-T236141. Price: |
| 113 |
GW-T239698 |
ASSM-TRACTION BRKT Price: Call Us |
| 114 |
GW-T238343 |
CHAIN #35-46 PITCHES Not Available Price: |
| 115 |
GW-T239658 |
BRKT-JACKSFT MTG PNT Price: Call Us |
| 116 |
GW-T239668 |
JACKSFT-WELD HEAT TREAT Price: Call Us |
| 117 |
741-0145 |
GROOVE BALL BEARING This part replaces GW-T17320. Price: $37.42 |
| 118 |
GW-97016 |
RING-RETAIN EXT 1. Not Available This part replaces GW-T1764. Price: |
| 119 |
GW-T71413 |
KEY-HI PRO 1/8X1/2 Price: Call Us |
| 120 |
GW-T240086 |
PULLEY-WHEEL DRIVE Price: Call Us |
| 121 |
GW-T70048 |
SCR-SET 1/4-20X1/4 Not Available Price: |
| 122 |
GW-T239654 |
BRKT-U CHANNEL PNT Not Available Price: |
| 123 |
GW-T71412 |
PIN-ROLL 1/4X1/2 Not Available Price: |
| 124 |
GW-T2679 |
WASHER Not Available Price: |
| 125 |
GW-T239734 |
SPRING-WHEEL OR RE Not Available Price: |
| 126 |
GW-T239750 |
SPRING-SPINDLE BRAKE Not Available Price: |
| 127 |
GW-T239708 |
ROD - BRAK Not Available Price: |
| 128 |
GW-T229589 |
BRAKE BAND & LINING Not Available Price: |
| 129 |
GW-T70721 |
PIN-COTTER .125X.750 Price: Call Us |
| 130 |
GW-T239693 |
SPINDLE KIT-TUFF Not Available Price: |
| 131 |
GW-T239632 |
BLADE-22" TUFFCUT NLA ETION Price: Call Us |
| 133 |
GW-T239715 |
GUIDE-BELT PNT Not Available Price: |
| 134 |
GW-T241589 |
WASHER-BELLEVILLE 3/8 Price: Call Us |
