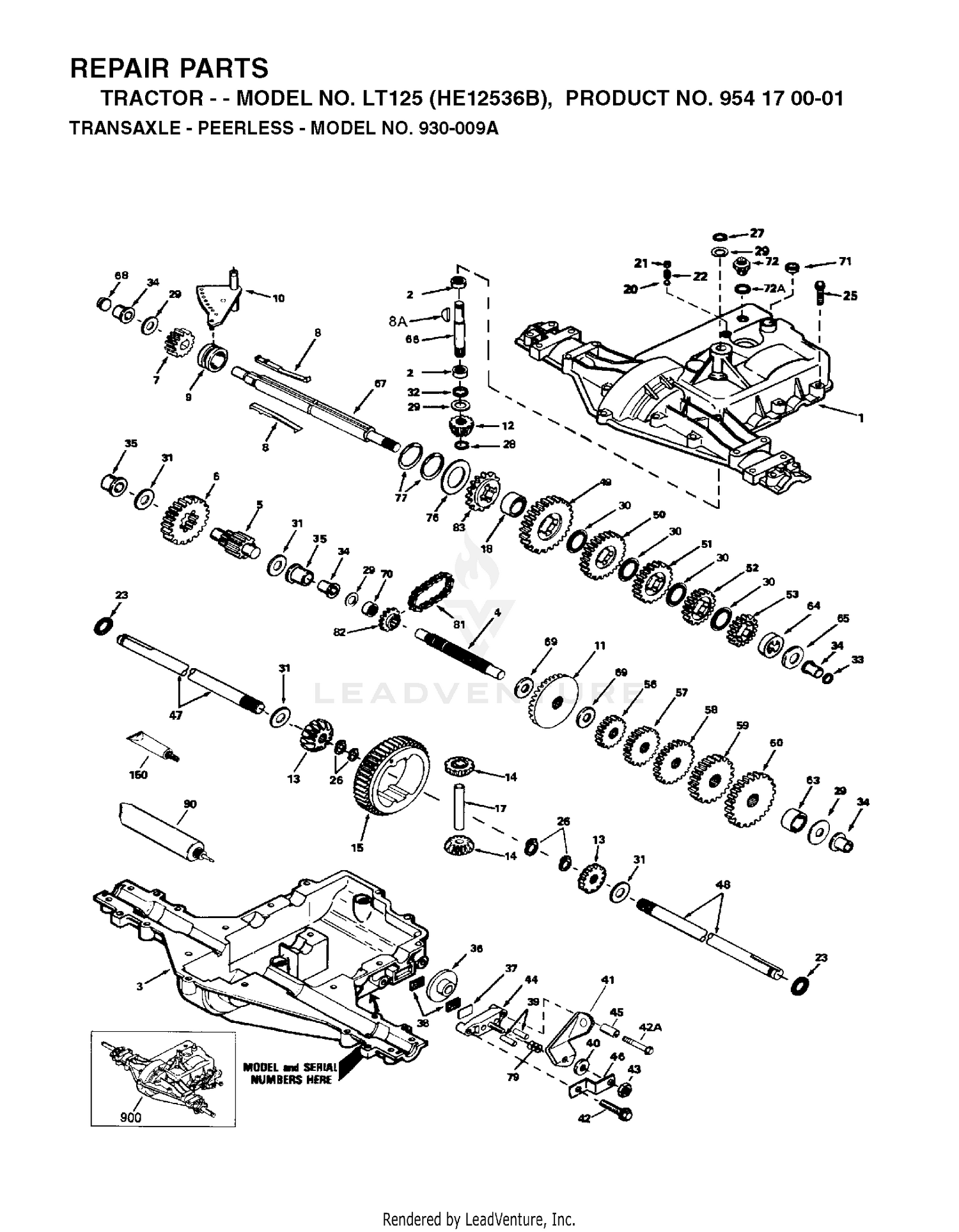

| Ref | Part Number | Description |
|---|
| 1 |
163-3530 |
CYLINDER-HYDRAULIC This part replaces 119-6988. Price: $515.30 |
| 2 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 2 |
780086 |
Bearing, Needle Price: Call Us |
| 3 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 4 |
120-3782-01 |
BRACKET-BULKHEAD, RH Price: $20.07 |
| 4 |
776260 |
Shaft, Counter Price: Call Us |
| 5 |
110-0917-01 |
BRACKET-BULKHEAD, LH Price: $38.57 |
| 6 |
340-70 |
NUT-LOCK Price: $2.10 |
| 7 |
133-2987 |
TUBE-ASM Price: $64.12 |
| 8 |
133-2986 |
TUBE-ASM Price: $64.71 |
| 8A |
792047 |
Woodruff Key No. 9 Price: Call Us |
| 9 |
322-4 |
SCREW-HH Price: $0.35 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
340-78 |
NUT-LOCK Price: $1.63 |
| 11 |
778229 |
Bevel Gear (42 teeth-steel) Price: Call Us |
| 12 |
110-0930 |
HOSE-HYD Price: $78.57 |
| 13 |
110-8966 |
HOSE-HYD Price: $90.13 |
| 14 |
110-0929 |
HOSE-HYD Price: $77.83 |
| 14 |
778068 |
Gear, Bevel Pinion Price: Call Us |
| 15 |
147-7995 |
HOSE ASM, HYD HP This part replaces 110-0931. Price: $63.58 |
| 15 |
778260 |
Gear, Ring Price: Call Us |
| 16 |
3234-38 |
SCREW-HHF Price: $3.33 |
| 17 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 18 |
117-0148 |
PIN-CYLINDER Price: $52.54 |
| 18 |
786102 |
Spacer, Neutral Price: Call Us |
| 19 |
104-0046 |
PIN-SLIDE, CYLINDER Price: $10.19 |
| 20 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 20 |
792077 |
Ball, Steel 5/16" diameter Price: Call Us |
| 21 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 21 |
792078 |
Set Screw 3/18-16 x 3/8" Price: Call Us |
| 22 |
100-7695 |
FITTING-ELBOW 90 Price: $89.17 |
| 22 |
792079 |
Spring Price: Call Us |
| 23 |
323-9 |
SCREW-HH Price: $1.29 |
| 23 |
788061 |
Ring, Seal Price: Call Us |
| 24 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 25 |
120-3766 |
HYD TUBE ASM Price: $165.53 |
| 26 |
120-3771 |
HYD TUBE ASM Price: $176.15 |
| 26 |
792125 |
Ring, Retainer (4 Required, Package of 2) Price: Call Us |
| 27 |
32144-57 |
SCREW Price: $1.04 |
| 27 |
792035 |
Retaining Ring Price: Call Us |
| 28 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 28 |
788040 |
Ring, Retaining Price: Call Us |
| 29 |
3230-5 |
BOLT-CAR Price: $0.54 |
| 29 |
780072 |
Washer, Thrust Price: Call Us |
| 30 |
780108 |
Washer, Thrust Price: Call Us |
| 31 |
780001 |
Washer (.056 wide) Price: Call Us |
| 33 |
788095 |
Seal, Square Cut Price: Call Us |
| 36 |
790003 |
Disk, Brake Price: Call Us |
| 37 |
790007 |
Plate, Brake pad Price: Call Us |
| 38 |
799021 |
Brake Pad (pkg of 2) Price: Call Us |
| 39 |
786026 |
Pin, Dowel Price: Call Us |
| 40 |
792076A |
Washer, Flat Price: Call Us |
| 41 |
790079 |
Lever, Brake Price: Call Us |
| 42 |
792073 |
Screw, Flanged Hex Head, Thread Forming 1/4-20 x 1-1/4 Price: Call Us |
| 42A |
792085A |
Screw, 1 /4-20 x 2-1 /4" Price: Call Us |
| 43 |
792075 |
Lock Nut 5/16-24 Price: Call Us |
| 44 |
790025 |
Holder, Brake pad Price: Call Us |
| 45 |
786066 |
Spacer (1/2" OD) Price: Call Us |
| 46 |
786086 |
Bracket, Brake lever Price: Call Us |
| 47 |
774690 |
Axle (11-15/16" long) Price: Call Us |
| 48 |
774691 |
Axle (16-1/2" long) Price: Call Us |
| 49 |
778191 |
Gear, Spur, 37 Teeth (1 st) Price: Call Us |
| 53 |
778273 |
Gear, Spur, 19 Teeth, Steel (4 th) Price: Call Us |
| 56 |
778230 |
Gear, Spur, 12 Teeth (1 st) Price: Call Us |
| 60 |
778163 |
Gear, Spur, 31 Teeth (5 th) Price: Call Us |
| 63 |
786071 |
Countershaft Spacer (1-1/8" x 3/8") Price: Call Us |
| 64 |
786072 |
Brake Shaft Spacer (1-3/8" x 3/8") Price: Call Us |
| 66 |
776135 |
Input Shaft (3.687" long) Price: Call Us |
| 69 |
780051 |
Thrust Washer (.762 ID) Price: Call Us |
| 71 |
788069 |
Seal, Square Cut Price: Call Us |
| 76 |
780090 |
Washer, Thrust Price: Call Us |
| 77 |
788078A |
Ring, Retaining, Inverted (Package of 2) Price: Call Us |
| 79 |
792144 |
Piston Assembly Price: Call Us |
| 81 |
786081 |
Chain, Roller (Number 41 Chain, 24 Links) Price: Call Us |
| 150 |
510334 |
Gasket Eliminator (Loctite No. 515) Price: Call Us |
