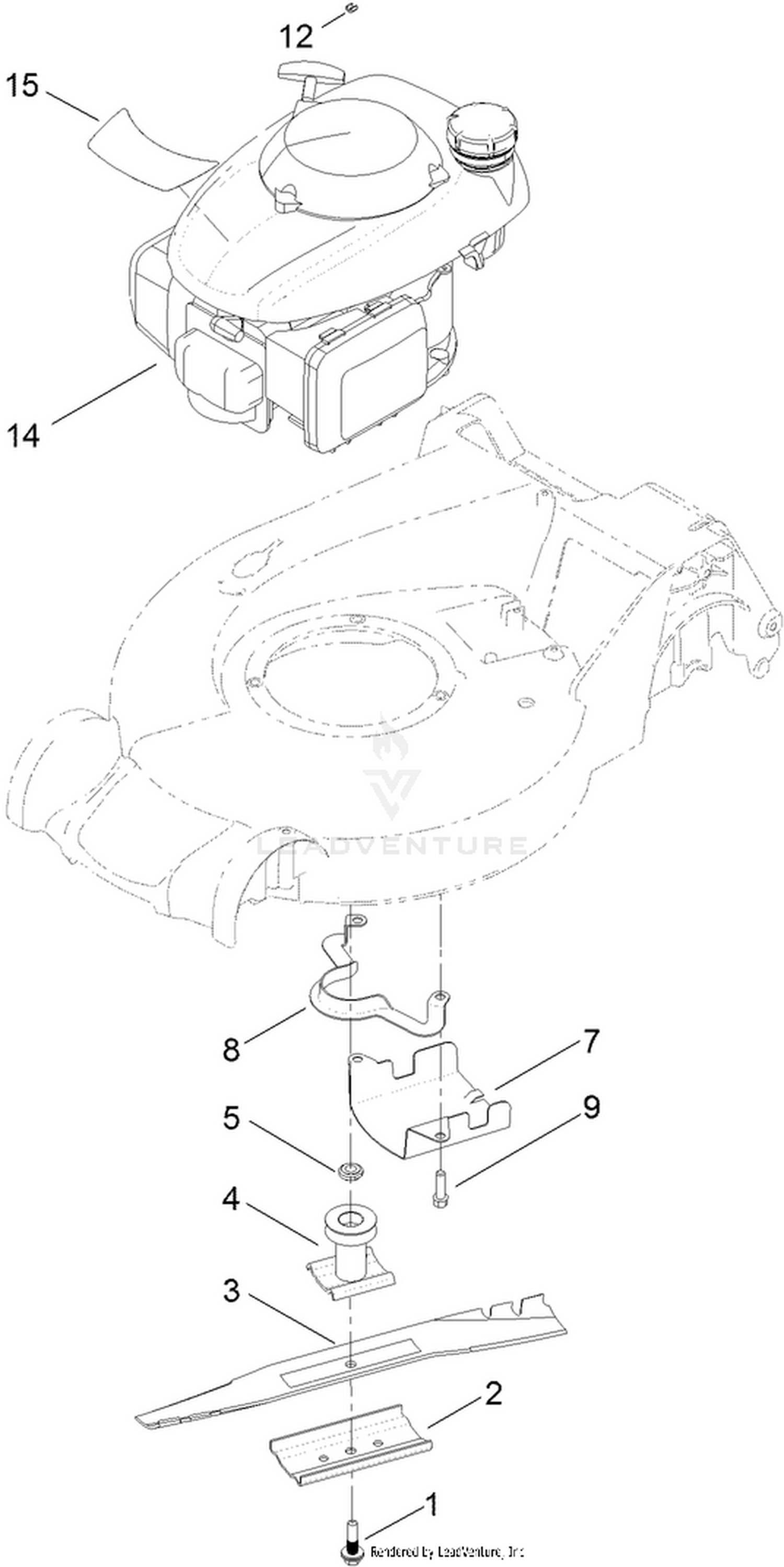

Engine and Blade Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-5695 | BOLT-BLADE, SEMS This part replaces 117-5270. Price: $3.19 |
| 2 | 108-3766-03 | SUPPORT-BLADE Price: $9.99 |
| 3 | 110-7080 | BLADE Price: Call Us |
| 4 | 114-2774 | DRIVER-BLADE Price: $32.99 |
| 5 | 106-3999 | SPACER-DRIVER Price: $3.19 |
| 7 | 107-7489-03 | SHIELD-GRASS Price: $15.99 |
| 8 | 108-8110-03 | GUIDE-BELT Price: $14.99 |
| 9 | 95-1727 | SCREW-TAPTITE This part replaces 92-1648. Price: $1.79 |
| 12 | 2210-316 | STOP-ROPE This part replaces 92-1701. Price: $6.49 |
