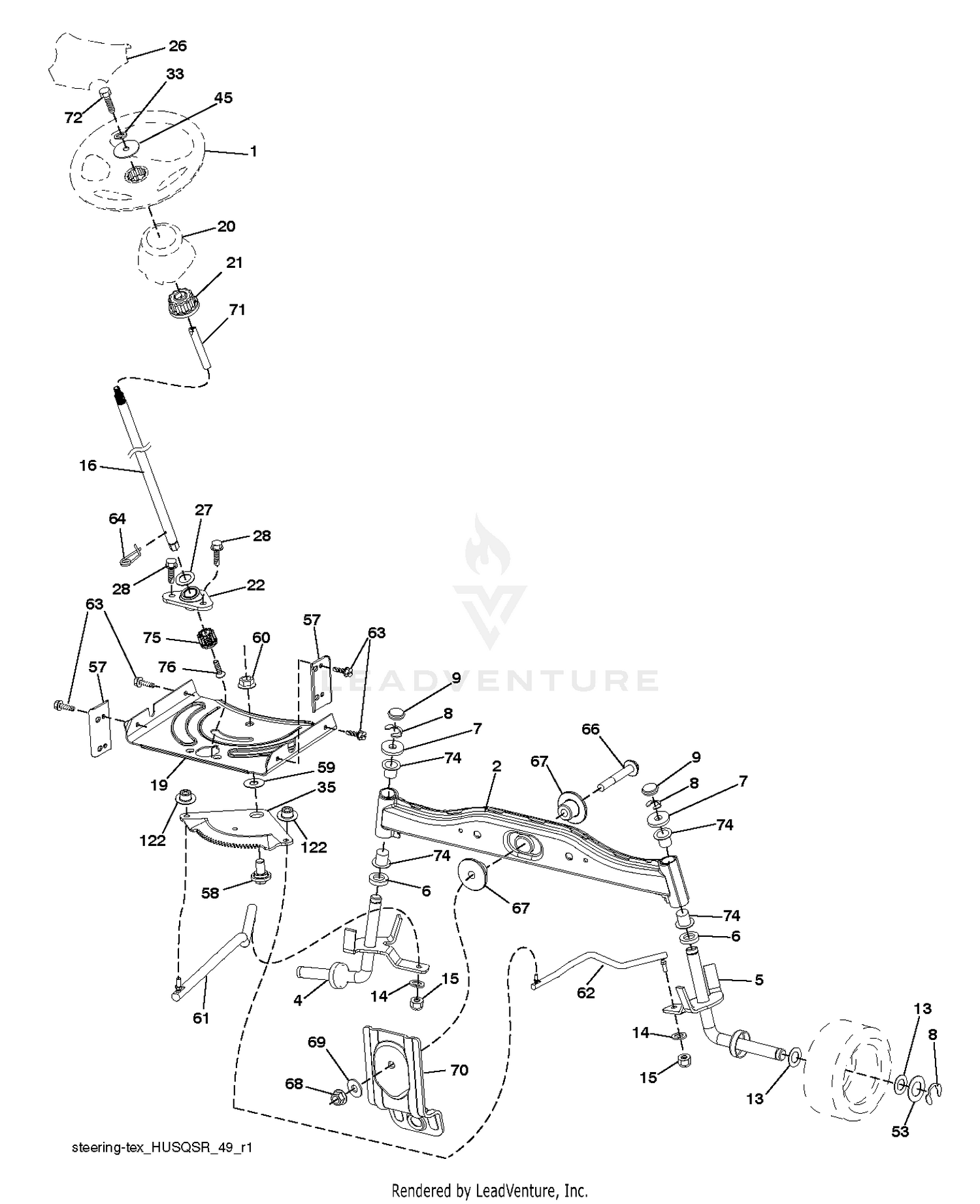

| Ref | Part Number | Description |
|---|
| 1 |
46-0330 |
NUT-LOCK Price: $0.60 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532418168. Price: $59.99 |
| 2 |
74-6520 |
FLAT WASHER Price: $0.93 |
| 3 |
94-3162 |
STUD This part replaces 74-6530. Price: $30.04 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 4 |
74-6540 |
TAPPET-VALVE Price: $41.87 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 5 |
74-6550 |
CUP Price: $4.84 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
74-6560 |
SPRING-VALVE Price: $14.26 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
74-6570 |
CUP-VALVE SPRING, LOWER Price: $3.36 |
| 8 |
74-6580 |
INSERT-VALVE (1.65MM) Price: $44.94 |
| 8 |
74-7220 |
INSERT-VALVE (3.925MM) Price: $11.14 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
74-7240 |
COLLAR-SPLIT Price: $5.39 |
| 10 |
74-7250 |
DISCONTINUED Price: Call Us |
| 11 |
74-7260 |
BOLT-HEAD Price: $17.07 |
| 12 |
74-7270 |
WASHER-FLAT Price: $3.60 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
74-7280 |
PLUG Price: $3.44 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
74-7840 |
PLUG Price: $2.02 |
| 15 |
2412-119 |
CLAMP-HOSE, WORM DRIVE Price: $1.83 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 585869202. Price: $44.99 |
| 17 |
3253-4 |
WASHER-LOCK This part replaces 68-9420. Price: $0.25 |
| 18 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 19 |
74-7340 |
DISCONTINUED Price: Call Us |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 20 |
74-7350 |
HOSE Price: $41.96 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 21 |
74-7360 |
COLLECTOR TUBE Price: $117.45 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 24 |
74-7390 |
DISCONTINUED Price: Call Us |
| 25 |
74-7400 |
TUBE Price: $46.54 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 26 |
74-7410 |
PLUG Price: $6.57 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 27 |
74-7420 |
BALL Price: $1.11 |
| 28 |
74-7430 |
CHAMBER-TURBULENCE Price: $119.14 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
74-7450 |
DISCONTINUED Price: Call Us |
| 30 |
74-7480 |
VALVE-INTAKE Price: $55.79 |
| 31 |
74-7470 |
EXHAUST VALVE Price: $85.90 |
| 32 |
74-7490 |
INTAKE VALVE SEAT Price: $29.47 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 33 |
74-7510 |
DISCONTINUED Price: Call Us |
| 34 |
74-7530 |
SEE BUL #03-02 Price: Call Us |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 35 |
74-7550 |
SCREW - CAP HEX HD Price: $0.66 |
| 36 |
74-7560 |
LOCKWASHER Price: $0.67 |
| 37 |
77-3890 |
BRACKET - HOOD STOP *B Price: $40.20 |
| 38 |
74-7580 |
PLATE Price: $14.96 |
| 39 |
74-7590 |
DISCONTINUED Price: Call Us |
| 40 |
74-7600 |
PLUG (BALL) Price: $6.93 |
| 41 |
92-7797 |
CYLINDER HEAD KIT This part replaces 74-7610. Price: $4,804.68 |
| 42 |
74-7620 |
PLUG Price: $26.15 |
| 43 |
74-7630 |
GASKET-COVER, VALVE Price: $30.06 |
| 44 |
74-7640 |
COVER-VALVE Price: $171.54 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 45 |
74-7650 |
WASHER-FLAT Price: $1.03 |
| 46 |
33113-025 |
SCREW-HH This part replaces 48-7640. Price: $1.97 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
