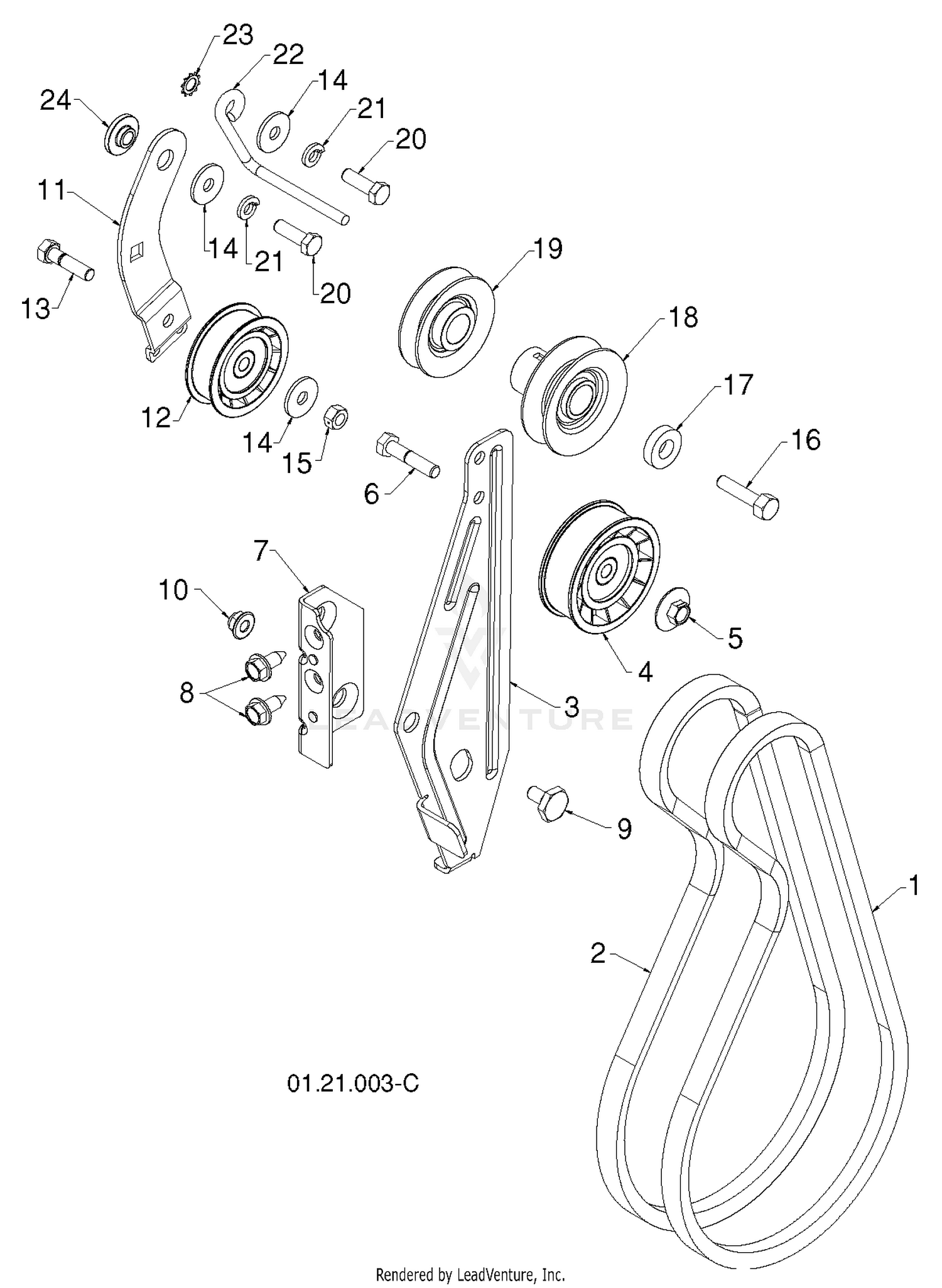

| Ref | Part Number | Description |
|---|
| 1 |
532408007 |
BELT.V.IMPELLER Price: $37.99 |
| 2 |
532419744 |
V-BELT TRACTION 34.25 Price: $29.99 |
| 3 |
584232402 |
ARM.IDLER BRAKE.CLEAR.ZINC This part replaces 532429271. Price: $12.99 |
| 4 |
594095301 |
Pulleys This part replaces 532180523. Price: $9.99 |
| 5 |
585802801 |
NUT.HEX.FL 5/16-18 TOP LCK BLK This part replaces 532426589. Price: $4.99 |
| 7 |
532423990 |
RP.BRACKET.IDLER.PIVOT.BLACK This part replaces 532429270. Price: $4.99 |
| 8 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 9 |
532424297 |
BOLT.SHOULDER.1/2X12 Price: $3.99 |
| 10 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 11 |
585238401 |
ARM.ASM.TRACTION.IDLER. This part replaces 532187786. Price: $27.99 |
| 12 |
532180522 |
PULLEY.W/SPACER.2.25 Price: $22.99 |
| 13 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 14 |
532059289 |
STEEL WASHER Price: $3.99 |
| 15 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 16 |
532851084 |
SCREW, HEX HD 3/8-24 X 1-3/8 Price: $2.50 |
| 17 |
532400026 |
WASHER, FLAT 3/8 Price: $7.99 |
| 18 |
532426491 |
PULLEY.IMPELER. Price: $14.99 |
| 19 |
532426490 |
PULLEY.ENG.TRACTION Price: $12.99 |
| 20 |
874610516 |
SCREW Price: $3.99 |
| 21 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 22 |
532155452 |
BELT.GUIDE.RH Price: $4.99 |
| 23 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 24 |
587343701 |
BUSHING.BRAKE.ARM This part replaces 532175331. Price: $5.99 |
