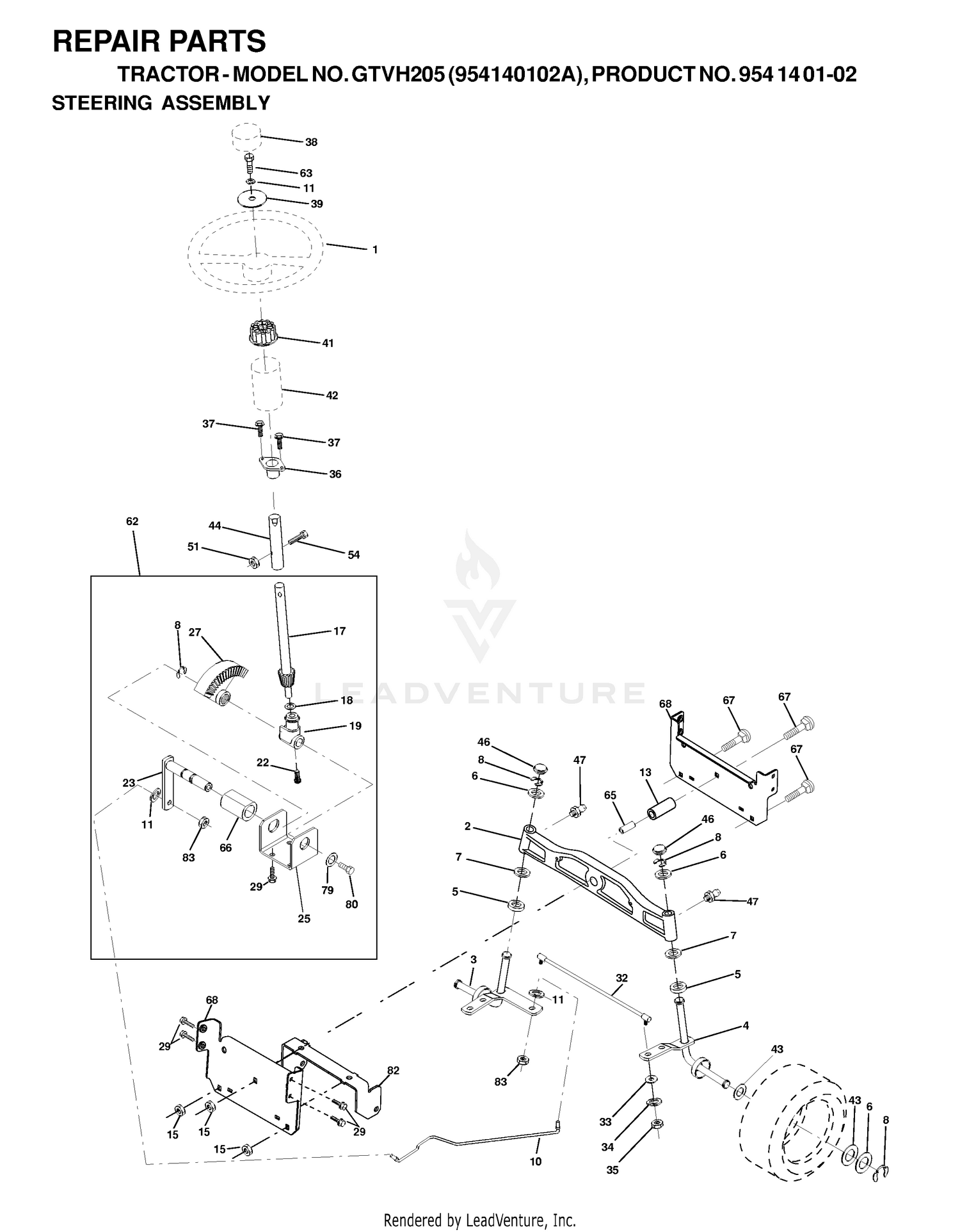

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532165854. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER This part replaces 532171039. Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
131-6557 |
ALTERNATOR ASM Price: $443.05 |
| 10 |
532169832 |
DRAGLINK.15".TIRES Price: $64.99 |
| 11 |
596238701 |
Washers This part replaces 532171029. Price: $3.99 |
| 12 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT Price: $8.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 23 |
531154301 |
SERVICE.KIT SHAFT ASSY SHAFT A This part replaces 532165851. Price: $22.99 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 32 |
532171888 |
TIE ROD This part replaces 532139929. Price: $59.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 40 |
98-7709 |
COLLAR Price: $8.79 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER This part replaces 532171038. Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532171024. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
107-0136 |
ROTOR ASM Price: $268.62 |
| 51 |
596040501 |
Hardware This part replaces 532171026. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 532171025. Price: $3.99 |
| 60 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532167902. Price: $119.99 |
| 63 |
596564401 |
Bolts This part replaces 532171031. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 70 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 80 |
98-7713 |
WASHER-THRUST Price: $4.49 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 90 |
107-0139 |
DRIVE END FRAME ASM Price: $446.71 |
| 100 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 110 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 120 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 130 |
133-2811 |
BEARING Price: $46.67 |
| 140 |
107-9087 |
FRAME-END Price: $183.56 |
| 150 |
107-0140 |
COVER-END Price: $34.95 |
| 160 |
98-7721 |
RECTIFIER ASM This part replaces 127-1612. Price: $486.45 |
| 170 |
98-7722 |
BUSHING-INSULATION Price: $28.44 |
| 180 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 190 |
98-7724 |
BRUSH Price: $12.41 |
| 200 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 230 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 240 |
98-7729 |
BOLT Price: $2.35 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7731 |
BOLT Price: $3.94 |
| 270 |
98-7732 |
NUT Price: $1.45 |
