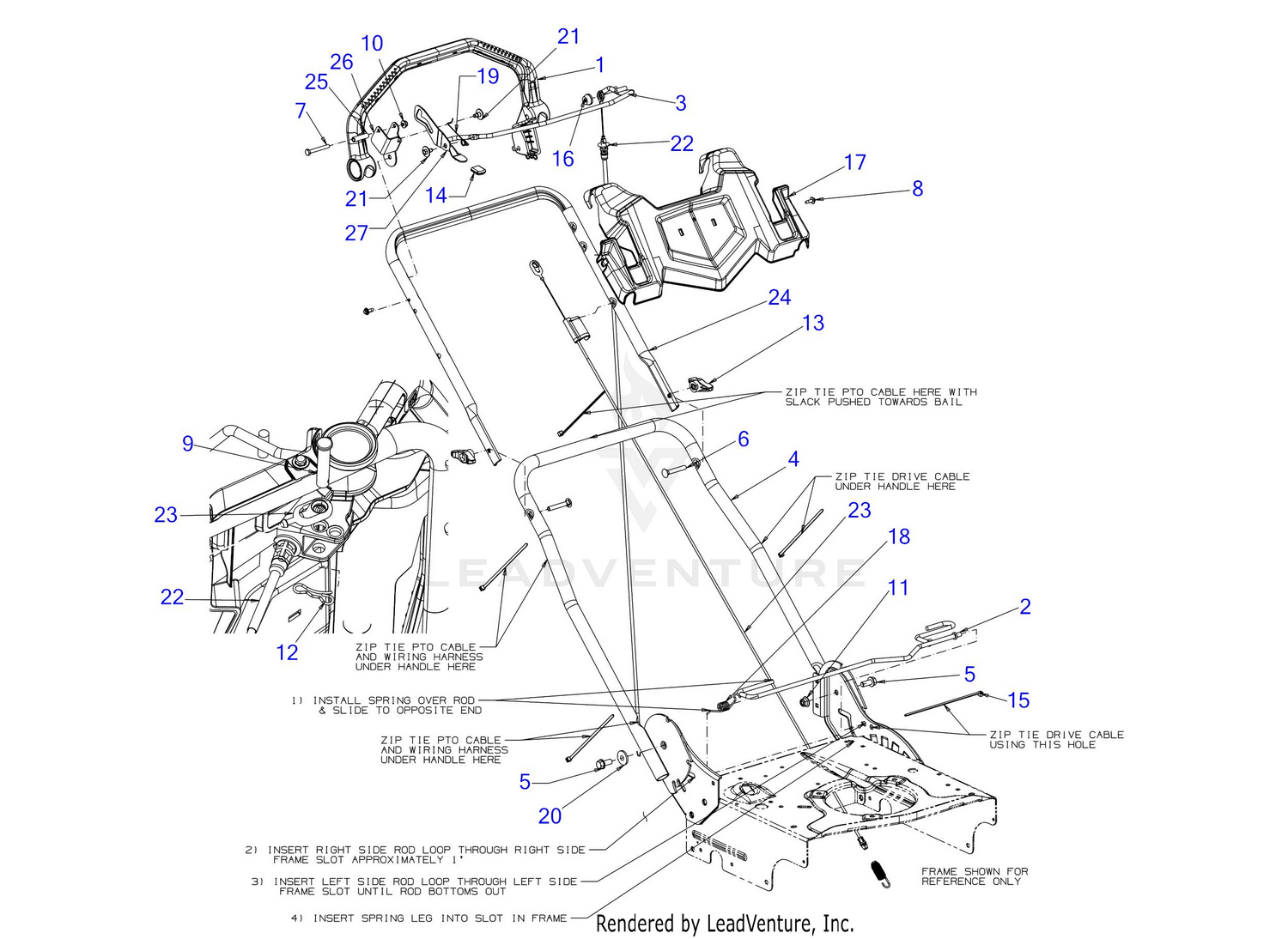

| Ref | Part Number | Description |
|---|
| 1 |
631-05389B |
DRIVE HANDLE ASSEMBLY (BLACK) Price: $66.25 |
| 2 |
647E05068A |
PIVOT HANDLE ROD Price: $33.97 |
| 4 |
649-05069B |
LOWER HANDLE This part replaces 649-05069A-0637. Price: $51.72 |
| 5 |
710-04482 |
SCREW 3/8-16 x .875 GR5 Price: $4.08 |
| 6 |
710-04532 |
CARRIAGE BOLT 5/16-18 x 2.00 GR5 Price: $5.50 |
| 7 |
710-0501 |
SCREW 1/4-20 x 2 GR5 Price: $6.24 |
| 8 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 9 |
711-04469A |
CLEVIS PIN 3/8 x 1.87 Price: $5.15 |
| 10 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 11 |
712-04065 |
NUT Price: $3.68 |
| 12 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 13 |
720-04124 |
WING KNOB 5/16-18 Price: $4.37 |
| 14 |
920-04173 |
GRIP Price: $3.70 |
| 16 |
726-05084 |
PUSH CAP 0.3125 Price: $3.61 |
| 17 |
931-11886 |
HANDLE CONSOLE Price: $42.00 |
| 18 |
732-05444 |
TORSION SPRING .48 x .177 Price: $5.48 |
| 19 |
732-05466B |
TORSION SPRING Price: $3.64 |
| 20 |
738-05191 |
SHOULDER SPACER .625 x .169 Price: $3.24 |
| 21 |
738-05215 |
SHOULDER SCREW Price: $3.64 |
| 22 |
946-05250 |
CONTROL CABLE Price: $52.16 |
| 23 |
946-05397 |
DRIVE CABLE Price: $51.93 |
| 24 |
749-05478A-0637 |
UPPER HANDLE Price: $38.23 |
| 25 |
750-04456 |
SPACER:.260 x .372 x 1.420 Price: $6.20 |
