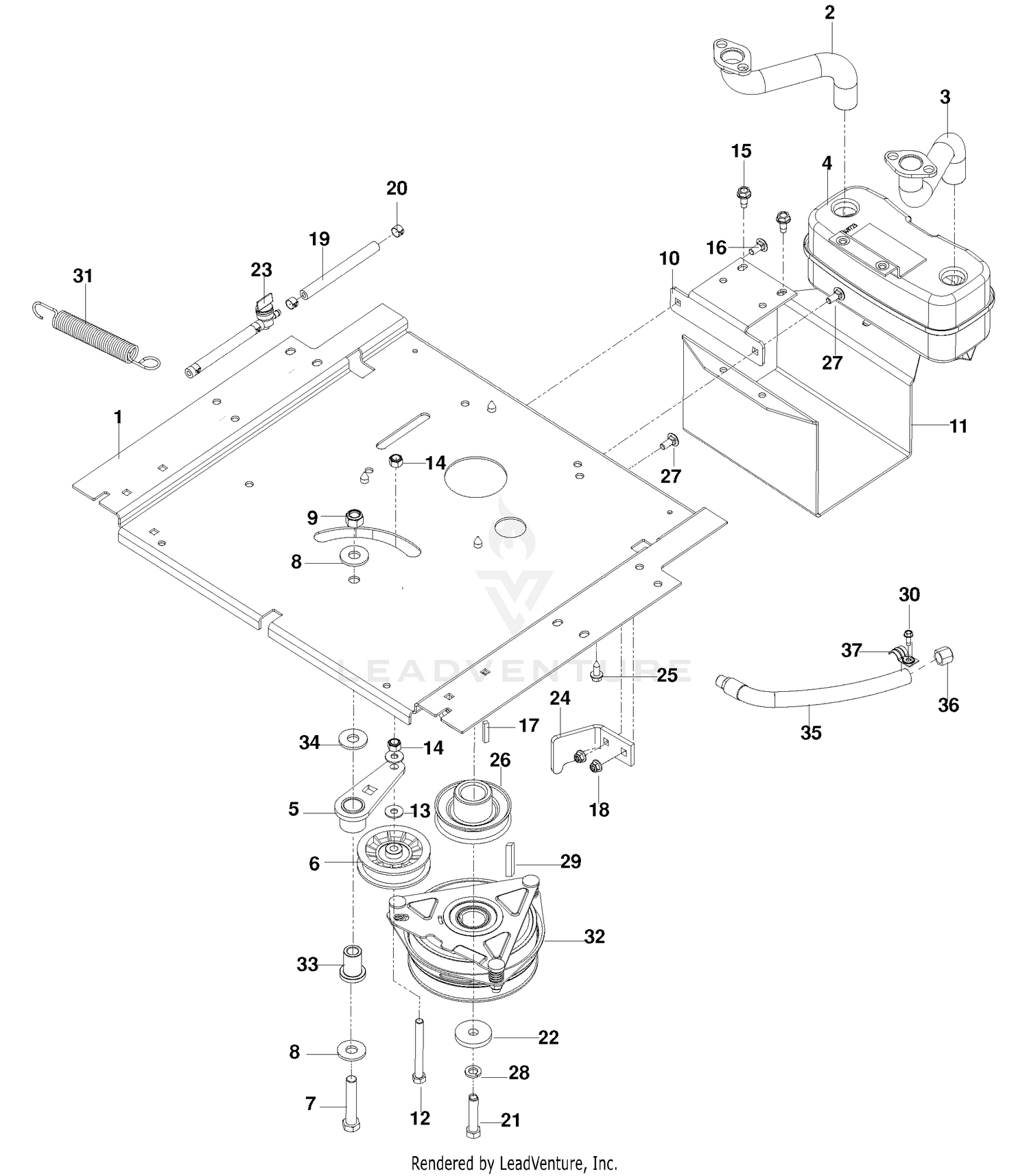

| Ref | Part Number | Description |
|---|
| 1 |
532448161 |
ENGINE PLATE RZ This part replaces 510172002. Price: $54.99 |
| 1 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 2 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 2 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7580. Price: $27.95 |
| 3 |
3218-5 |
NUT-JAM Price: $0.27 |
| 3 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 4 |
21-2850-01 |
MOUNT-PEDAL, RH This part replaces 21-2850. Price: $69.64 |
| 4 |
539131604 |
MUFFLER ASM TWIN Price: $39.99 |
| 5 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 5 |
583593901 |
ARM.IDLER This part replaces 539112092. Price: $11.99 |
| 6 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 6 |
531350601 |
PULLEY IDLER, BACKSIDE 3 INCH This part replaces 539110311. Price: $19.99 |
| 7 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 7 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 8 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 8 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 9 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 9 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 10 |
27-7660 |
DISCONTINUED Price: Call Us |
| 10 |
581886702 |
BRACKET MUFFLER MS431BLK This part replaces 510260402. Price: $19.99 |
| 11 |
233-17 |
KNOB Price: $10.58 |
| 11 |
510260502 |
GUARD, MUFFLER, BLACK Price: $54.99 |
| 12 |
539109389 |
HCS 3/8-16X3 1/2 GR5 Price: $4.99 |
| 12 |
66-6190 |
DECAL - PARKING BRAKE Price: $6.35 |
| 13 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 13 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 14 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 14 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 15 |
108-1380 |
LH BRAKE CABLE ASM This part replaces 21-3380. Price: $162.33 |
| 15 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 16 |
23-2270 |
BUSHING-RUBBER Price: $17.07 |
| 16 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 17 |
23-2240-03 |
PUMP CONTROL TUBE ASM This part replaces 23-2240. Price: $209.72 |
| 17 |
539912757 |
KEY, 1/4 SQ X 1 1/4 Price: $3.99 |
| 18 |
28-5190 |
DISCONTINUED Price: Call Us |
| 18 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 19 |
28-5130 |
TRACTION PEDAL PAD Price: $33.21 |
| 19 |
587044805 |
HOSE.1/4".LOW.PERM.FUEL.LN.5" This part replaces 539110425. Price: $2.99 |
| 20 |
28-5240 |
DISCONTINUED Price: Call Us |
| 20 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 21 |
539111990 |
HCS 7/16-20 X 2 G8 ZN Price: $2.99 |
| 22 |
28-5210 |
TRACT PEDAL SHAFT Price: $48.49 |
| 22 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
| 23 |
28-5160-01 |
DISCONTINUED This part replaces 28-5160. Price: Call Us |
| 23 |
539916325 |
FUEL VALVE Price: $9.99 |
| 24 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 24 |
522442502 |
STOP, CLUTCH OGURA BLK Price: $19.99 |
| 25 |
28-5220 |
FRICTION WHEEL ASM Price: $108.15 |
| 25 |
817120616 |
SCREW 3/8-16X1 This part replaces 532120616. Price: $4.99 |
| 26 |
525435001 |
PULLEY, C'SHAFT, 3.57 OP Price: $24.99 |
| 26 |
99-5686 |
RH SOCKET ASM This part replaces 21-0140. Price: $99.81 |
| 27 |
3220-5 |
NUT-JAM Price: $0.65 |
| 27 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 28 |
3217-7 |
NUT-HEX Price: $0.28 |
| 28 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 29 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 29 |
539910210 |
KEY 1/4 SQ X 2 Price: $4.99 |
| 30 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 30 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 31 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 31 |
547878302 |
SPRING BELT TENSIONER BLACK This part replaces 532196105. Price: $5.99 |
| 32 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 32 |
539113437 |
CLUTCH, 150 FT/LBS Price: $399.99 |
| 33 |
3274-47 |
SCREW-HSFH Price: $0.53 |
| 33 |
522432501 |
PIVOT, IDLER Price: $8.99 |
| 34 |
27-7590-01 |
BRAKE MT WA This part replaces 27-7590. Price: $239.14 |
| 34 |
539112670 |
HEAVY WASHER Price: $3.99 |
| 35 |
27-9270-01 |
PIVOT SHAFT MOUNT ASM This part replaces 27-9270. Price: $81.41 |
| 35 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 36 |
27-7640-01 |
SHAFT-BRAKE LATCH ASM This part replaces 27-7640. Price: $62.42 |
| 36 |
539101364 |
DRAIN CAP Price: $5.99 |
| 37 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 38 |
93-8743 |
FOOTPAD-TURN This part replaces 27-7570. Price: $27.95 |
| 39 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 40 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 41 |
27-7490 |
LH BRAKE PEDAL ASM Price: $347.33 |
| 42 |
27-7510 |
RH BRAKE PEDAL ASM Price: $321.91 |
| 43 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 44 |
302-5 |
FITTING-GREASE Price: $0.59 |
