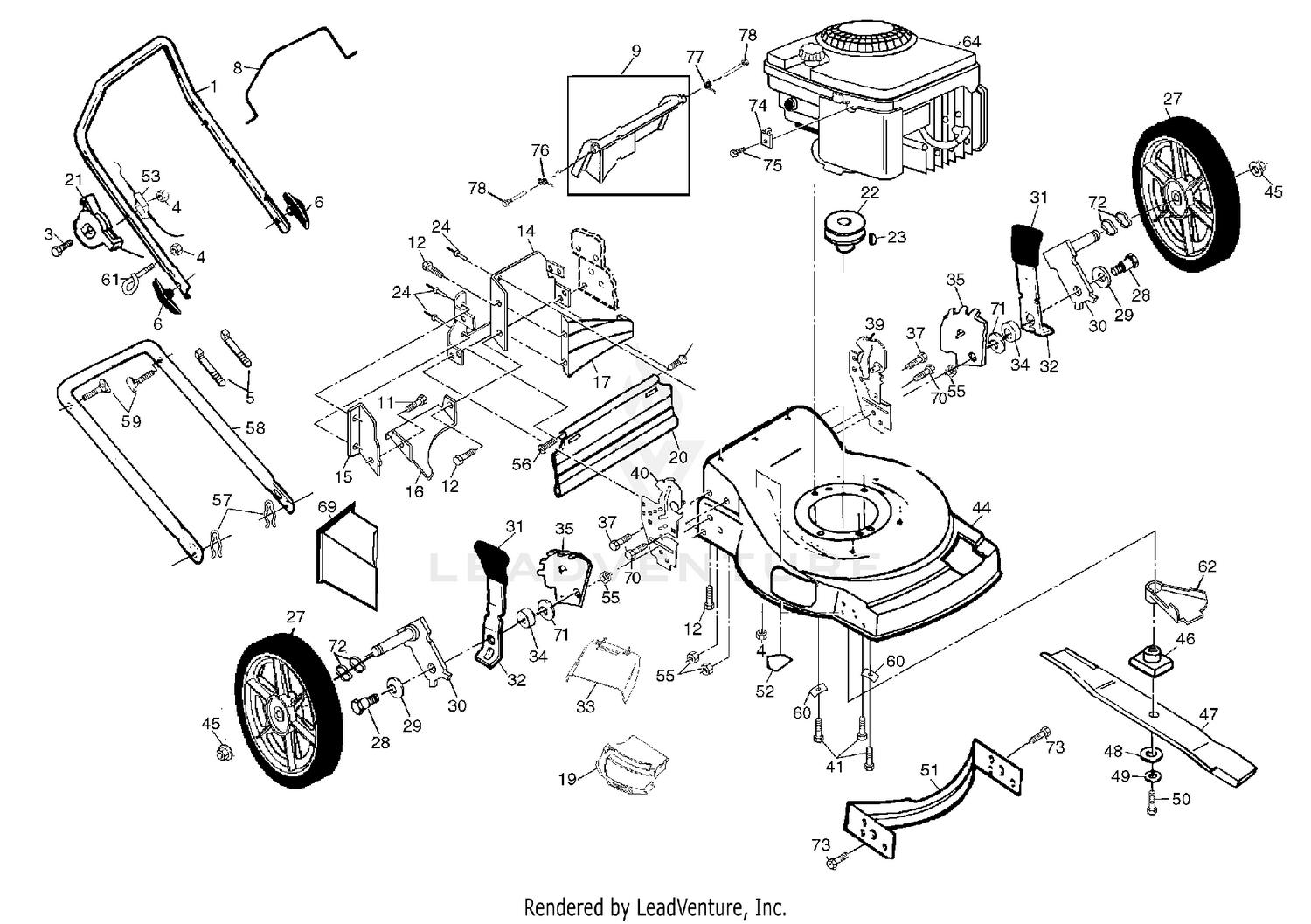

| Ref | Part Number | Description |
|---|
| 1 |
166862X479 |
Upper Handle Price: Call Us |
| 3 |
144929 |
Hex Washer Head Screw 1/4-20 x 2-1/8 Price: Call Us |
| 4 |
63601 |
Locknut 1/4-20 Price: Call Us |
| 5 |
664-26 |
Wire Tie Price: Call Us |
| 6 |
170146 |
Handle Knob Price: Call Us |
| 8 |
170287 |
Control Bar Price: Call Us |
| 9 |
170947 |
Rear Door Kit Price: Call Us |
| 11 |
150050 |
Self Tapping Screw #10-24 x 5/8 Price: Call Us |
| 12 |
54583 |
Hex Tapping Screw w/Sems 1/4-20 x 1/2 Price: Call Us |
| 14 |
156380X479 |
Back Plate Price: Call Us |
| 15 |
700365X479 |
Side Baffle Price: Call Us |
| 16 |
176655X479 |
Discharge Baffle Price: Call Us |
| 17 |
133040X479 |
Rear Baffle Price: Call Us |
| 19 |
148195 |
Combi-cut Door Price: Call Us |
| 20 |
140540 |
Rear Skirt Price: Call Us |
| 21 |
173489 |
Throttle Control Price: Call Us |
| 22 |
84596 |
Engine Pulley Price: Call Us |
| 23 |
87677 |
Hi-Pro Key #505 Price: Call Us |
| 24 |
128415 |
Pop Rivet Price: Call Us |
| 27 |
170258 |
Wheel Price: Call Us |
| 28 |
142748 |
Shoulder Bolt 3/8-16 x 1-3/8 Price: Call Us |
| 29 |
61651 |
Spring Washer Price: Call Us |
| 30 |
750913X004 |
Axle Arm Assembly Price: Call Us |
| 31 |
175478 |
Selector Knob (Extended) Price: Call Us |
| 32 |
170136X004 |
Selector Spring (Extended) Price: Call Us |
| 33 |
145285 |
Clip-on Discharge Deflector Price: Call Us |
| 34 |
146630 |
Spacer Price: Call Us |
| 35 |
700325X007 |
Wheel Adjusting Bracket Price: Call Us |
| 37 |
150078 |
Thread Cutting Screw w/Sems 5/16-18 x 3/4 Price: Call Us |
| 39 |
173571X479 |
Handle Bracket Assembly (Left) Price: Call Us |
| 40 |
173572X479 |
Handle Bracket Assembly (Right) Price: Call Us |
| 41 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 45 |
83923 |
Flanged Locknut 3/8-16 Price: Call Us |
| 46 |
851514 |
Blade Adapter Price: Call Us |
| 47 |
141114 |
Blade 22" Price: Call Us |
| 48 |
851074 |
Hardened Washer Price: Call Us |
| 49 |
850263 |
Helical Washer Price: Call Us |
| 50 |
851084 |
Hex Head Machine Screw 3/8-24 x 1-3/8 Gr. 8 Price: Call Us |
| 51 |
170557 |
Front Baffle Kit Price: Call Us |
| 52 |
107339X |
Danger Decal Price: Call Us |
| 53 |
130861 |
Cable Price: Call Us |
| 55 |
751592 |
Locknut 3/8-16 Price: Call Us |
| 56 |
88652 |
Hinge Screw 1/4-20 x 1-1/4 Price: Call Us |
| 57 |
51793 |
Hairpin Cotter Price: Call Us |
| 58 |
151721X479 |
Lower Handle Price: Call Us |
| 59 |
131959 |
Handle Bolt Price: Call Us |
| 60 |
851201X004 |
Washer Price: Call Us |
| 61 |
132001 |
Rope Guide Price: Call Us |
| 62 |
134612 |
Debris Shield Price: Call Us |
| 69 |
166649 |
Mulcher Plug Price: Call Us |
| 70 |
74760612 |
Bolt Price: Call Us |
| 71 |
88348 |
Washer Price: Call Us |
| 72 |
57143 |
Wave Washer Price: Call Us |
| 73 |
17600406 |
Screw Hx Serrated 1/4 x 20.TT Price: Call Us |
| 74 |
111190X |
Clamp Price: Call Us |
| 75 |
83816 |
Screw Price: Call Us |
| 76 |
165766 |
Spring LH Price: Call Us |
| 77 |
165767 |
Spring RH Price: Call Us |
| 78 |
165912 |
Door Bolt Price: Call Us |
| 78 |
172787 |
Operator's Manual (English) Price: Call Us |
| 78 |
172788 |
Operator's Manual (French) Price: Call Us |
