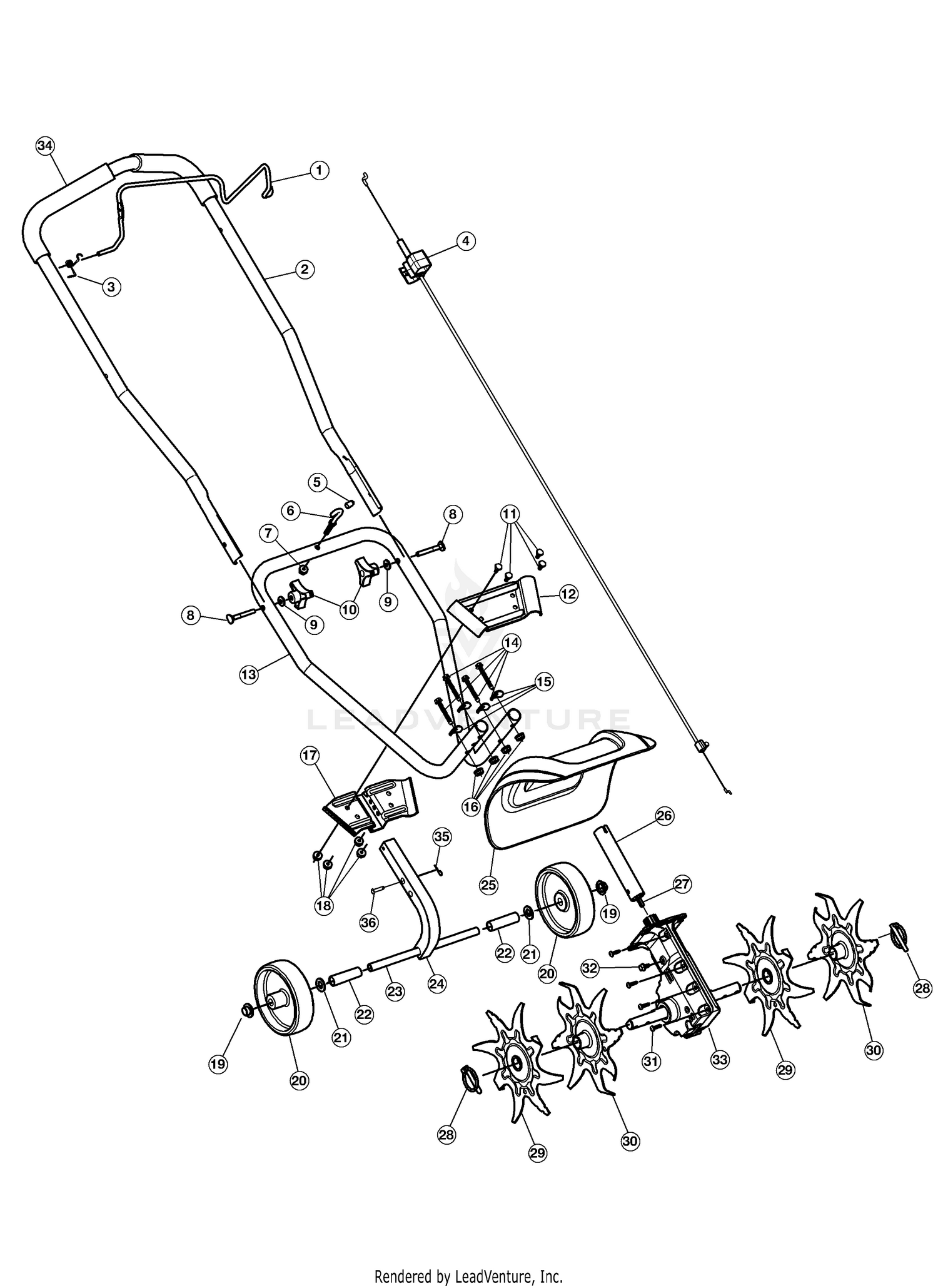

General Assembly
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 753-06808 | Throttle Price: $6.84 |
| 2 | 753-06319 | HANDLE UPR Not Available Price: |
| 3 | 753-05940 | Spring Price: $3.21 |
| 4 | 753-06831 | Throttle Cable Price: $10.27 |
| 5 | 735-04246 | Cap Price: $2.63 |
| 6 | 753-04190 | ROPE GUIDE Not Available Price: |
| 7 | 712-04064 | Nut Price: $3.64 |
| 8 | 791-182899 | Bolt Price: $6.82 |
| 9 | 736-0451 | Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 10 | 791-182677 | Knob Price: $12.48 |
| 11 | 710-3013 | Screw Price: $4.02 |
| 12 | 753-06813 | Bracket, Upper Price: $3.90 |
| 13 | 753-06809 | Handle Price: $21.71 |
| 14 | 710-1026 | Taptite Screw, 1/4-20:1.750 This part replaces 753-04202. Price: $5.94 |
| 15 | 736-0451 | Saddle Washer This part replaces 936-0451. Price: $3.75 |
| 16 | 912-3027 | Nut Price: $3.85 |
| 17 | 753-06814 | Bracket, Lower Price: $4.20 |
| 18 | 912-3027 | Nut Price: $3.85 |
| 19 | 726-0299 | Cap Price: $7.03 |
| 20 | 753-04437 | Wheel (Incl. 19) Price: $19.43 |
| 21 | 791-182910 | Washer Price: $6.59 |
| 22 | 753-06815 | Spacer Price: $2.83 |
| 23 | 753-06816 | Axle Price: $4.80 |
| 24 | 753-06817 | Tube, Square Price: $10.27 |
| 25 | 753-06810 | Shield Price: $15.85 |
| 26 | 753-06812 | Tube (Incl. 27) Price: $9.14 |
| 27 | 753-04499 | Flex Shaft Price: $26.32 |
| 28 | 753-04070 | Clip Price: $8.64 |
| 29 | 753-05987 | Tine (Left Inner, Right Outer) Price: $35.28 |
| 30 | 753-05986 | Tine (Left Outer, Right Inner) Price: $35.28 |
| 31 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 32 | 710-0599 | Screw Price: $3.86 |
| 33 | 753-06063 | Gearbox (Incl. 31) Price: $117.17 |
| 34 | 720-0294A | FOAM GRIP - 9" This part replaces 720-0294. Price: $6.41 |
| 35 | 714-0104 | Hairpin Clip This part replaces 914-0104. Price: $3.90 |
