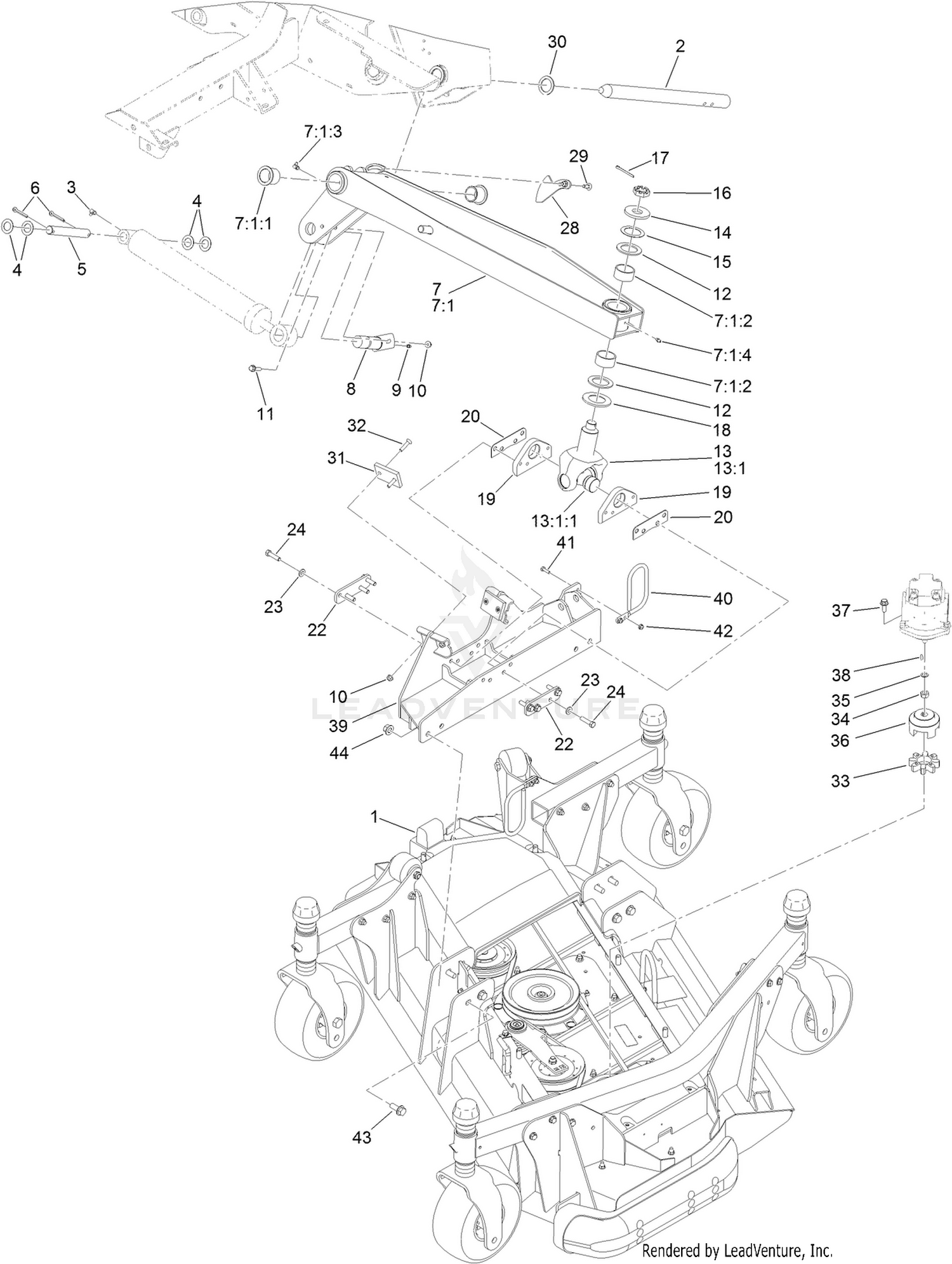

Left Hand Deck Connection Assembly
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 130-9270 | LEFT DECK ASM Price: Call Us |
| 2 | 121-3882 | SHAFT-PIVOT, LIFT ARM Price: $265.49 |
| 3 | 302-60 | FITTING-GREASE Price: $2.26 |
| 4 | 110-6767 | WASHER-THRUST Price: $1.10 |
| 5 | 110-6006 | PIN-CLEVIS Price: $31.49 |
| 6 | 3272-30 | PIN-COTTER Price: $0.47 |
| 7 | 138-6396 | LIFT ARM ASM, LH This part replaces 114-5660-01. Price: $1,117.43 |
| 8 | 125-1912 | PIN-PIVOT Price: $38.97 |
| 9 | 302-5 | FITTING-GREASE Price: $0.59 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 119-4036 | SCREW-HHF Price: $0.53 |
| 12 | 104-0721 | WASHER-THRUST Price: $4.00 |
| 13 | 114-5640-03 | JOINT YOKE ASM Price: $448.74 |
| 14 | 104-0719 | WASHER-HARDENED Price: $9.34 |
| 15 | 114-5641 | WASHER-THRUST Price: $12.21 |
| 16 | 99-3139 | NUT Price: $16.11 |
| 17 | 3272-25 | PIN-COTTER Price: $0.89 |
| 18 | 104-0720 | SPACER Price: $35.75 |
| 19 | 115-8870-03 | MOUNT-BASE Price: $108.66 |
| 20 | 104-0731 | SHIM Price: $4.64 |
| 22 | 117-9419 | PLATE-SPACER Price: $12.61 |
| 23 | 100-4852 | WASHER-HARDENED Price: $4.63 |
| 28 | 112-7339 | PLATE-SENSING Price: $13.24 |
| 29 | 3230-16 | SCREW-CARR Price: $1.79 |
| 30 | 98-1452 | WASHER-THRUST Price: $0.94 |
| 31 | 69-9290 | PAD-BUMPER Price: $9.52 |
| 32 | 32108-107 | SCREW-FH Price: $1.02 |
| 33 | 104-3542 | SPIDER Price: $67.38 |
| 34 | 110-8815 | NUT-HEX Price: $1.90 |
| 35 | 112-6957 | WASHER-HARDENED Price: $1.37 |
| 36 | 104-3541 | HUB-SPIDER Price: $130.30 |
| 37 | 3234-42 | SCREW-HHF Price: $1.10 |
| 38 | 3257-3 | KEY-WOODRUFF Price: $0.99 |
| 39 | 131-6013-01 | CONNECTION-DECK, LH Price: $476.65 |
| 40 | 130-9161 | SUPPORT-HOSE Price: $41.94 |
| 41 | 321-5 | SCREW-HH Price: $0.22 |
| 42 | 104-7201 | NUT-HF Price: $0.69 |
| 43 | 3234-38 | SCREW-HHF Price: $3.33 |
