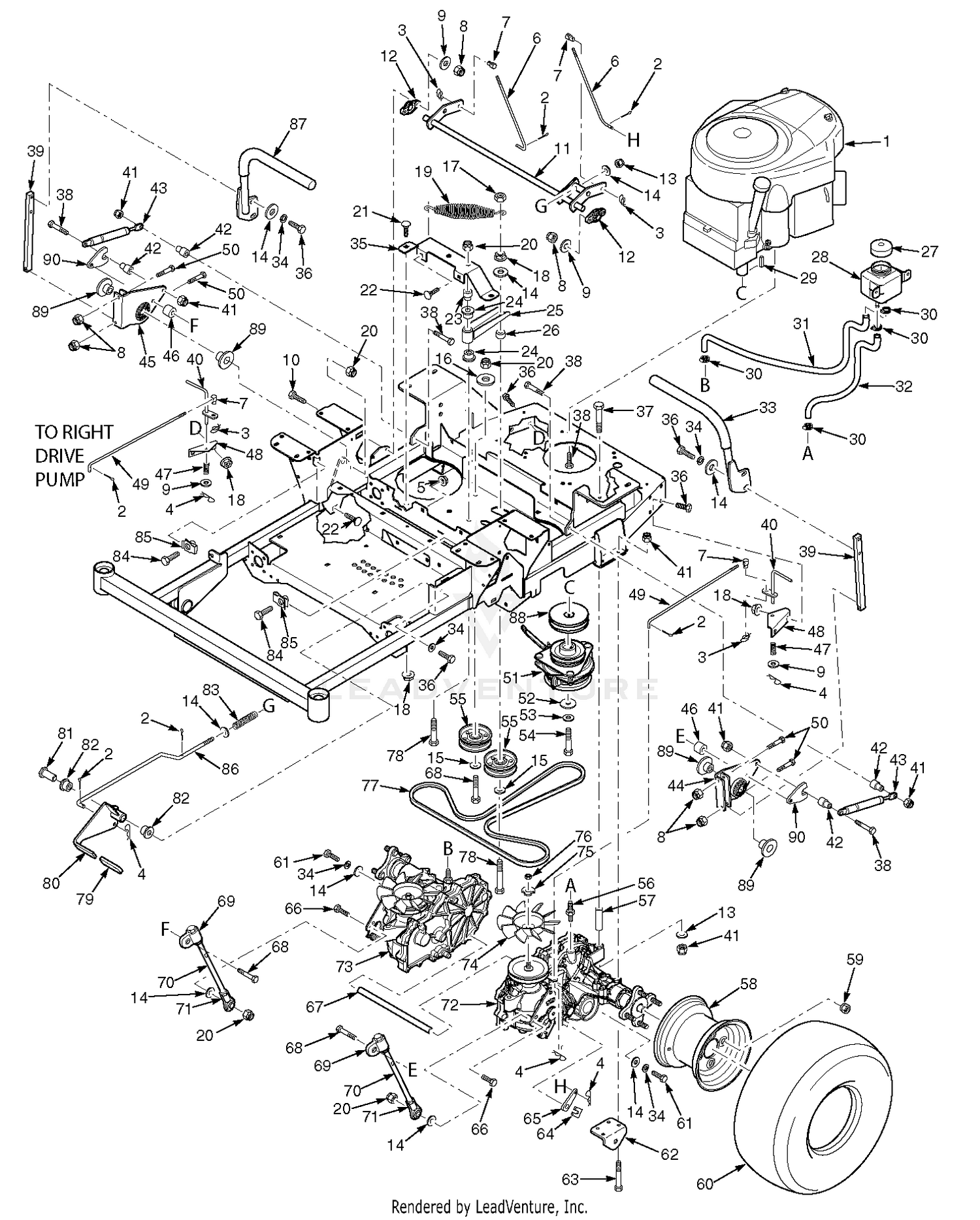

| Ref | Part Number | Description |
|---|
| 1 |
484223 |
Engine, Briggs & Stratton Pro-Series Price: Call Us |
| 1 |
484418 |
Engine, Kawasaki FS600V Price: Call Us |
| 2 |
04061-01 |
Cotter Pin, 3/32 x 1" Price: Call Us |
| 3 |
04069-01 |
Pin, Rue Cotter 3/8" Dia. Price: Call Us |
| 4 |
04062-02 |
Hair Pin, .080 x 1.19" Price: Call Us |
| 5 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 6 |
44165 |
Rod, Brake Adjustment Price: Call Us |
| 7 |
43726 |
Joint, Swivel Price: Call Us |
| 8 |
04021-08 |
Nut, Elastic Stop 1/4-20 Price: Call Us |
| 9 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 10 |
04017-07 |
Bolt, Serrated Flange 1/4-20 x 1-1/4" Price: Call Us |
| 11 |
451884 |
Weldment, Brake Lever Price: Call Us |
| 12 |
483504 |
Bearing Price: Call Us |
| 13 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 Price: Call Us |
| 14 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 15 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 HD Price: Call Us |
| 16 |
04041-11 |
Flatwasher, 3/8-.406 x 1.5 x 7 GA. Price: Call Us |
| 17 |
04021-05 |
Nut, Center Lock 3/8-16 Price: Call Us |
| 18 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 19 |
483087 |
Spring, Transmission Idler Price: Call Us |
| 20 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 21 |
04003-31 |
Bolt, Carriage 3/8-16 x 3/4" Price: Call Us |
| 22 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 23 |
43715 |
Shaft Pivot, Idler Arm Price: Call Us |
| 24 |
483453-04 |
Bearing Price: Call Us |
| 25 |
463047 |
IDLER ARM ASSY W/ SPACERS This part replaces 462122. Price: Call Us |
| 26 |
43720 |
Spacer, Idler Pulley Price: Call Us |
| 27 |
483514 |
Cap Price: Call Us |
| 28 |
483438 |
Reservoir Assembly Price: Call Us |
| 29 |
04063-31 |
Key, 1/4 x 1/4 x 1-3/4" Price: Call Us |
| 30 |
48136-05 |
Clamp, 0.87" Max Dia. Price: Call Us |
| 31 |
483431 |
Hose, RH Transmission Price: Call Us |
| 32 |
483432 |
Hose, LH Transmission Price: Call Us |
| 33 |
462433 |
Handle Bar Assembly LH, w/Grip Price: Call Us |
| 33 |
484376 |
Grip Price: Call Us |
| 34 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 35 |
424476 |
Support, Idler Arm Price: Call Us |
| 36 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 37 |
04001-95 |
Bolt, Hex Head 5/16-18 x 5" Price: Call Us |
| 38 |
04001-11 |
Bolt, Hex Head 5/16-18 x 1-1/2" Price: Call Us |
| 39 |
424498 |
Bar, Control Lever Price: Call Us |
| 40 |
451912 |
Dump Valve Lever Price: Call Us |
| 41 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 42 |
43602 |
Spacer, Pump Dampener Price: Call Us |
| 43 |
484193 |
Damper, Steering This part replaces 482794. Price: Call Us |
| 44 |
462127 |
Control Link, LH Price: Call Us |
| 45 |
462128 |
Control Link, RH Price: Call Us |
| 46 |
43674 |
Spacer Price: Call Us |
| 47 |
482070 |
Spring Price: Call Us |
| 48 |
424639 |
Bracket, Dump Mounting Price: Call Us |
| 49 |
44162 |
Linkage, Dump Valve Price: Call Us |
| 50 |
04001-04 |
Bolt, Hex Head 1/4-20 x 1-1/2" Price: Call Us |
| 51 |
462610 |
Electric Clutch Assembly This part replaces 462012. Price: Call Us |
| 52 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 Price: Call Us |
| 53 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 54 |
04102-03 |
Bolt, Hex Head 7/16-20 x 2-1/4" Patch Price: Call Us |
| 55 |
486045 |
Pulley, 3-1/2" Dia. This part replaces 483638. Price: Call Us |
| 56 |
482800-04 |
Fitting, Transmission Price: Call Us |
| 57 |
43700 |
Spacer, Axle Price: Call Us |
| 58 |
481868 |
Rim w/Valve Stem Price: Call Us |
| 59 |
04028-02 |
Wheel Nut, 1/2-20 Price: Call Us |
| 60 |
483389 |
Tire, 20 x 10-8 2-Ply Price: Call Us |
| 60 |
483390 |
Wheel Assembly Price: Call Us |
| 61 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 62 |
424489 |
Bracket, Pusharm Link Price: Call Us |
| 63 |
04001-49 |
Bolt, Hex Head 5/16-18 x 3" Price: Call Us |
| 64 |
HG51190 |
Clip, Brake Lever (order through Hydro-Gear) Price: Call Us |
| 65 |
HG52639 |
Lever, Brake (order through Hydro-Gear) Price: Call Us |
| 66 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 67 |
43701 |
Spacer, Axle Price: Call Us |
| 68 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 69 |
04020-25 |
Nut, Jam 3/8-24 UNF RH Price: Call Us |
| 69 |
483563 |
Rod End, Adjustable Price: Call Us |
| 70 |
483574 |
Linkage, Pump Price: Call Us |
| 71 |
483575 |
Stake, Rod End Assembly Price: Call Us |
| 72 |
484449 |
Transaxle Assy., (ZL-KCEF-3LKG-1NXX) Price: Call Us |
| 73 |
484450 |
Transaxle Assy., (ZL-GCEF-3LKF-1NXX) Price: Call Us |
| 74 |
HG53823 |
Fan (order through Hydro-Gear) Price: Call Us |
| 75 |
424687 |
Nut, Control Linkage Price: Call Us |
| 76 |
HG44133 |
Fan Nut (order through Hydro-Gear) Price: Call Us |
| 77 |
483314 |
Belt, Transmission Drive Price: Call Us |
| 78 |
04001-54 |
Bolt, Hex Head 3/8-16 x 3" Price: Call Us |
| 79 |
482102 |
Grip, Brake Handle Price: Call Us |
| 80 |
462010 |
Brake Handle Assembly Price: Call Us |
| 81 |
43722 |
Spacer, Brake Handle Price: Call Us |
| 82 |
483453-05 |
Bearing Price: Call Us |
| 83 |
483538 |
Spring, Brake Price: Call Us |
| 84 |
04107-01 |
Bolt, Hex Head 3/8-16 x 1-1/4" Special Lock Price: Call Us |
| 85 |
04110-03 |
U-Nut, 3/8-16 Price: Call Us |
| 86 |
44157 |
Rod, Brake Linkage Price: Call Us |
| 87 |
462434 |
Handle Bar Assembly RH, w/Grip Price: Call Us |
| 87 |
484376 |
Grip Price: Call Us |
| 88 |
486010 |
Pulley, 4-1/2" Dia. 1" Bore This part replaces 483320. Price: Call Us |
