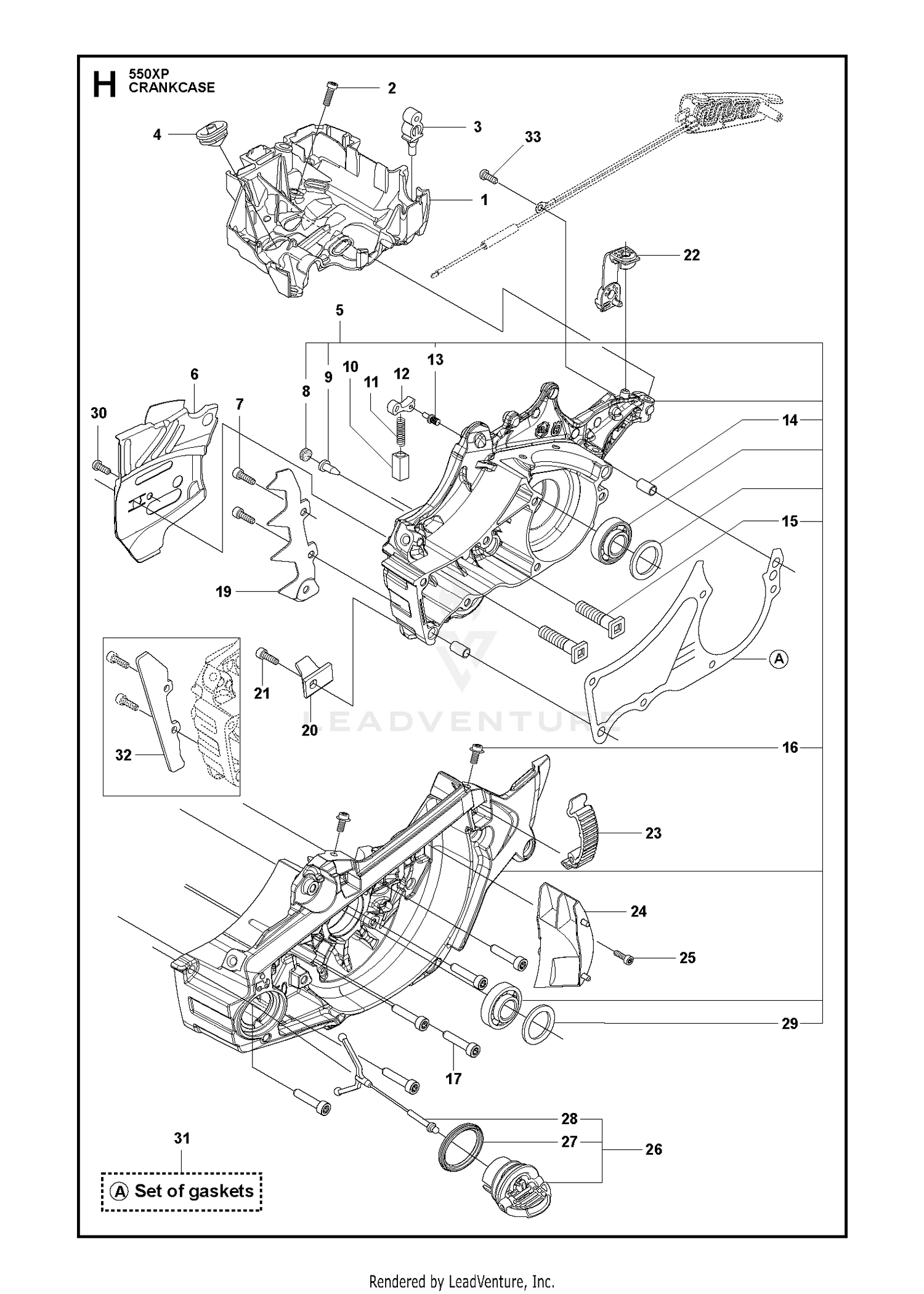

| Ref | Part Number | Description |
|---|
| 1 |
525403201 |
CARBURETTOR AREA BASE Price: $22.99 |
| 2 |
525755202 |
SCREW ITXSCFM Price: $3.99 |
| 3 |
597909701 |
DAMPNER This part replaces 503869301. Price: $5.99 |
| 4 |
581559201 |
GROMMET Price: $5.99 |
| 5 |
577834713 |
CRANKCASE ASSY Price: $279.99 |
| 6 |
522742801 |
CHAIN GUIDE PLATE Price: $11.99 |
| 7 |
575793501 |
SCREW ITXPANM M5X16 T27 10.9 Price: $3.99 |
| 8 |
537403502 |
SINTERED BRONZE FILTER This part replaces 537403501. Price: $2.99 |
| 9 |
530026119 |
VALVE-CHECK (DUCKBILL) Price: $4.99 |
| 10 |
537210701 |
GUIDE Price: $3.99 |
| 11 |
503436501 |
LOCK SPRING Price: $3.99 |
| 12 |
505201201 |
CATCH Price: $4.99 |
| 13 |
503751801 |
PIN Price: $3.99 |
| 14 |
593806001 |
GUIDE BUSHING This part replaces 501270801. Price: $4.99 |
| 15 |
505217301 |
BAR BOLT Price: $4.99 |
| 16 |
525824401 |
SCREW ITXSCM WASHER M5X12 T27 Price: $2.99 |
| 17 |
575841104 |
SCREW ITXSCM M5X25 12.9 TBO T Price: $2.99 |
| 19 |
578400501 |
SPIKE Price: $6.99 |
| 20 |
537377902 |
CHAIN CATCHER Price: $6.99 |
| 22 |
505125801 |
DEFLECTION LIMITER Price: $5.99 |
| 23 |
503894703 |
CLIP GRAY Price: $9.99 |
| 24 |
588059201 |
AIR NOZZLE Price: $5.99 |
| 25 |
526818101 |
SCREW ITXSCM M4X15 T27 12.9 T Price: $2.99 |
| 26 |
577878603 |
TANK CAP ASSY Price: $9.99 |
| 27 |
589241301 |
GASKET TANK CAP Price: $4.99 |
| 28 |
503578901 |
TANK LOCK Price: $4.99 |
| 29 |
525391201 |
RADIAL SEAL Price: $14.99 |
| 30 |
503212813 |
SCREW This part replaces 525887401. Price: $2.99 |
| 32 |
577887201 |
BUMPER, BAG Price: $22.99 |
| 33 |
526221801 |
SCREW Price: $2.99 |
