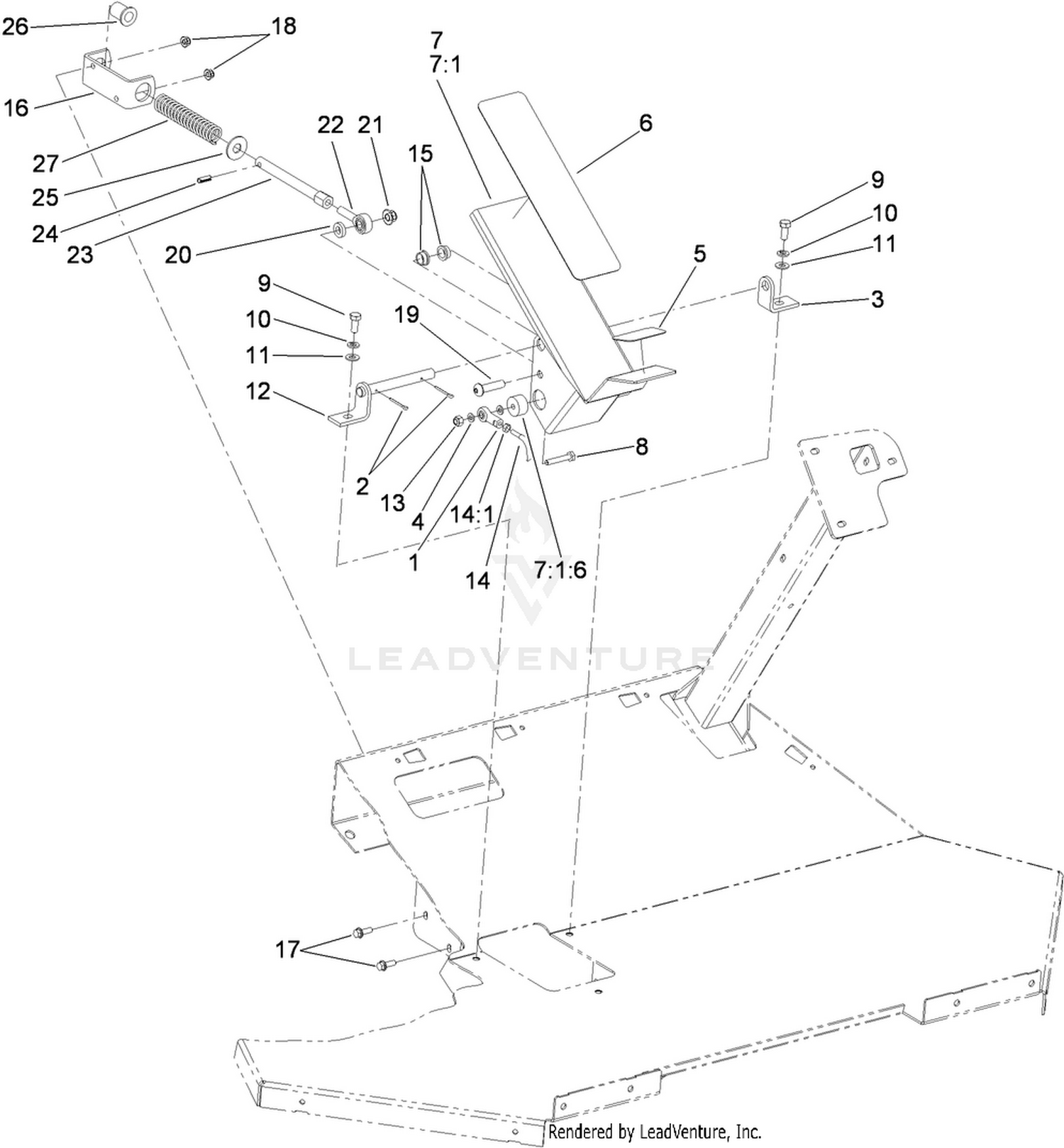

| Ref | Part Number | Description |
|---|
| 1 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 2 |
3272-7 |
PIN-COTTER Price: $0.25 |
| 3 |
92-0450-03 |
BRACKET-PIN Price: $19.10 |
| 4 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 5 |
71-0450 |
ABRASIVE-PEDAL, REAR Price: $10.39 |
| 6 |
71-0440 |
ABRASIVE-PEDAL Price: $15.80 |
| 7 |
106-5247-03 |
TRACTION PEDAL ASM Price: $244.19 |
| 8 |
321-9 |
SCREW-HH Price: $0.27 |
| 9 |
322-3 |
SCREW-HH Price: $0.79 |
| 10 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 11 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 12 |
92-0448 |
PIN-PIVOT Price: $100.36 |
| 13 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 14 |
106-5233 |
CABLE-TRACTION Price: $132.81 |
| 15 |
256-156 |
BUSHING-FLANGE Price: $12.99 |
| 16 |
92-7608-03 |
BRACKET-SPRING This part replaces 92-7608. Price: $16.86 |
| 17 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 18 |
104-7201 |
NUT-HF Price: $0.69 |
| 19 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 20 |
80-7730 |
SPACER Price: $1.97 |
| 21 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 22 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 23 |
92-7609 |
SHAFT-SPRING Price: $62.79 |
| 24 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 26 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
