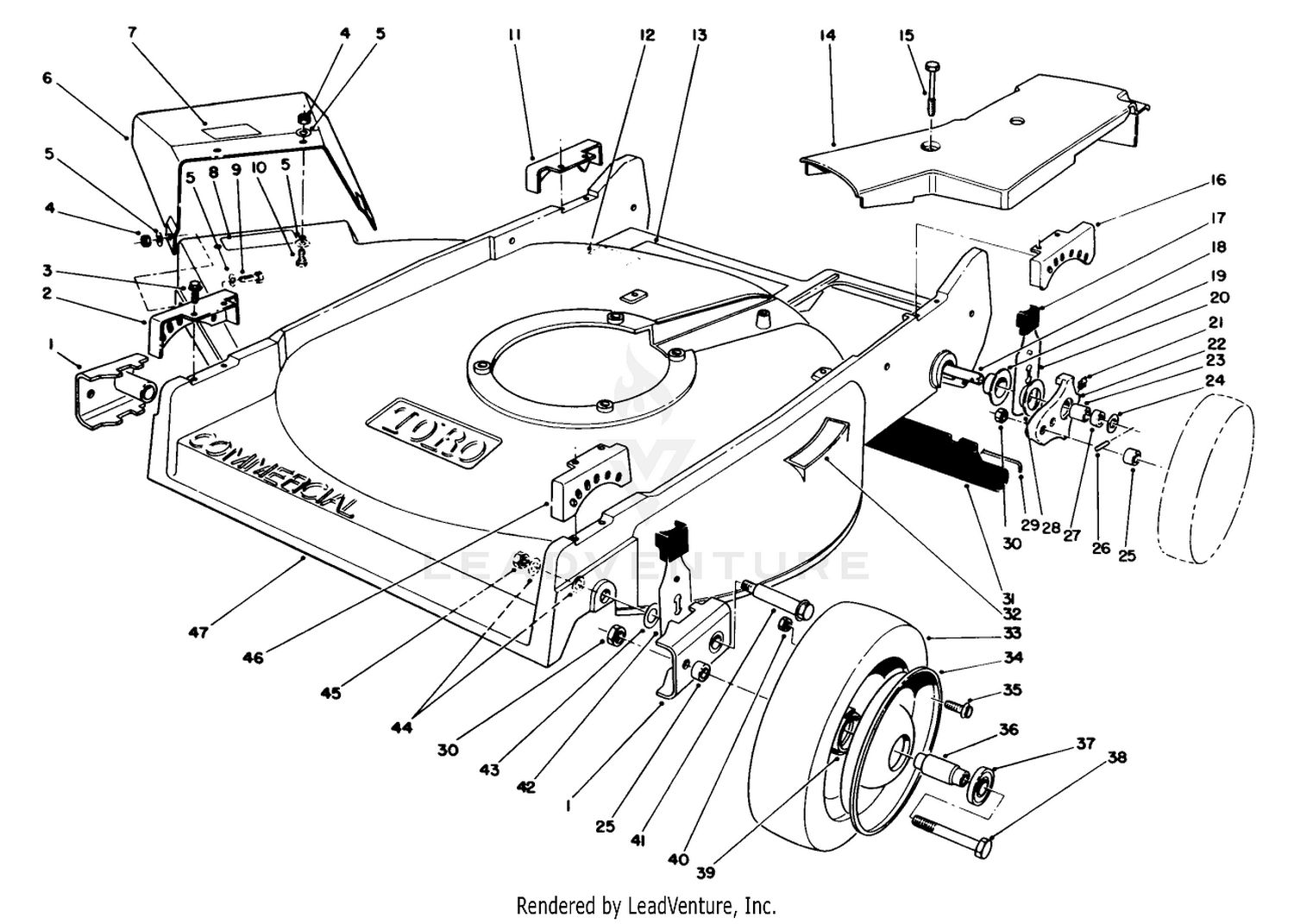

| Ref | Part Number | Description |
|---|
| 1 |
61-8300 |
ARM-PIVOT, FRONT Price: $27.99 |
| 2 |
49-8770 |
QUADRANT-FRONT, RH Price: $25.99 |
| 3 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 4 |
329642 |
Nut Price: Call Us |
| 5 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 6 |
66-7040 |
DISCONTINUED Price: Call Us |
| 7 |
93-6667 |
DECAL-WARNING This part replaces 62-3860. Price: $11.47 |
| 8 |
66-7360 |
DISCONTINUED Price: Call Us |
| 9 |
321-6 |
SCREW-HH Price: $0.25 |
| 10 |
321-4 |
SCREW-HH Price: $0.99 |
| 11 |
49-8750 |
QUADRANT-REAR, RH Price: $25.99 |
| 12 |
40-2850 |
DISCONTINUED Price: Call Us |
| 13 |
93-6657 |
DECAL-DANGER This part replaces 66-5100. Price: $22.12 |
| 14 |
63-9441 |
COVER-BELT Price: $49.99 |
| 15 |
37-7260 |
SCREW-HWH Price: $5.09 |
| 16 |
49-8740 |
QUADRANT-REAR, LH Price: $25.99 |
| 17 |
25-7740 |
KNOB-ARM Price: $4.59 |
| 18 |
49-8790 |
SHAFT-AXLE, REAR Price: $50.99 |
| 19 |
48-2170 |
CAP-END Price: $9.99 |
| 20 |
66-7561 |
REAR SPRING ARM ASM Price: $18.99 |
| 21 |
302-56 |
FITTING-GREASE Price: $3.69 |
| 22 |
42-3510 |
PIVOT ARM ASM Price: $49.99 |
| 23 |
47-2900 |
BUSHING Price: $5.49 |
| 24 |
36-4780 |
WASHER-PLAIN Price: $6.59 |
| 25 |
52-2480 |
SPACER-WHEEL Price: $5.89 |
| 26 |
32121-108 |
PIN-SPIROL Price: $6.09 |
| 27 |
47-2890 |
BUSHING Price: $3.19 |
| 28 |
36-4770 |
WASHER Price: $4.79 |
| 29 |
33-3208 |
ROD-SHIELD Price: $13.99 |
| 30 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 31 |
112-9989 |
SHIELD-TRAILING This part replaces 44-0580. Price: $26.99 |
| 32 |
62-3950 |
DECAL - STEP PAD INT'L Price: $2.50 |
| 33 |
53-7740 |
TIRE Price: $37.99 |
| 34 |
121-1365-06 |
RIM-HALF, WHEEL This part replaces 53-7780. Price: $16.99 |
| 35 |
3234-26 |
SCREW-HHF Price: $2.69 |
| 36 |
52-2440 |
SPACER-BEARING Price: $9.99 |
| 37 |
52-2450 |
BEARING-WHEEL Price: $17.99 |
| 38 |
323-12 |
SCREW-HH Price: $1.14 |
| 39 |
52-2410 |
HUB-BEARING Price: $31.99 |
| 40 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 41 |
27-6231 |
WHEEL BOLT Price: $4.49 |
| 42 |
66-7560 |
FRONT SPRING ARM ASM Price: $12.99 |
| 43 |
257-3 |
WASHER-THRUST Price: $14.99 |
| 44 |
40-1940 |
WASHER Price: $1.59 |
| 45 |
32153-11 |
NUT-LOCK This part replaces 52-3620. Price: $3.99 |
| 46 |
49-8760 |
QUADRANT-FRONT, LH Price: $25.99 |
| 47 |
16-9119 |
HOUSING W/DECAL This part replaces 13-0409. Price: $2,023.95 |
