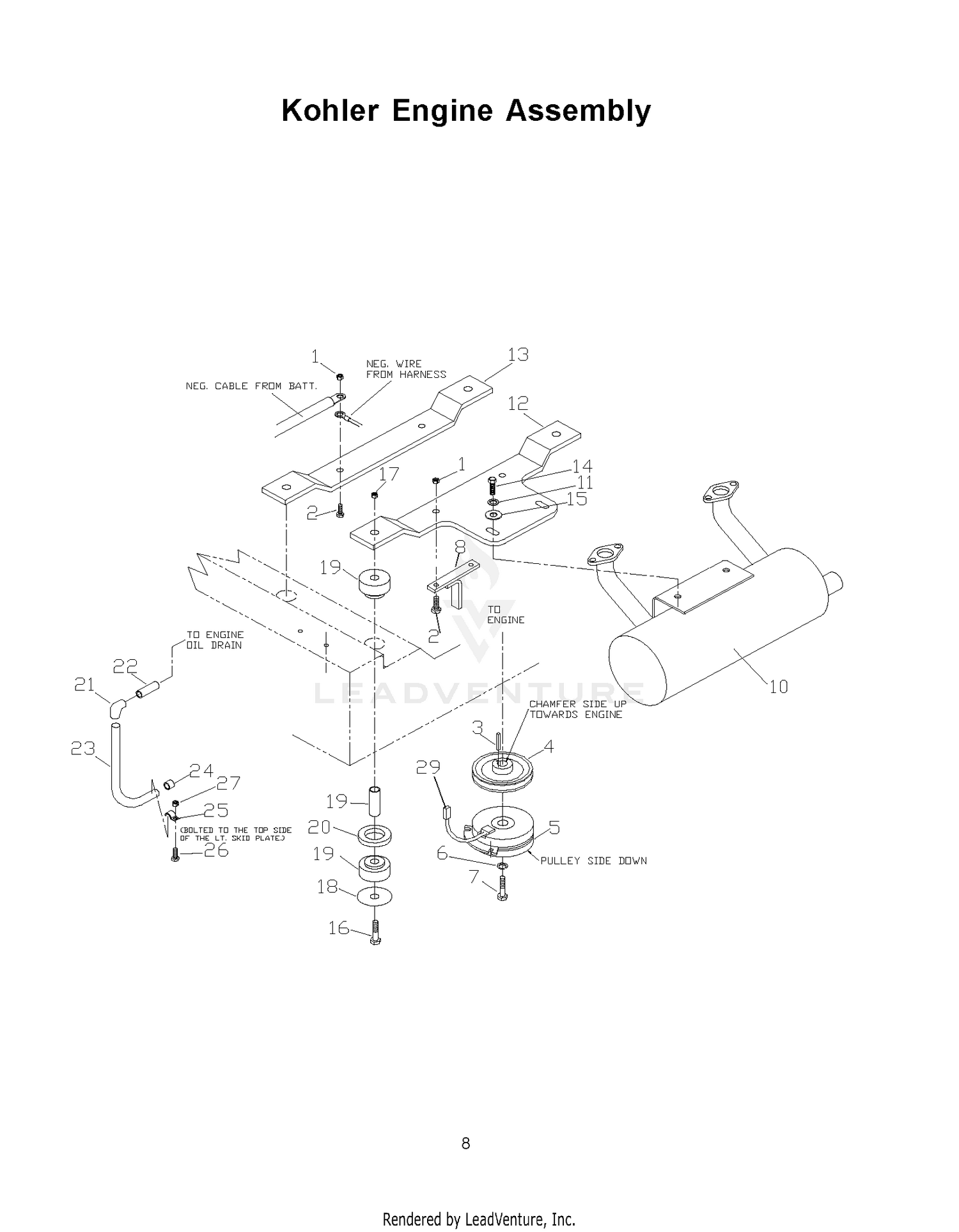

ENGINE
Parts (56)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 134-0644 | PAD-FOOTBOARD Price: $29.77 |
| 1 | 596580701 | Nuts This part replaces 539990184. Price: $2.99 |
| 2 | 134-0645 | PAD-FOOTBOARD Price: $21.62 |
| 2 | 874780528 | SCREW This part replaces 539990669. Price: $4.99 |
| 3 | 134-0646 | PAD-FOOTBOARD Price: $29.77 |
| 3 | 539100152 | KEY 1/4" SQ X 1 7/8" Price: $2.99 |
| 4 | 134-0832 | DASHBOARD Price: $119.90 |
| 5 | 134-0885 | BRACKET Price: $5.31 |
| 5 | 539105406 | ELECTRIC CLUTCH W/CABLE Price: $329.99 |
| 6 | 134-0886 | BRACKET Price: $5.37 |
| 6 | 596238901 | Washers This part replaces 539990247. Price: $2.99 |
| 7 | 134-0927 | DASHBOARD Price: $132.06 |
| 7 | 539991120 | BOLT 7/16F X 2 1/2 Price: $5.99 |
| 8 | 134-0928 | FAIRING Price: $817.71 |
| 8 | 539106819 | CLUTCH TIE DOWN Price: $36.99 |
| 9 | 134-0937 | BUSHING Price: $30.32 |
| 9 | 539104416 | KOH PIGTAIL Price: $34.99 |
| 10 | 134-0945 | SUPPORT Price: $36.96 |
| 10 | 539105896 | MUFFLER KOHLER GEN II Price: $299.99 |
| 11 | 134-0947 | SUPPORT Price: $57.80 |
| 11 | 596238801 | WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 12 | 134-0950 | WASHER Price: $5.45 |
| 12 | 539105410 | REAR ENGINE MOUNT Price: $60.99 |
| 13 | 134-0954 | DASHBOARD Price: $26.89 |
| 13 | 539105025 | ENGINE MOUNT Price: $19.99 |
| 14 | 134-0955 | SUPPORT Price: $62.77 |
| 14 | 596030501 | SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 15 | 134-0956 | SUPPORT Price: $36.96 |
| 15 | 596134901 | GSPH This part replaces 539990692. Price: $2.99 |
| 16 | 134-0958 | WHEEL-STEERING Price: $74.31 |
| 16 | 539103433 | HCS 1/2C X 3 1/4 Price: $5.99 |
| 17 | 134-1007 | SCREW Price: $0.28 |
| 17 | 596135601 | GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 18 | 134-1041 | NUT Price: $0.25 |
| 18 | 539104959 | ISOLATOR WASHER Price: $12.99 |
| 19 | 134-1044 | WASHER Price: $0.25 |
| 19 | 539104958 | ISOLATORS Price: $32.99 |
| 20 | 134-1054 | WASHER Price: $0.32 |
| 20 | 539105034 | ISOLATOR SPACER Price: $11.99 |
| 21 | 134-1084 | NUT Price: $0.25 |
| 22 | 134-1122 | SCREW Price: $1.17 |
| 22 | 539105073 | PIPE 3/8 NPT 1-1/2 Price: $4.99 |
| 23 | 134-1135 | PLUG Price: $0.32 |
| 23 | 539101362 | OIL DRAIN HOSE Price: $24.99 |
| 24 | 134-1234 | WASHER Price: $0.25 |
| 24 | 539101364 | DRAIN CAP Price: $5.99 |
| 25 | 134-1257 | INSERT-THREADED Price: $0.70 |
| 25 | 539101363 | CLAMP Price: $2.99 |
| 26 | 134-1304 | SCREW Price: $1.24 |
| 26 | 596230901 | Screws This part replaces 539990580. Price: $2.99 |
| 27 | 134-1311 | SCREW Price: $0.53 |
| 27 | 539990761 | NUT 1/4C CENTER LOCK Price: $2.99 |
| 28 | 134-0946 | SUPPORT-COLUMN Price: $13.46 |
| 29 | 134-3003 | WASHER Price: $1.15 |
| 29 | 539105637 | CLUTCH HARNESS Price: $22.99 |
| 30 | 134-3004 | SCREW Price: $1.86 |
