Home / OPE / Riding Products / 02701, TM7490 7-Gang Trailed Mower, 2014 (SN 314000001-314999999) / Wing Arm Assembly

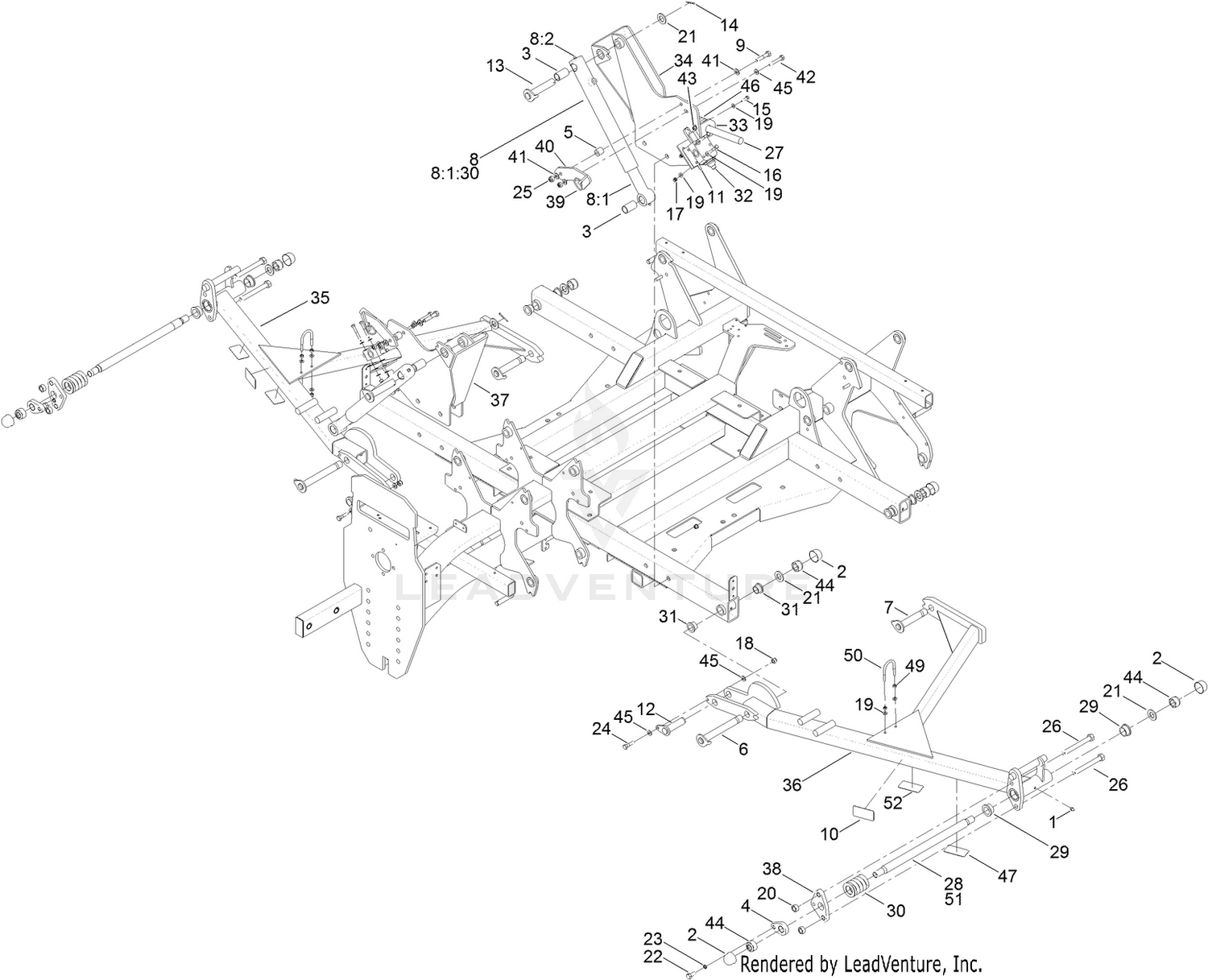

Wing Arm Assembly

Wing Arm Assembly

Parts (50)

RefPart NumberDescription
1 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
2 10-11-100 NUT CAP M24 Price: $1.97
3 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
4 63-01-185W RETAINER Price: $48.24
5 63-01-969 REAR SKID SPACER Price: $12.02
6 66-05-103 PIN WING ARM PIVOT FRONT Price: $58.58
7 66-05-105 PIN WING ARM PIVOT -REAR Price: $55.69
8 66-06-001W CYLINDER HYDRAULIC DISPL Price: $345.26
9 66-11-002 BOLT - HEX HEAD HIGH TENSILE Price: $4.55
10 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
11 74-01-402 PLATE - DIVERTER POSITION Price: $12.21
12 74-05-108 PIN WING ARM ROD Price: $38.79
13 74-05-112 PIN - WING CYLINDER Price: $64.37
14 74-11-001 PIN Price: $1.42
15 03162 STEEL BOLT Price: $1.39
16 09371 BOLT M8 X 60 Price: $1.34
17 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
18 09447 NUT M10 X 1.5 NYL INS Price: $1.40
19 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
20 09550 NUT M16 PLAIN Price: $1.40
21 09555 WASHER M24 PLAIN Price: $1.31
22 09571 SETSCREW M12 X 25 HEX HD Price: $1.40
23 09599 WASHER Price: $1.42
24 09611 BOLT M10 X 40 Price: $1.40
25 09650 NUT Price: $1.40
26 09690 BOLT - M16*140 Price: $8.97
27 749002 ROD SPRING RETURN W/A Price: $67.50
28 749553 PIN DIA 30*521 HEAD PIVOT Price: $56.55
29 767817 BUSH OILITE FLANGED 38*30*20LG Price: $15.39
30 767821 DIE SPRING CL6376 Price: $108.69
31 767880 BUSHING-FLANGED Price: $12.16
32 953601 VALVE 3 PORT DIVERTER Price: $236.37
33 749001W BRACKET-SPRING Price: $16.54
34 749005W CYLINDER-WING, LH Price: $311.08
35 749010W ARM WING W/A RH Price: $1,528.01
36 749015W ARM WING W/A LH Price: $1,478.04
37 749040W CYLINDER-WING, RH Price: Call Us
38 767118W PLATE SLIDER Price: $54.74
39 994350C LATCH W/A LH Price: $45.95
40 994355C LATCH W/A RH Price: $45.95
41 HY09485 WASHER M12 PLAIN Price: $1.40
42 09829 SETSCREW M10*60 STAINLESS Price: $2.02
43 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
44 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
45 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
46 HY749701 SPRING Price: $174.49
47 111-3903 DECAL-WARNING Price: $6.74
49 ZNH1H000U HEX.NUT M8 Price: $1.40
50 74-07-018 CLAMP EXHAUST 45MM S.8878 Price: $3.82
51 749554 PIN Price: $55.40
