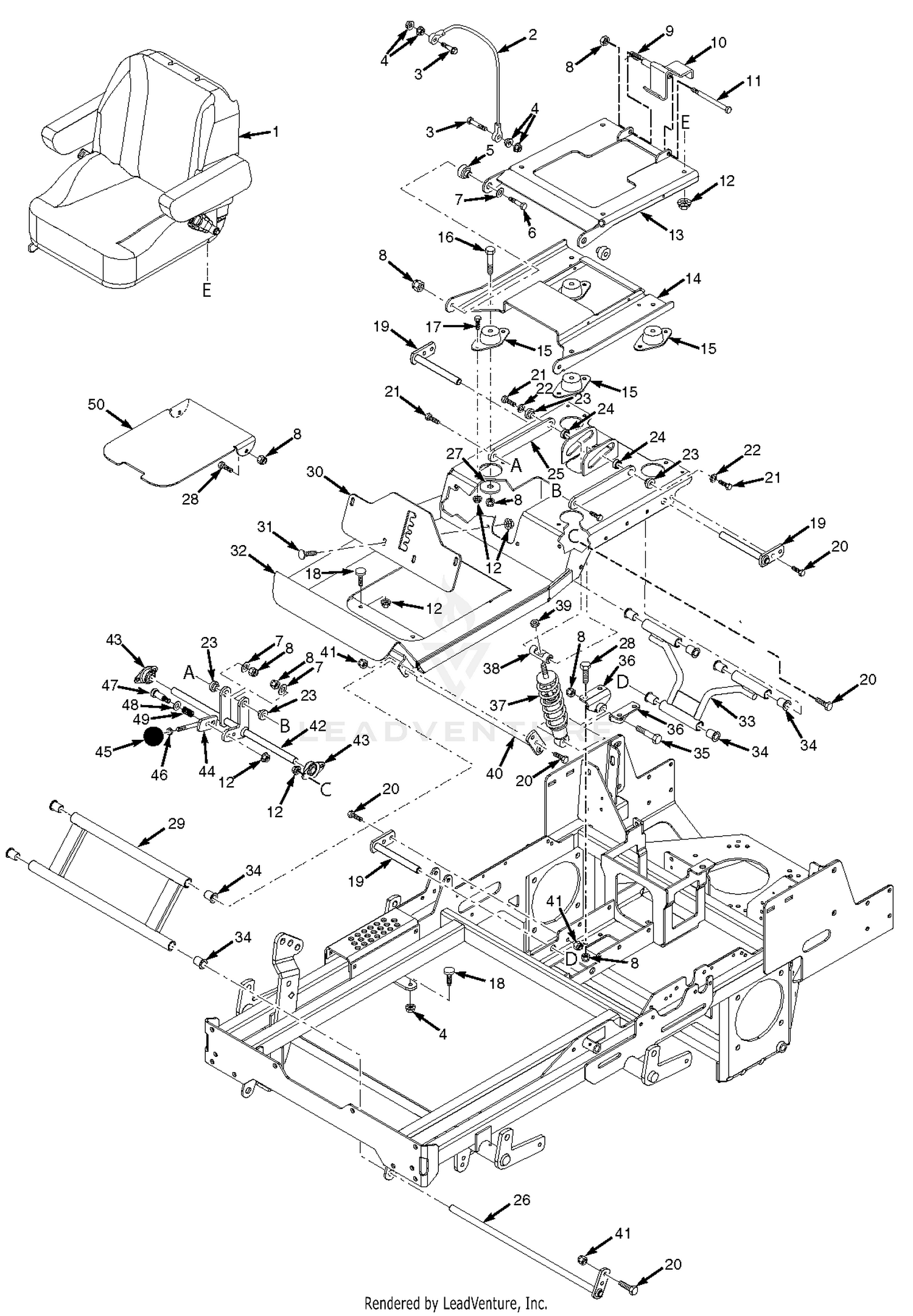

| Ref | Part Number | Description |
|---|
| 1 |
484125 |
Seat Assembly Price: Call Us |
| 2 |
483559 |
Cable, Seat Stop Price: Call Us |
| 3 |
04001-59 |
Bolt, Hex Head 1/4-20 x 1-1/4" Price: Call Us |
| 4 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 5 |
43606 |
Sleeve, Seat Base Mount Price: Call Us |
| 6 |
04001-45 |
Bolt, Hex Head 3/8-16 x 2" Price: Call Us |
| 7 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 8 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 9 |
483371 |
Spring, Seat Latch Price: Call Us |
| 10 |
452143 |
Latch Weldment, Seat Price: Call Us |
| 11 |
04001-100 |
Bolt, Hex Head 3/8-16 x 6" Price: Call Us |
| 12 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 13 |
452147 |
Seat Plate Weldment Price: Call Us |
| 14 |
462262 |
Seat Mounting Plate Weldment w/Decal Price: Call Us |
| 15 |
484148 |
Isolator, Seat Price: Call Us |
| 16 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" Price: Call Us |
| 17 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 18 |
484201 |
Bumper, Rubber Price: Call Us |
| 19 |
452152 |
Shaft Weldment, Rear Op. Platform Pivot Price: Call Us |
| 20 |
04001-09 |
Bolt, Hex Head 5/16-18 x 1" Price: Call Us |
| 21 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 22 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 23 |
43086 |
Bushing Price: Call Us |
| 24 |
484035 |
Bearing Price: Call Us |
| 25 |
425257 |
Link, Suspension Seat Tensioner Price: Call Us |
| 26 |
452150 |
Pin Weldment, Op Platform Lower Pivot Price: Call Us |
| 27 |
04041-38 |
Flatwasher, 3/8-.406 x 2.25 x .188 Price: Call Us |
| 28 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 29 |
462211 |
Suspension Pivot Assembly, Front Price: Call Us |
| 30 |
462267 |
Bracket, Suspension Adjustment w/Decal Price: Call Us |
| 31 |
04003-04 |
Bolt, Carriage 5/16-18 x 1" Price: Call Us |
| 32 |
462344 |
Seat Mounting Base Weldment w/Decal Price: Call Us |
| 33 |
462212 |
Suspension Pivot Assembly, Rear Price: Call Us |
| 34 |
483453-14 |
Bearing Price: Call Us |
| 35 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 36 |
452154 |
Mount Weldment, Shock Price: Call Us |
| 37 |
484032 |
Shock Absorber, Suspension Price: Call Us |
| 38 |
484150 |
Mount, Suspension Shock Price: Call Us |
| 40 |
452151 |
Pin Weldment, Op Platform Upper Pivot Price: Call Us |
| 41 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 42 |
452107 |
Pivot Weldment, Suspension Tensioner Price: Call Us |
| 43 |
48796 |
Bearing, Self Align 5/8" ID Price: Call Us |
| 44 |
452106 |
Adjustment Lever, Suspension Price: Call Us |
| 45 |
484010 |
Knob Price: Call Us |
| 46 |
04020-12 |
Nut, Jam 3/8-16 Price: Call Us |
| 47 |
04009-11 |
Bolt, Shoulder 3/8 x 1" Price: Call Us |
| 47 |
04009-14 |
Bolt, Shoulder 3/8 x 3/8" Price: Call Us |
| 48 |
04050-05 |
Flatwasher, 3/8-.406 x .812 x .065 Price: Call Us |
| 49 |
483601 |
Spring Price: Call Us |
