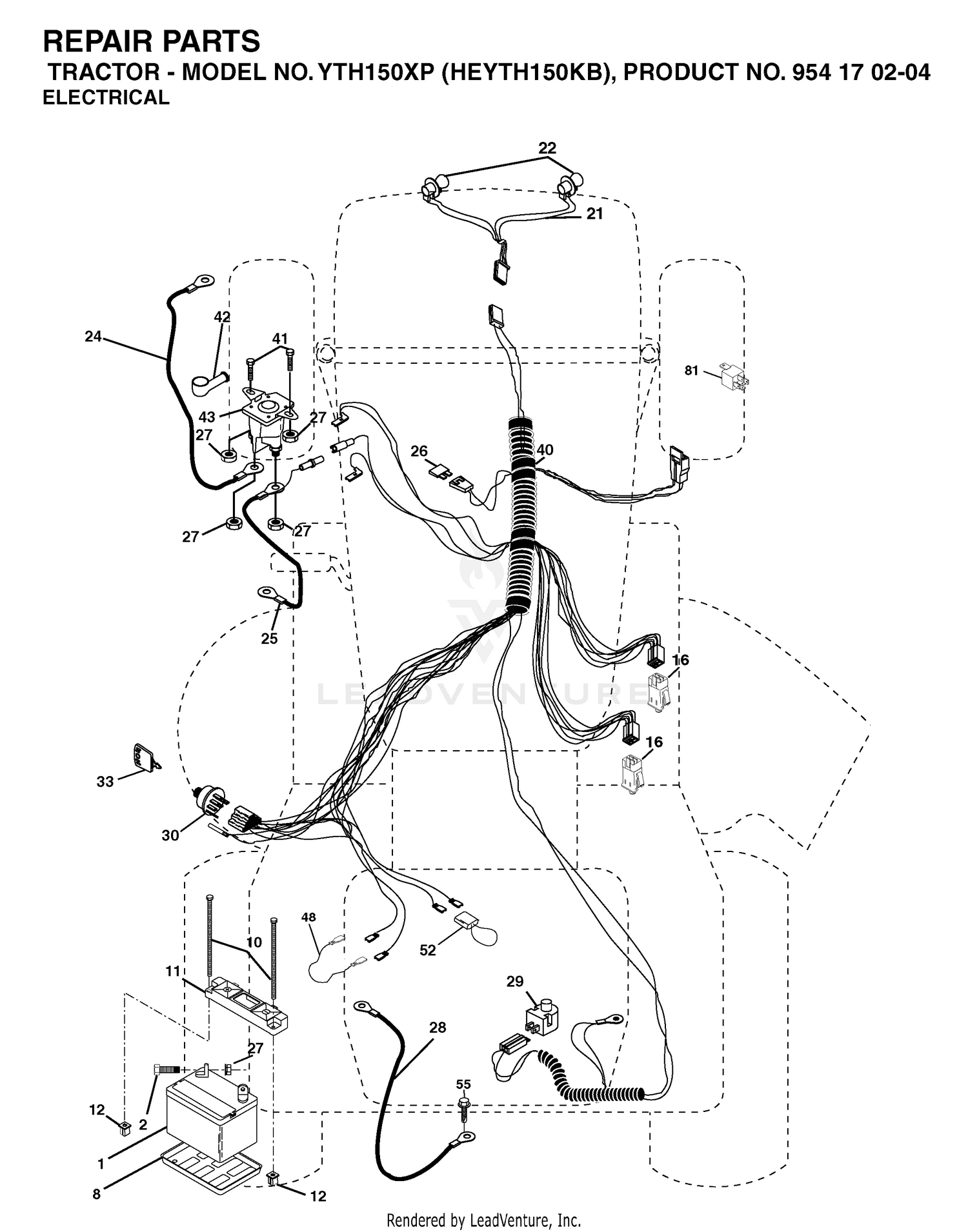

| Ref | Part Number | Description |
|---|
| 1 |
323-4 |
SCREW-HH Price: $1.02 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
323-5 |
SCREW-HH Price: $0.41 |
| 4 |
3217-7 |
NUT-HEX Price: $0.28 |
| 5 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 6 |
13-6460 |
WHEEL-CASTER Price: $238.80 |
| 7 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
13-6450-01 |
CASTER This part replaces 13-6450. Price: $242.02 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $5.99 |
| 9 |
325-13 |
SCREW-HH Price: $3.57 |
| 10 |
13-5680 |
JACK This part replaces 13-6750. Price: $396.42 |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 11 |
13-3510 |
BEARING-THRUST Price: $25.53 |
| 11 |
532150109 |
BATTERY HOLDDOWN FRONT MOUNT Price: $4.99 |
| 12 |
13-3610 |
SLEEVE-FELT Price: $9.36 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 13 |
13-5680 |
JACK Price: $396.42 |
| 14 |
13-6730 |
RIVET Price: $0.25 |
| 15 |
13-6740 |
HANDLE Price: $27.49 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532179720 |
HARNESS.IGNITION Price: $99.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
