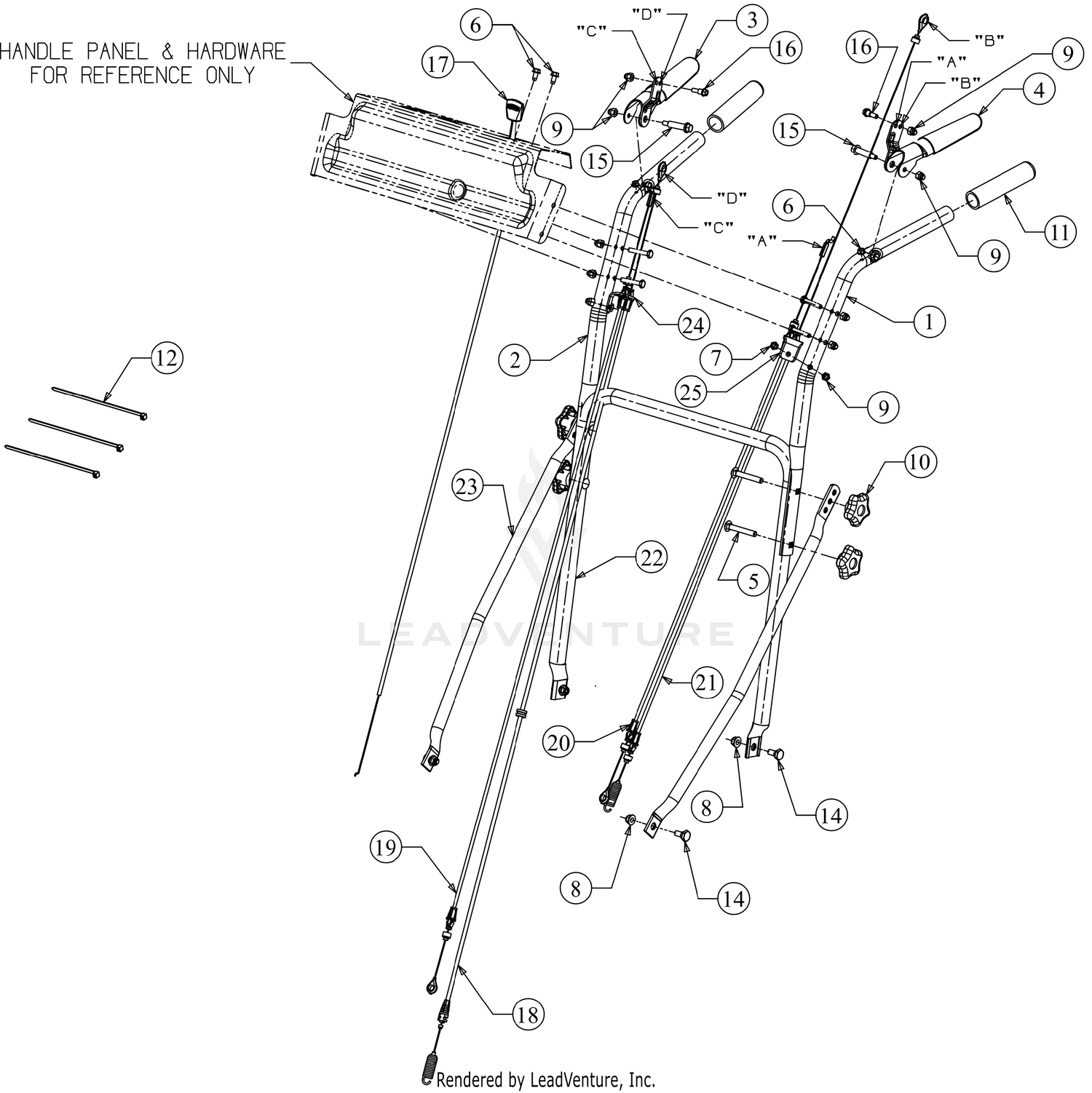

| Ref | Part Number | Description |
|---|
| 1 |
649-05013B-4033 |
UPPER HANDLE ASSEMBLY (LH) Price: Call Us |
| 2 |
649-05014B-4033 |
UPPER HANDLE ASSEMBLY (RH) Price: Call Us |
| 3 |
687P02614C |
LEVER ASSEMBLY (RH) This part replaces 687-02614C. Price: $15.80 |
| 4 |
687P02615C |
LEVER ASSEMBLY (LH) This part replaces 687-02615C. Price: $15.80 |
| 5 |
710-0572 |
SCRE W5/16-18 x 2.25 GR5 Price: $3.75 |
| 6 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 7 |
710-0606 |
SCREW 1/4-20 x 1.50 GR.5 Price: $4.67 |
| 8 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 9 |
712-0442 |
Cap Lock Nut, 1/4-20 This part replaces 912-0442. Price: $6.01 |
| 10 |
720-04072A |
STAR KNOB 5/16-18 Price: $6.07 |
| 11 |
720-04190 |
GRIP-RED Not Available Price: |
| 14 |
738-0140 |
Shoulder Screw, .435 x .178, 5/16 x .56 This part replaces 938-0140. Price: $4.93 |
| 15 |
738-05041A |
SHOULDER BOLT .375X1.285:1/4-20 Price: $5.48 |
| 16 |
738-05149A |
SHOULDER SCREW .342X.335X1/4-20 Price: $5.48 |
| 17 |
946-04604A |
THROTTLE/CHOKE CABLE 38" x 1.1 This part replaces 946-04604. Price: $32.12 |
| 18 |
946-05073 |
BLADE CONTROL CABLE Price: $34.74 |
| 19 |
946-05076A |
TRANSMISSION BRAKE CABLE (RH) This part replaces 946-05076. Price: $31.66 |
| 20 |
946-05077A |
TRANSMISSION BRAKE CABLE (LH) This part replaces 946-05077. Price: $31.66 |
| 21 |
946-05149 |
WHEEL CLUTCH CABLE Price: $48.46 |
| 22 |
749-04330-0637 |
LOWER HANDLE Price: $74.61 |
| 23 |
749-04333-0637 |
HANDLE ADJUSTMENT BRACE Price: $40.61 |
| 24 |
787-01490A-0637 |
CABLE BRACKET MOUNTING (RH) Price: $8.85 |
