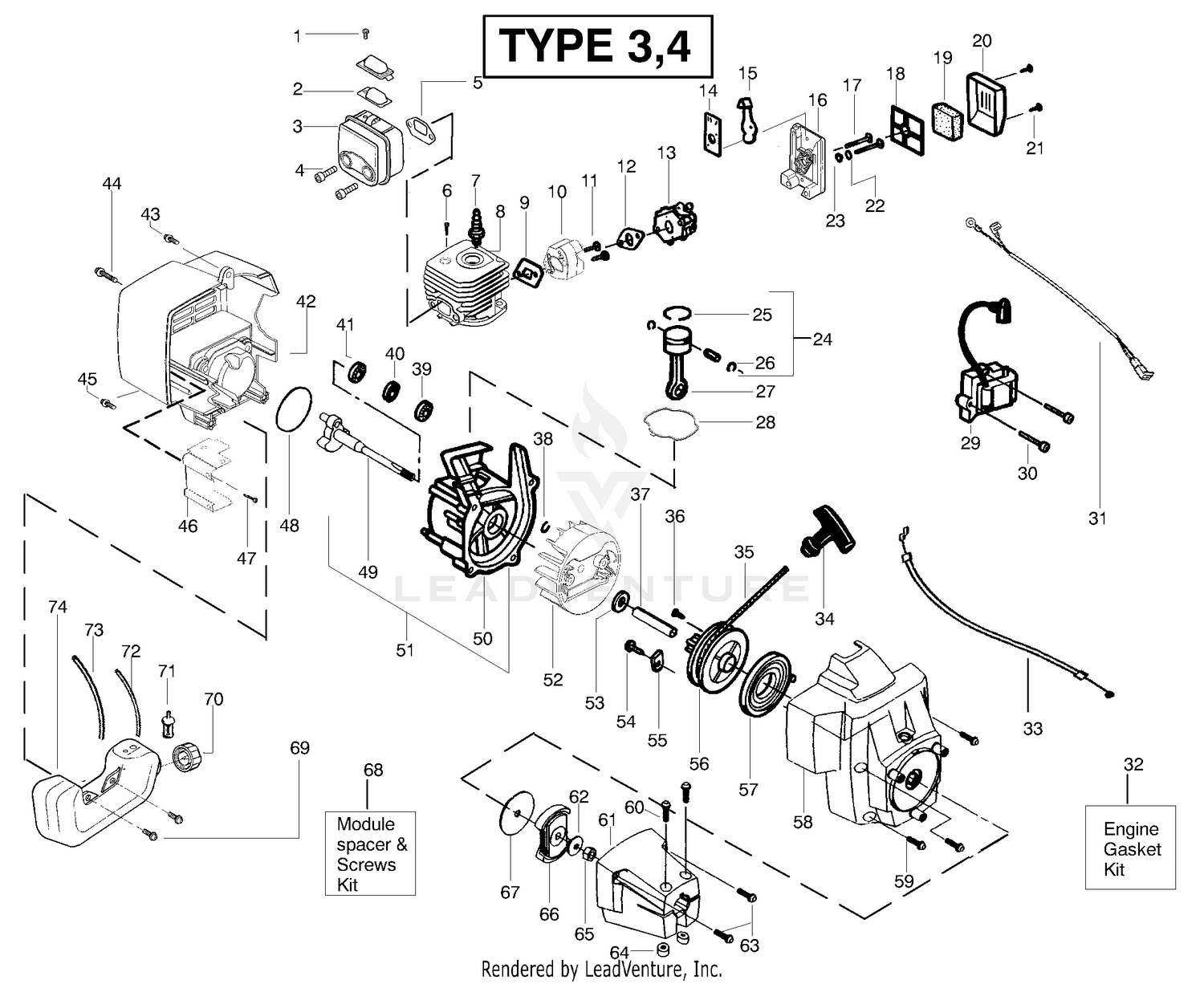

Engine Assembly Type 3 & 4
Parts (68)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530015241 | Screw--Screen Price: $1.99 |
| 1 | SGH08701-03 | HEAD-TINE, ADAPTER Price: $272.95 |
| 2 | 530071544 | Kit--Spark Arrestor Price: $6.99 |
| 4 | 530016338 | Bolt--Muffler Price: $1.99 |
| 5 | 530071363 | Gasket--Muffler(kit) Price: $5.99 |
| 6 | 530015953 | Screw--Cylinder Price: $1.99 |
| 7 | 952030249 | Spark Plug (RCJ 6Y) Price: $3.99 |
| 8 | 530071678 | Kit -- Cylinder Price: Call Us |
| 9 | 530071363 | Gasket--Cyl/Carb(kit) Price: $5.99 |
| 10 | 530057635 | Adapter--Carb. Price: $5.99 |
| 11 | 530016309 | Screw Price: $1.99 |
| 12 | 530071363 | Gasket--Carb.(kit) Price: $5.99 |
| 13 | 530071631 | Kit--Carburetor (C1U--W16) Price: $27.99 |
| 14 | 530038747 | Choke Plate Mounting Price: $1.99 |
| 15 | 530035499 | Shutter--Choke Price: $1.99 |
| 16 | 530052431 | Air Box Price: $1.99 |
| 17 | 530016428 | Screw Price: $1.99 |
| 18 | 530036569 | Plate -- Filter Support Price: $1.99 |
| 19 | 530036575 | Foam--Air Filter Price: $1.99 |
| 20 | 530054414 | Cover--Air Filter Price: $3.99 |
| 21 | 530015892 | Screw Price: $1.99 |
| 22 | 530015852 | Spacer--Choke Price: $1.99 |
| 23 | 530015254 | Washer Price: $1.99 |
| 25 | 545154001 | RING PISTON This part replaces 530055120. Price: $1.99 |
| 26 | 530015162 | Retainer - Piston Pin Price: $1.99 |
| 27 | 530049817 | CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 28 | 530071363 | Seal--Cylinder (kit) Price: $5.99 |
| 29 | 545081826 | Kit - Ignition Module This part replaces 530039234. Price: $32.99 |
| 30 | 530016357 | Screw Price: $1.99 |
| 31 | 530047278 | Assy--Switch Wire Price: $4.99 |
| 33 | 530056241 | Assy--Throttle Cable Price: $8.99 |
| 34 | 530027569 | Handle--Starter Price: $1.99 |
| 35 | 530071325 | Kit -- Rope Price: $3.99 |
| 36 | 530016391 | Screw Price: $1.99 |
| 37 | 530016376 | Spacer--Flywheel Price: $4.99 |
| 38 | 530015941 | Retain. Ring--C'shaft Price: $1.99 |
| 39 | 530055728 | Outer Bearing Price: $6.99 |
| 40 | 530071615 | Kit--C'case Seal Price: $4.99 |
| 41 | 530032125 | Inner Bearing Price: $11.99 |
| 42 | 530057472 | Shroud--Rear Price: Call Us |
| 43 | 530016349 | Screw Price: $1.99 |
| 44 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 45 | 530016349 | Screw Price: $1.99 |
| 46 | 530055351 | Shield--Heat Price: $2.99 |
| 47 | 530015805 | Screw Price: $1.99 |
| 48 | 530071363 | O--Ring--C'case(kit) Price: $5.99 |
| 49 | 530012413 | Assy--Crankshaft Price: $14.99 |
| 52 | 545221701 | FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 53 | 530015149 | Washer Price: $1.99 |
| 54 | 530015775 | Screw Price: $1.99 |
| 55 | 530053985 | Retainer Price: $0.99 |
| 57 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 58 | 530055857 | Assy.--Fan Hsg Price: Call Us |
| 59 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 60 | 530015767 | Screw Price: $1.99 |
| 61 | 530014923 | Assy--Clutch Hsg. Price: $22.99 |
| 62 | 530015828 | Washer--Flat Price: $1.99 |
| 63 | 530015886 | Screw Price: $1.99 |
| 64 | 530015768 | Nut Price: $1.99 |
| 65 | 530626605 | Nut--Clutch Price: $1.99 |
| 66 | 530069491 | Assy--Clutch Price: $7.99 |
| 67 | 530015611 | Washer--Clutch Price: $1.99 |
| 68 | 530071731 | Kit--Module Spacer & Screws Price: $4.99 |
| 69 | 530016379 | Retainer Price: $2.99 |
| 70 | 530014347 | Assy--Fuel Cap Price: $4.99 |
| 71 | 530095646 | Assy--Fuel Pickup Price: $2.99 |
| 72 | 530069247 | Kit--Fuel Line (Small) Price: $3.99 |
| 73 | 530069216 | Kit--Fuel Line (Large) Price: $3.99 |
