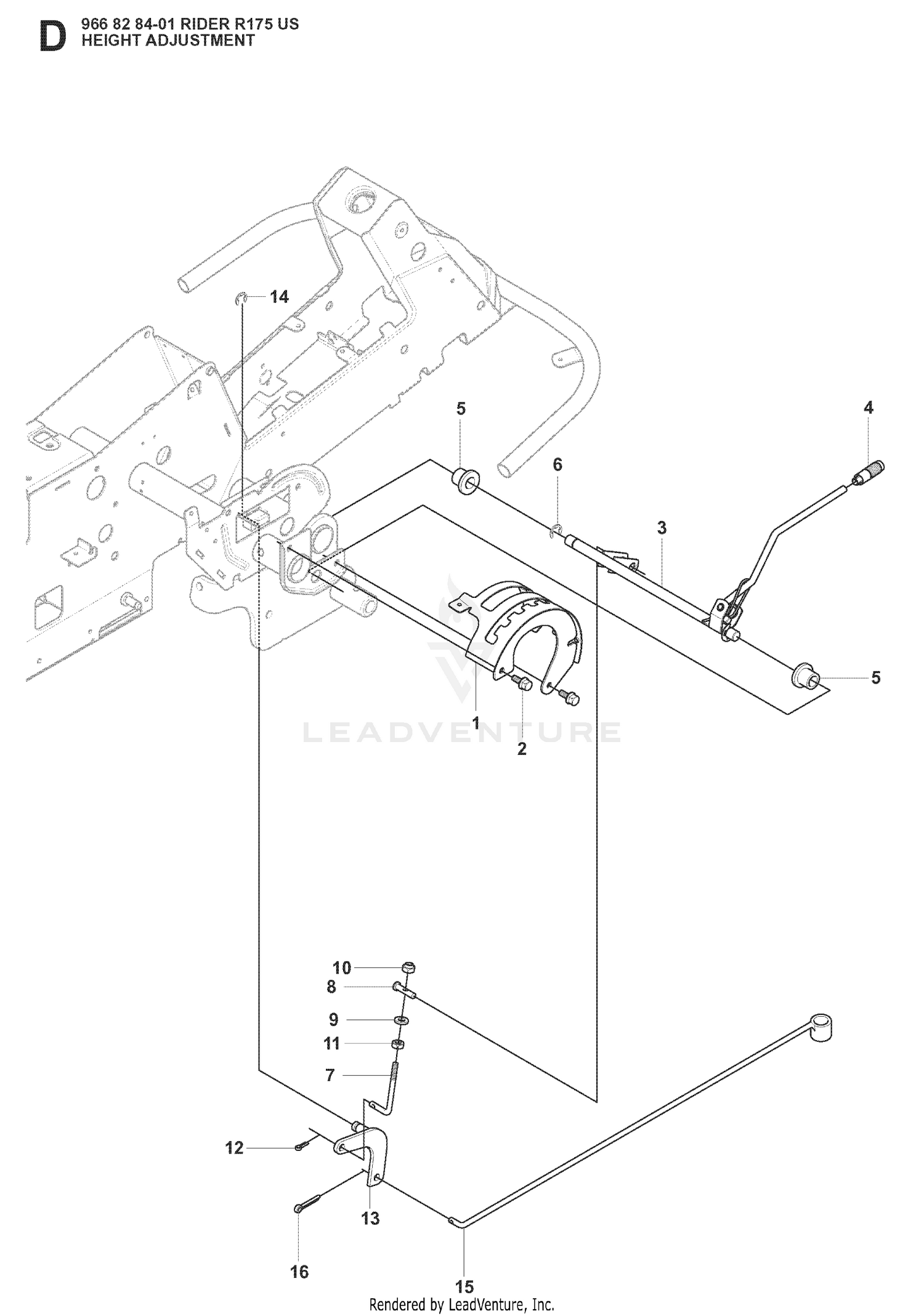

HEIGHT ADJUSTMENT
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 535501401 | CONTROL PLATE Price: $25.99 |
| 1 | 95-7522 | AXLE Price: $377.20 |
| 2 | 506570103 | BOLT Price: $3.99 |
| 2 | 99-7564 | SEAL-OIL Price: $25.36 |
| 3 | 504734501 | HEIGHT ADJUSTER Price: $74.99 |
| 3 | 95-7544 | CLIP Price: $4.04 |
| 4 | 95-7523 | SPACER Price: $26.89 |
| 5 | 584871302 | BEARING FLANGE This part replaces 506554301. Price: $4.99 |
| 5 | 99-7555 | SHIM 0.3 Price: $3.29 |
| 5 | 99-7556 | SHIM 0.2 Price: $3.29 |
| 5 | 99-7557 | SHIM 0.5 Price: $3.37 |
| 6 | 735312220 | CIRCLIP Price: $3.99 |
| 6 | 95-7524 | GEAR-BEVEL, 29 TOOTH Price: $222.95 |
| 7 | 506908201 | LINKAGE Price: $11.99 |
| 7 | 99-7534 | BEARING-BALL Price: $65.44 |
| 8 | 506784601 | Pins Price: $4.99 |
| 8 | 95-7521 | COVER-AXLE Price: $107.87 |
| 9 | 106-1071 | O-RING Price: $18.43 |
| 9 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 10 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 10 | 93-7775 | BEARING-BALL This part replaces 99-7561. Price: $127.75 |
| 11 | 731231801 | NUT Price: $3.99 |
| 11 | 99-7539 | CLIP Price: $11.07 |
| 12 | 104-2374 | BOLT This part replaces 99-7596. Price: $6.33 |
| 12 | 721618301 | Split Pin Price: $1.99 |
| 13 | 506998301 | Bracket Price: $21.20 |
| 14 | 735311520 | RETAINING RING Price: $2.99 |
| 15 | 506975101 | CLUTCH ROD Price: $10.36 |
| 16 | 721618301 | Split Pin Price: $1.99 |
