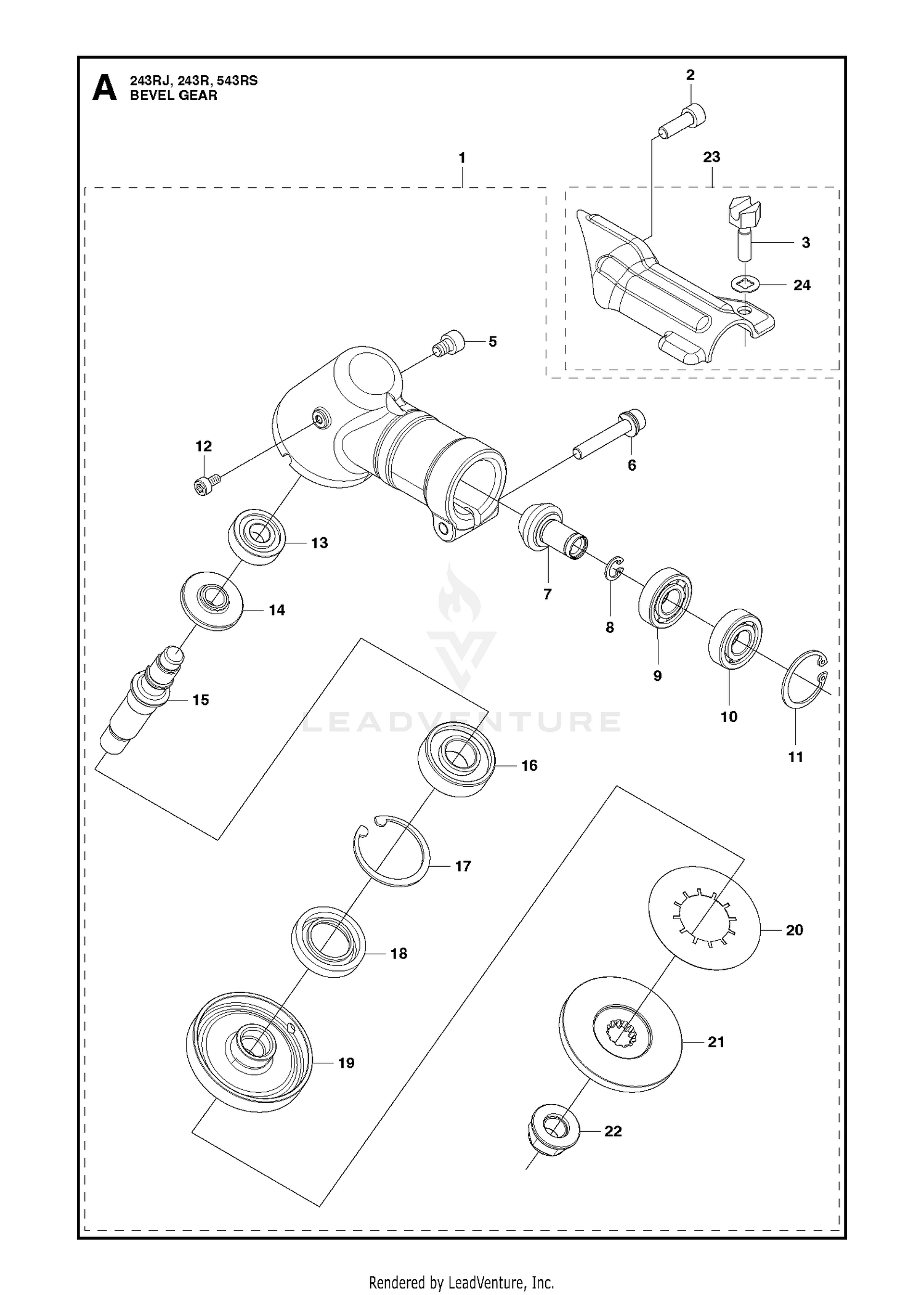

BEVEL GEAR
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3296-51 | NUT-LOCK, NI Price: $3.23 |
| 1 | 579076202 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 574710801 | BOLT Price: $2.99 |
| 2 | SG322112 | NUT-HEX SLOTTED Price: $108.79 |
| 3 | 537189501 | SCREW Price: $3.99 |
| 3 | SG322119 | ARM-CRANK Price: $741.92 |
| 4 | 105-1041 | PIN-SPRING Price: $1.88 |
| 5 | 521862001 | BOLT,TORX M6X8 Price: $2.99 |
| 5 | SG322108 | BUSHING-SPROCKET Price: $10.04 |
| 6 | 521862401 | BOLT,TORX Price: $2.99 |
| 6 | SG322104 | CRANK ARM DRIVER Price: $793.18 |
| 7 | SG322125 | PIN-COTTER Price: $0.68 |
| 8 | 516124101 | RING Price: $3.99 |
| 8 | SG250375 | PIN-DOWEL Price: $40.24 |
| 9 | 516127901 | BEARING Price: $5.99 |
| 9 | SG322100 | PIN-CRANK Price: $544.13 |
| 10 | 328-12 | SCREW-HH Price: $9.77 |
| 10 | 516130001 | BEARING,12MM ID,28MM OD, 8MM W Price: $7.99 |
| 11 | 121-6907 | MAIN BEARING HOUSING ASM Price: $1,386.14 |
| 11 | 506609901 | RING Price: $2.99 |
| 12 | 323-9 | SCREW-HH Price: $1.29 |
| 12 | 544362701 | BOLT Price: $2.99 |
| 13 | 505170201 | BEARING Price: $5.99 |
| 13 | SG322113 | HALF SPROCKET ASM Price: $1,073.10 |
| 14 | 3296-39 | NUT-LOCK, NI Price: $2.29 |
| 15 | 97-1517 | DISC PREC HUSKY Price: Call Us |
| 16 | 516131701 | BEARING 0600406202 Price: $7.99 |
| 16 | SG322101 | CRANKSHAFT-RH Price: $975.21 |
| 17 | 3253-8 | WASHER-LOCK Price: $0.47 |
| 17 | 502849301 | SNAP RING Price: $2.99 |
| 18 | 521522201 | SEAL Price: $2.99 |
| 19 | 579076901 | NEEDS DESCRIPTION Price: Call Us |
| 20 | 579077001 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 579077101 | NEEDS DESCRIPTION Price: Call Us |
| 22 | 579076401 | NEEDS DESCRIPTION Price: Call Us |
| 23 | 575778801 | BRACKET ASSY Price: $6.99 |
| 24 | 575677301 | LOCK WASHER Price: $0.99 |
