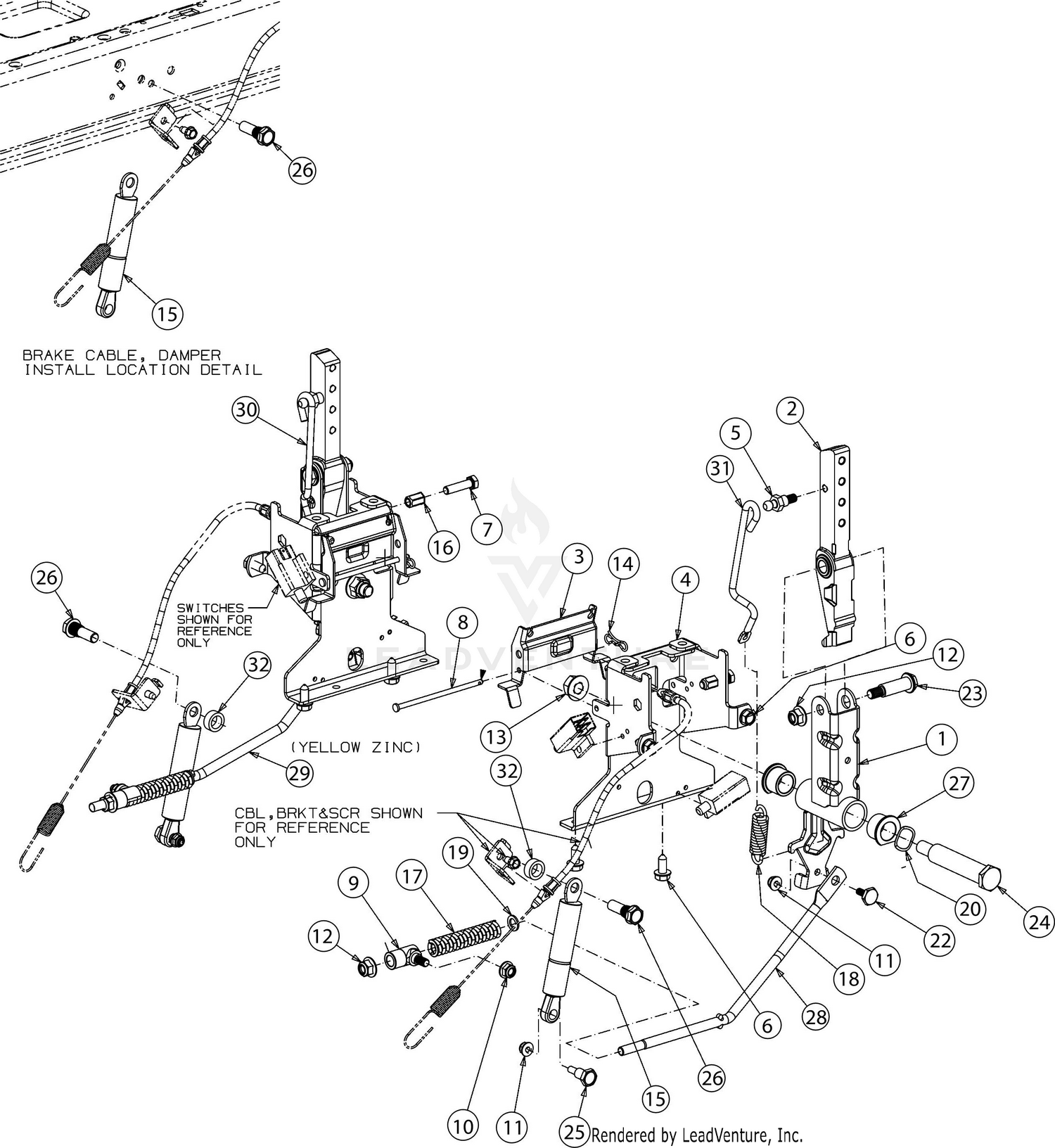

| Ref | Part Number | Description |
|---|
| 1 |
603-05033A-0637 |
LAPBAR PIVOT HUB (POWDER BLACK) Price: $37.59 |
| 2 |
941-00022A |
LOWER LAP BAR ARM ASSEMBLY This part replaces 941-00022. Price: $73.75 |
| 3 |
703-09069-0637 |
BRAKE CABLE LEVER Price: $5.62 |
| 4 |
703-09325C-0637 |
LAPBAR PIVOT SUPPORT (POWDER BLACK) This part replaces 703-09325A-0637. Price: $28.84 |
| 5 |
710-04471 |
SCREW 5/16-18 X .48 Price: $24.34 |
| 6 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 7 |
710-0528 |
SCREW 5/16-18 X 1.25 GR5 Price: $3.90 |
| 8 |
711-06068 |
PIN .188 X 4.1 Price: $6.12 |
| 9 |
711-06094A |
SHOULDER FERRULE 3/8 ID X .420 Price: $13.62 |
| 10 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 11 |
712-04064 |
FLANGE LOCK NUT Price: $3.64 |
| 12 |
712-04065 |
NUT Price: $3.68 |
| 13 |
712-04150 |
NUT Price: $3.74 |
| 14 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 15 |
727-04400A |
DAMPNER CYLINDER Price: $55.87 |
| 16 |
728-05012 |
LOCK NUT RIVET 5/16-18 Not Available Price: |
| 17 |
732-05075 |
COMPRESSION SPRING .690 OD X 3.215 LG Price: $3.70 |
| 18 |
732-1162 |
EXTENSION SPRING Price: $7.61 |
| 19 |
736-0140 |
Flat Washer, .385 x .62 x .063 This part replaces 936-0140. Price: $6.20 |
| 20 |
736-0621 |
WAVE WASHER .785X1.00X.012 Price: $16.02 |
| 22 |
938-0255 |
SHOULDER SCREW Price: $4.53 |
| 23 |
738-05025 |
SHOULDER BOLT .498 DIA x 1.296 LG Price: $6.57 |
| 24 |
738-05033 |
SHOULDER BOLT .750 DIA x 3.25 LG Price: $14.07 |
| 25 |
738-05034 |
SHOULDER BOLT .395 DIA x .56 LG Price: $6.57 |
| 26 |
738-05074 |
SHOULDER BOLT .395 DIA X.83 LG DOG Price: $7.49 |
| 27 |
741-04050 |
FLANGE BEARING Price: $3.75 |
| 28 |
747-06149A |
HYDRO CONTROL ROD (RH) Price: $13.94 |
| 29 |
747-06160A |
HYDRO CONTROL ROD (LH) Price: $13.94 |
| 30 |
747-06294 |
LAPBAR DETENT ROD (LH) Price: $10.31 |
| 31 |
747-06295 |
LAPBAR DETENT ROD (RH) Price: $10.31 |
