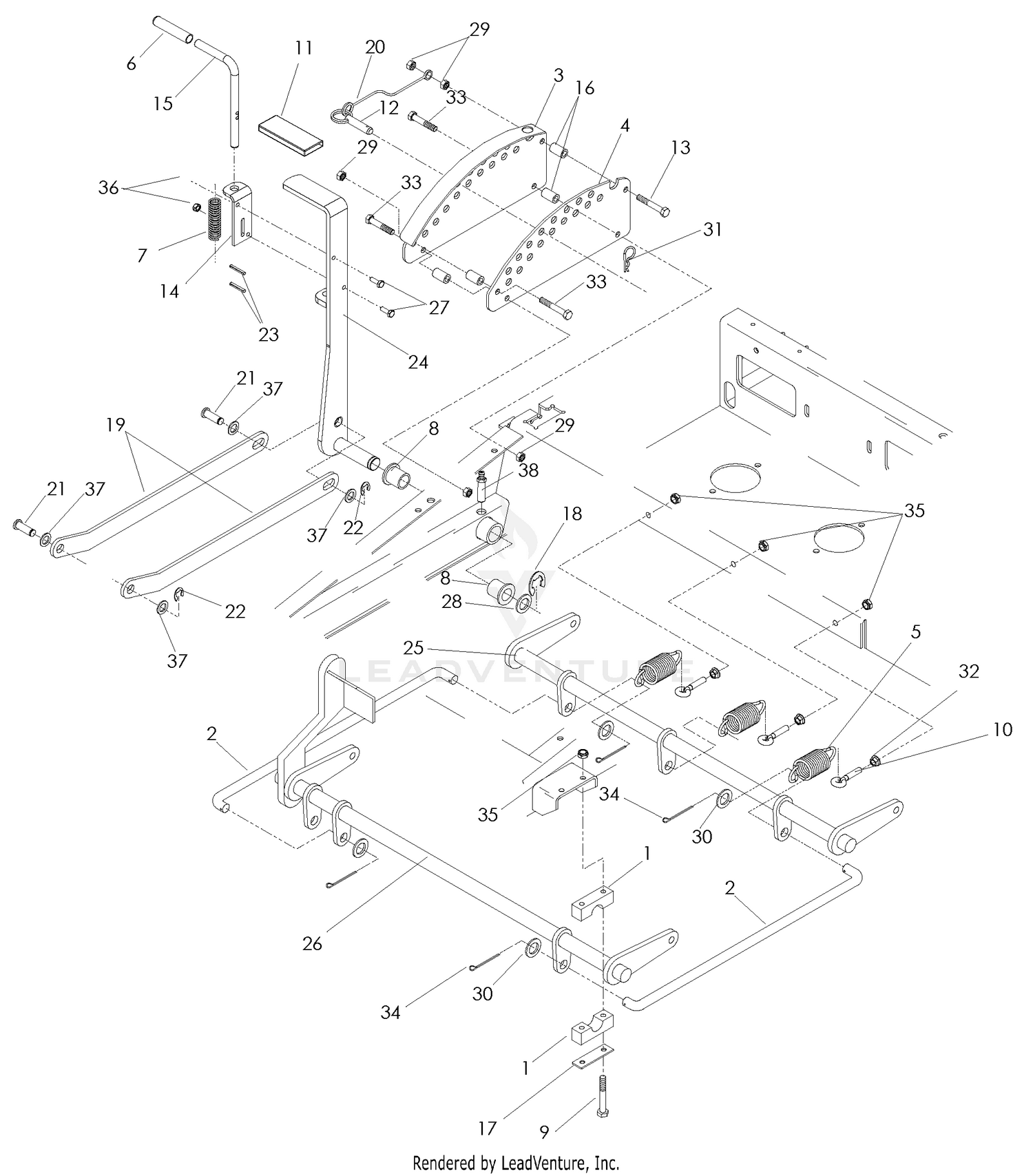

| Ref | Part Number | Description |
|---|
| 1 |
539104808 |
PILLOW BLOCK Price: $7.99 |
| 1 |
58-9580-03 |
REST-FOOT This part replaces 58-9580. Price: $291.45 |
| 2 |
539104310 |
CONNECTING LINK Price: $22.99 |
| 2 |
76-3280 |
TRACTION PEDAL ASM *R Price: $1,467.21 |
| 3 |
539104321 |
ADJ. PLATE WLDMNT Price: $63.99 |
| 3 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 4 |
539104323 |
ADJ. PLATE PAINTED Price: $23.99 |
| 4 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 5 |
539104760 |
DECK LIFT SPRING Price: $5.99 |
| 5 |
60-2110 |
PIN Price: $1.42 |
| 6 |
48-6790 |
BEARING Price: $12.14 |
| 6 |
539101050 |
GRIP Price: $2.99 |
| 7 |
539101058 |
SPRING Price: $3.99 |
| 7 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 8 |
3253-4 |
WASHER-LOCK This part replaces 48-9570. Price: $0.25 |
| 8 |
539101232 |
BUSHING, FLANGED Price: $11.99 |
| 9 |
3-2858 |
DISC-FRICTION Price: $31.32 |
| 9 |
539101721 |
HCS 5/16C X 2-3/4 Price: $3.99 |
| 10 |
539101982 |
EYEBOLT, RH Price: $37.99 |
| 10 |
60-1130 |
LEVER Price: $177.91 |
| 11 |
3290-483 |
WASHER-CONICAL Price: $7.61 |
| 11 |
539102515 |
GRIP Price: $3.99 |
| 12 |
325-9 |
SCREW-HH Price: $1.87 |
| 12 |
596917701 |
Pins This part replaces 539102526. Price: $4.99 |
| 13 |
47-7030 |
BUSHING-RUBBER Price: $31.76 |
| 13 |
539102612 |
SCREW 3/8C X 2 3/4 HEX CAP Price: $4.99 |
| 14 |
33024-00 |
NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 14 |
539103534 |
PIN MT, UPPER Price: $22.99 |
| 15 |
539104523 |
PIN Price: $7.99 |
| 15 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 16 |
3217-9 |
NUT-HH Price: $0.37 |
| 16 |
539104530 |
DECK LIFT SPACER Price: $5.99 |
| 17 |
3290-482 |
WASHER-BELLEVILLE Price: $5.87 |
| 17 |
584392702 |
REINFORCEMENT.PLATEX431 This part replaces 539104807. Price: $11.99 |
| 18 |
33114-035 |
SCREW-HH This part replaces 48-7740. Price: $3.77 |
| 18 |
539101802 |
E-RING 7/8 Price: $2.99 |
| 19 |
48-7100 |
DAMPER-STEERING Price: $441.57 |
| 19 |
539105050 |
LIFT LINKAGE,PAINTED Price: $23.99 |
| 20 |
3219-5 |
NUT-HEX Price: $1.22 |
| 20 |
539105059 |
LANYARD Price: $4.99 |
| 21 |
539105060 |
CLEVIS PIN Price: $4.99 |
| 21 |
58-4310 |
COLLAR-PINNED Price: $51.49 |
| 22 |
539105069 |
E-RING 5/8 Price: $2.99 |
| 22 |
58-5100 |
WASHER-TRACTION Price: $28.50 |
| 23 |
539106532 |
ROLL PIN Price: $2.99 |
| 23 |
60-5700 |
SPRING Price: $27.02 |
| 24 |
539108322 |
LIFT LEVER WELDMENT Price: $84.99 |
| 24 |
58-9010 |
TAB-CLAMP Price: $60.87 |
| 25 |
539108354 |
SHAFT LIFT REAR Price: $108.99 |
| 25 |
60-6540 |
BOLT Price: $3.27 |
| 26 |
29-6163 |
SWITCH-MICRO Price: $91.23 |
| 26 |
539132170 |
LIFT SHAFT ASM, FRONT Price: $219.99 |
| 27 |
3250-40 |
SCREW-SPH Price: $0.54 |
| 27 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 28 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 28 |
58-7800 |
D LEVER W.A. *B Price: $328.78 |
| 29 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 29 |
60-6990 |
WASHER Price: $4.62 |
| 30 |
3255-24 |
WASHER-LOCK / EXT Price: $0.25 |
| 30 |
539976982 |
WASHER 5/8 FLAT Price: $3.99 |
| 31 |
3217-29 |
NUT-HEX Price: $0.25 |
| 31 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 32 |
3274-7 |
SCREW-HSH Price: $0.91 |
| 32 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 33 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 33 |
596434201 |
Bolts This part replaces 539990637. Price: $3.99 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
539990654 |
COTTER PIN Price: $2.99 |
| 35 |
112-6500-01 |
BRACKET-LOCK, NEUTRAL This part replaces 60-0730. Price: $300.58 |
| 35 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 36 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 36 |
58-0800 |
DISCONTINUED Price: Call Us |
| 37 |
3296-19 |
NUT-HEX Price: $0.65 |
| 37 |
596933401 |
Washers This part replaces 539991043. Price: $2.99 |
| 38 |
60-6740 |
WASHER Price: $2.31 |
| 39 |
48-6940 |
SPRING Price: $30.61 |
| 40 |
92-4730-03 |
PLATE-FLOOR This part replaces 92-4730. Price: $1,213.65 |
| 42 |
60-0760 |
CLEVIS-ROD, TRACTION Price: $42.76 |
| 43 |
33094-00 |
WASHER-PLAIN This part replaces 48-8030. Price: $0.25 |
| 44 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 45 |
58-0400-01 |
SHROUD This part replaces 58-0400. Price: $472.86 |
| 46 |
62-7400 |
DECAL Price: $24.54 |
| 47 |
60-0600-03 |
BRACKET-PIVOT This part replaces 60-0600. Price: $236.10 |
| 48 |
60-1110 |
BUSHING Price: $15.95 |
| 49 |
3-7877 |
GRIP-HANDLE Price: $10.69 |
| 50 |
325-8 |
SCREW-HH Price: $3.52 |
| 51 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 52 |
2411-44 |
END-ROD Price: $72.59 |
| 53 |
76-3350 |
SPACER Price: $19.77 |
| 54 |
76-3430 |
ROD-TRACTION Price: $79.20 |
| 55 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 56 |
3211-6 |
SCREW-HH Price: $3.87 |
| 57 |
3256-45 |
WASHER-FLAT Price: $0.28 |
| 58 |
76-3370 |
BUSHING Price: $7.93 |
| 59 |
3256-76 |
WASHER-FLAT Price: $1.42 |
| 60 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 61 |
76-3340 |
LINK *R Price: $61.84 |
| 62 |
76-3330 |
DISCONTINUED Price: Call Us |
