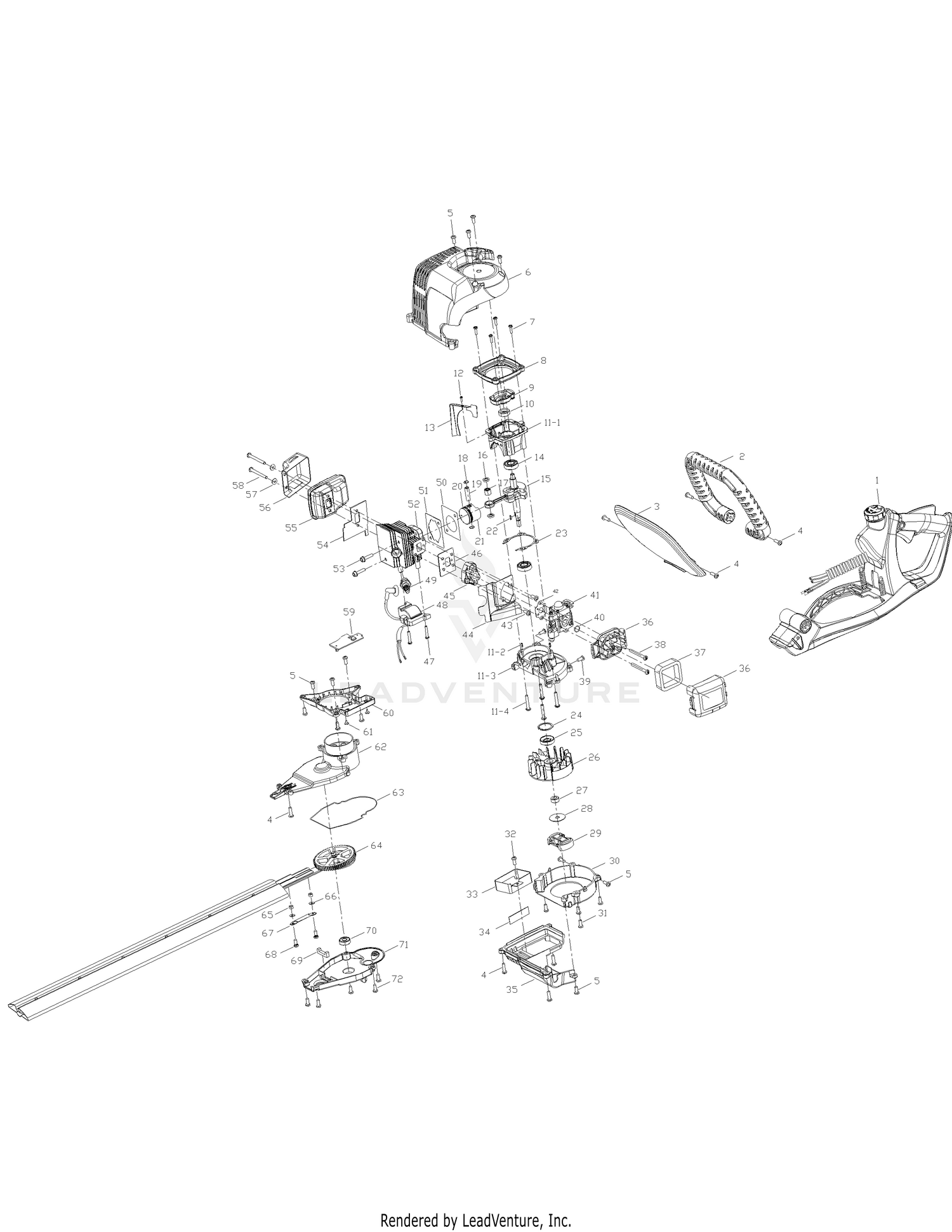

General Assembly
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 1 | MC-9228-MD2004 | HOUSING ASSEMBLY Not Available Price: |
| 2 | MC-9068-MD2001 | HANDLE Not Available Price: |
| 3 | MC-9263-MD2001 | GUARD Not Available Price: |
| 4 | MC-9SGKBY10/14-0.625 | SCREW Price: Call Us |
| 5 | 710-04507 | SCREW Not Available Price: |
| 6 | MC-9228-MD2012 | STARTER HS Not Available Price: |
| 7 | MC-9SGKBM04-12 | SCREW Not Available Price: |
| 8 | MC-9081-MD1801 | CONNECTOR Not Available Price: |
| 9 | MC-9228-MD2017 | PAWL ASSEMBLY Not Available Price: |
| 10 | MC-9157-332101 | OIL SEAL Not Available Price: |
| 11 | 753-04839 | CASE ASSEMBLY-CRANK Not Available This part replaces MC-9228-MD0109. Price: |
| 12 | MC-9SQKB-04-08 | SCREW Not Available Price: |
| 13 | MC-9082-MD2003 | CYLINDER BAFFLE Not Available Price: |
| 14 | MC-9DB-600102 | BALL BEARING Not Available Price: |
| 15 | MC-9228-MD0112A | CRANK/ROD Not Available Price: |
| 16 | MC-9057-MD0201 | SPACER Not Available Price: |
| 17 | MC-9NR-081190 | NEEDLE BEARING Not Available Price: |
| 18 | MC-9131-MD0101 | CLIP Not Available Price: |
| 19 | 9115-MD1501 | PISTON PIN Not Available Price: |
| 20 | MC-9189-MD1501 | PISTON RING Not Available Price: |
| 21 | MC-9290-MD1501 | PISTON Not Available Price: |
| 22 | MC-9221-310001 | KEY Not Available Price: |
| 23 | MC-9014-MD0102 | CRANKCASE GASKET Not Available Price: |
| 24 | MC-9CB-28 | CLIP-C Not Available Price: |
| 25 | MC-9157-MD1501 | OIL SEAL Not Available Price: |
| 26 | MC-9151-MD0103 | FLYWHEEL Not Available Price: |
| 27 | MC-9131-MD0201 | SPACER Not Available Price: |
| 28 | MC-9057-332101 | WASHER Not Available Price: |
| 29 | MC-9228-MD2006 | CLUTCH ASSEMBLY Not Available Price: |
| 30 | MC-9017-MD2003 | CRANKCASE COVER Not Available Price: |
| 31 | MC-9SKKB-05-16 | SCREW Not Available Price: |
| 32 | MC-9SKKBB04-10 | SCREW Not Available Price: |
| 33 | MC-9082-MD2002 | BAFFLE Not Available Price: |
| 34 | MC-9082-MD2006 | BAFFLE Not Available Price: |
| 35 | MC-9017-MD2010 | ENGINE CVR Not Available Price: |
| 36 | MC-9228-MD1507 | AIR CLEANE Not Available Price: |
| 37 | MC-9183-MD0101 | AIR FILTER Not Available Price: |
| 38 | MC-9SKKBM05-64 | SCREW Not Available Price: |
| 39 | MC-6SDAB-05-08 | SCREW Not Available Price: |
| 40 | MC-9012-MD0101 | O-RING (AIR) Not Available Price: |
| 41 | MC-9287-MD1501 | CARBURETOR Not Available Price: |
| 42 | MC-9014-MD2007 | GASKET/CAR Not Available Price: |
| 43 | MC-9SKKB-05-19 | SCREW Not Available Price: |
| 44 | MC-9211-MD2001 | PLATE Not Available Price: |
| 45 | MC-9072-MD1501 | INSULATOR Not Available Price: |
| 46 | MC-9014-MD1504 | GASKET-INSULATOR Not Available Price: |
| 47 | MC-9SQKBM04-20 | SCREW Not Available Price: |
| 48 | MC-9228-MD1802 | IGN ASSEMBLY Not Available Price: |
| 49 | 791-610311B | SPARK PLUG Price: $13.23 |
| 50 | MC-9014-MD2006 | GASKET/CYL Not Available Price: |
| 51 | MC-9014-MD1505 | GASKET Not Available Price: |
| 52 | MC-9292-MD1501 | CYLINDER Price: Call Us |
| 53 | MC-9SRCB-05-22 | SCREW Not Available Price: |
| 54 | MC-9014-MD2002 | GASKET/MUF Not Available Price: |
| 55 | MC-9228-MD2008 | MUFFLER AS Not Available Price: |
| 56 | MC-9082-MD2005 | BAFFLE Not Available Price: |
| 57 | MC-9WFB-5.64-12 | WASHER Not Available Price: |
| 58 | MC-9SXMBJ05-53 | SCREW Not Available Price: |
| 59 | MC-9017-MD2004 | COVER Not Available Price: |
| 60 | MC-9072-MD2001 | BRAKE COVER Not Available Price: |
| 61 | MC-9SLAZB2.5-6 | SCREW Not Available Price: |
| 62 | MC-9228-MD2013 | BRAKE ASSEMBLY Not Available Price: |
| 63 | MC-9014-MD2003 | GASKET Not Available Price: |
| 64 | MC-9228-MD2014 | GEAR ASS'Y Not Available Price: |
| 65 | MC-9062-MD2001 | SPACER Not Available Price: |
| 66 | MC-9WFB-5.1-18 | WASHER Not Available Price: |
| 67 | MC-9158-MD2003 | STEEL BOAR Not Available Price: |
| 68 | MC-9SXQAB05-20 | SCREW Not Available Price: |
| 69 | MC-9157-MD2001 | FELT Not Available Price: |
| 70 | MC-6MB-608-06 | BEARING Not Available Price: |
| 71 | MC-9217-MD2002 | PLATE Not Available Price: |
