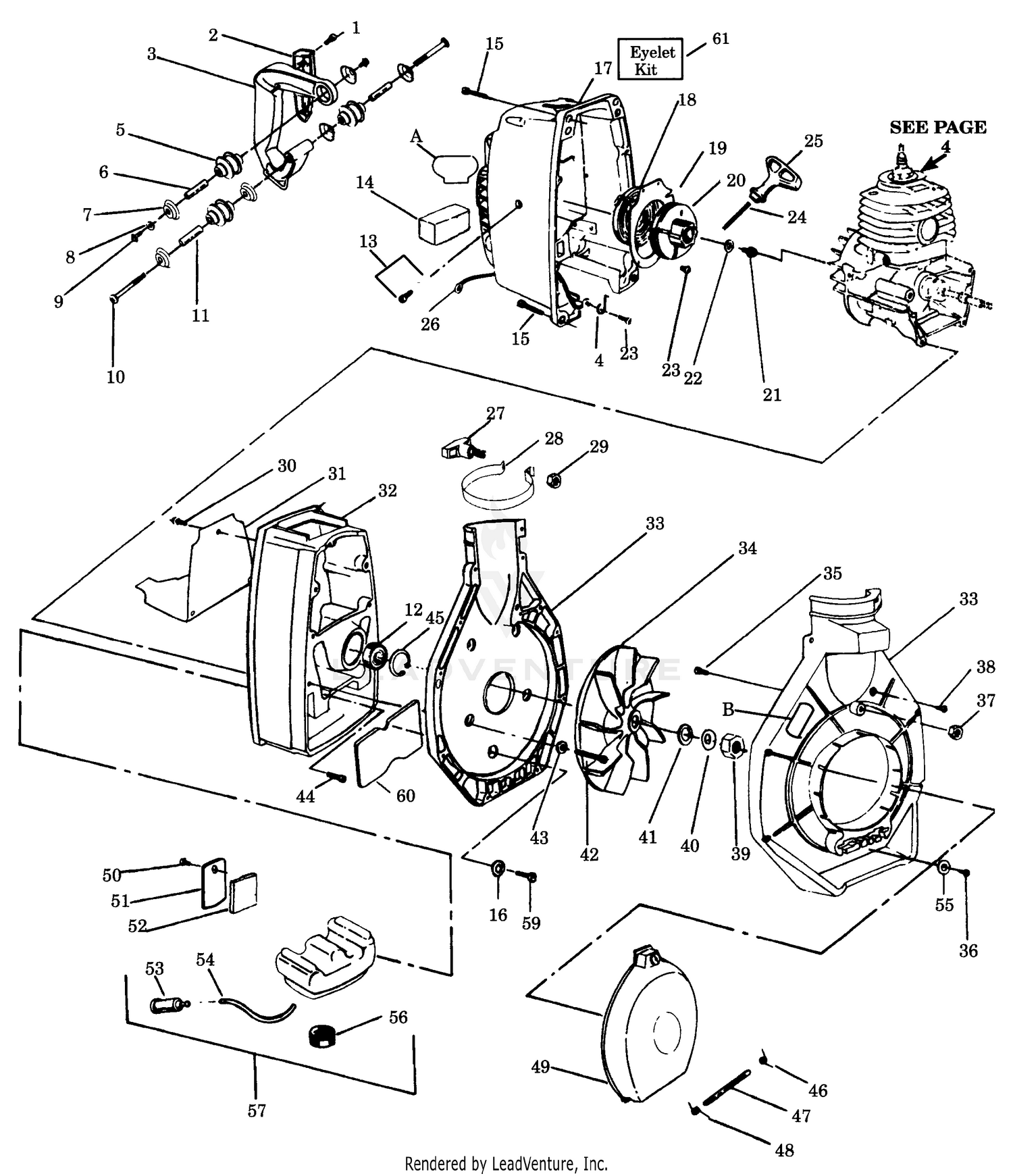

BLOWER ASSEMBLY
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| A | 530027769 | Instruction Decal Price: $3.33 |
| B | 530026925 | Blower/Vac Warning Decal Price: $3.33 |
| 1 | 530015635 | Screw Price: $1.99 |
| 1 | SGH08010-03 | HEAD-TINE, ADAPTER Price: $248.42 |
| 2 | 530094212 | Handle Cover Price: $3.99 |
| 2 | SG715706 | SHANK-ADAPTER Price: $16.94 |
| 3 | 530010827 | Handle Ass'y. Price: $11.99 |
| 4 | 530027157 | Static Ground Wire Price: $3.99 |
| 5 | 530026994 | Handle Isolator Price: Call Us |
| 6 | 530015343 | Isolator Spacer (Front) Price: $2.99 |
| 7 | 530026163 | Isolator Cup Price: $1.99 |
| 8 | 530015629 | Washer Price: $1.99 |
| 9 | 530015628 | Screw Price: $0.99 |
| 10 | 530015561 | Screw Price: Call Us |
| 11 | 530015342 | Isolator Spacer (Rear) Price: $1.99 |
| 13 | 530015700 | Screw Price: Call Us |
| 14 | 530024371 | Air Filter Price: $2.99 |
| 15 | 530015687 | Screw Price: $1.99 |
| 16 | 530015123 | Washer Price: $1.99 |
| 17 | 530029080 | Fan Housing Price: $3.33 |
| 18 | 545008007 | SPRING-STARTER This part replaces 530042023. Price: $5.23 |
| 19 | 530026780 | Air Baffle Price: $2.99 |
| 20 | 530069288 | Starter Pulley This part replaces 530069200. Price: $4.99 |
| 21 | 530015479 | Screw Price: $3.99 |
| 22 | 530015123 | Washer Price: $1.99 |
| 23 | 530015544 | Screw Price: $0.99 |
| 24 | 530069232 | Rope Kit Price: $3.99 |
| 25 | 530027569 | Handle-Starter This part replaces 530026735. Price: $1.99 |
| 26 | 530027175 | Ground Wire Price: $1.25 |
| 27 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 28 | 530095592 | Clamp-Blower Tube This part replaces 530094222. Price: $3.99 |
| 29 | 530015197 | Nut Price: $1.99 |
| 30 | 530015636 | Screw Price: $1.99 |
| 31 | 530026776 | Heat Deflector Price: $4.99 |
| 34 | 530094215 | Impeller Price: Call Us |
| 35 | 530015661 | Screw Price: $0.99 |
| 36 | 534222402 | SCREW This part replaces 530015495. Price: $1.99 |
| 37 | 530001543 | Nut Price: Call Us |
| 38 | 530015814 | Screw-Line Limiter This part replaces 530015367. Price: $1.99 |
| 39 | 530015644 | Nut Price: $2.99 |
| 40 | 530015441 | Washer Price: $1.99 |
| 41 | 530016030 | Washer This part replaces 530347987. Price: $1.99 |
| 42 | 530015632 | Screw Price: $0.82 |
| 43 | 530015149 | Washer This part replaces 530015682. Price: $1.99 |
| 44 | 530015168 | Screw Price: $1.46 |
| 45 | 530001516 | Shroud Bearing Retainer Price: $1.99 |
| 46 | 530015667 | Spring-Tension (Right) Price: $2.99 |
| 47 | 530015647 | Pivot Pin Price: $0.99 |
| 48 | 530015672 | Spring-Tension (Left) Price: $2.99 |
| 49 | 530094241 | Inlet Door Ass'y. Price: $7.99 |
| 50 | 530015638 | Screw Price: $0.99 |
| 51 | 530015637 | Fuel Tank Retainer Price: $1.99 |
| 52 | 530026781 | Fuel Tank Cushion Price: $1.99 |
| 53 | 530095646 | Assy-Fuel Pickup This part replaces 530010897. Price: $2.99 |
| 54 | 530069247 | Line Kit Price: $3.99 |
| 55 | 530015382 | Washer Price: Call Us |
| 59 | 530015683 | Screw Price: $0.99 |
| 60 | 530027350 | Fuel Tank Shield Price: $1.99 |
| 61 | 530069235 | Eyelet Kit Price: $3.99 |
