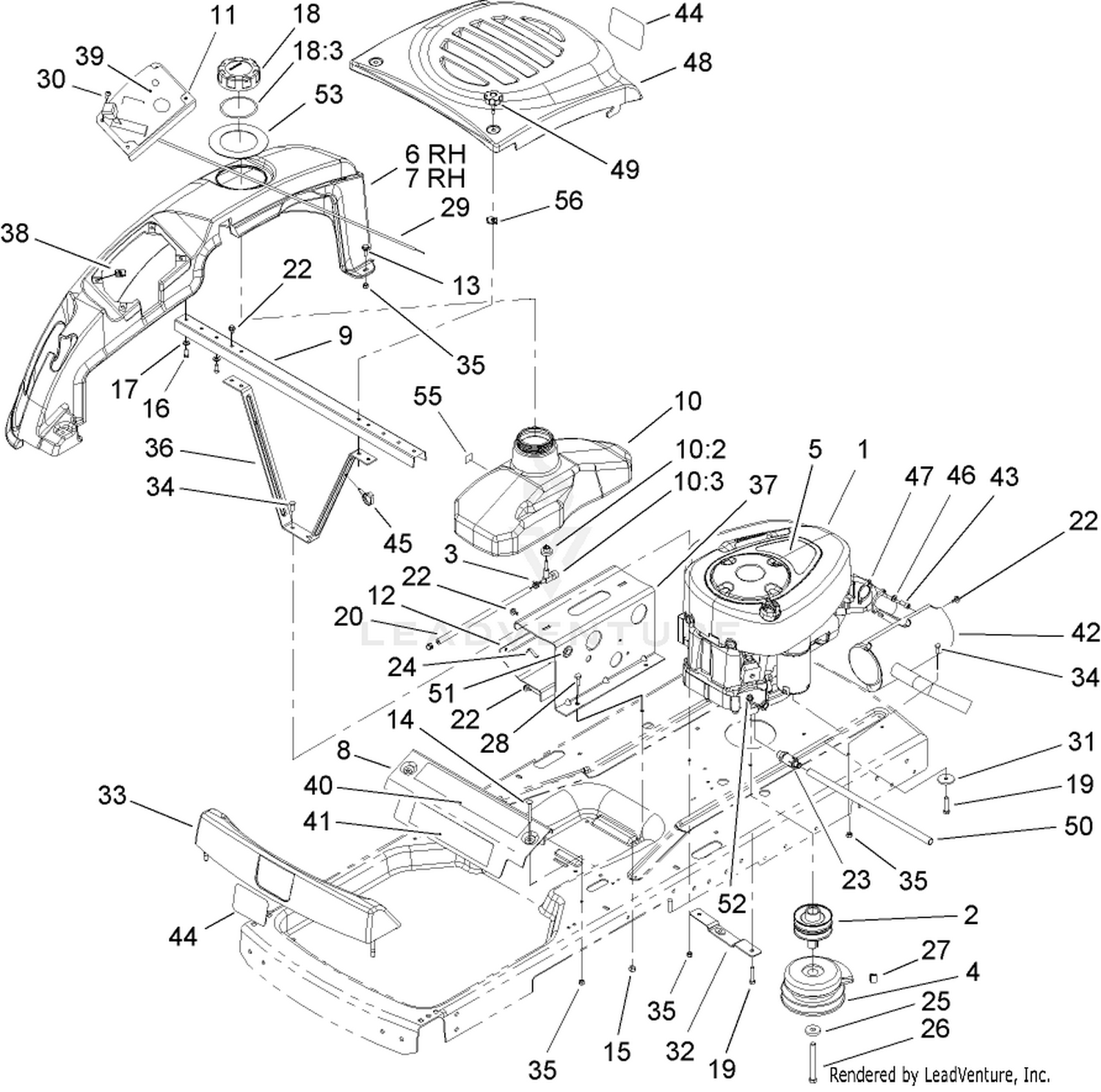

Engine Assembly
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 105-3472 | PULLEY-ENGINE Price: $140.16 |
| 3 | 2412-98 | CLAMP-HOSE Price: $1.39 |
| 4 | 104-3334 | CLUTCH-ELECTRIC Price: $315.91 |
| 5 | 106-6409 | DECAL-ENGINE Price: $6.37 |
| 6 | 106-2161 | COVER-SIDE, RH Price: $178.05 |
| 8 | 106-2164-03 | BRACKET-SUPPORT, FRONT Price: $26.40 |
| 9 | 108-2313-03 | CHANNEL-CROSS This part replaces 106-2165-03. Price: $38.79 |
| 10 | 105-3464 | DISCONTINUED Price: Call Us |
| 11 | 106-2167-03 | PANEL-CONTROL Price: $14.20 |
| 12 | 105-3453-03 | DISCONTINUED Price: Call Us |
| 13 | 11-9030 | SCREW-SHOULDER Price: $5.63 |
| 14 | 3229-7 | SCREW-CARR Price: $0.87 |
| 15 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 16 | 46-8090 | SCREW-PLASTITE Price: $1.84 |
| 17 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 18 | 88-3980 | GAS CAP ASM Price: $31.99 |
| 19 | 322-7 | SCREW-HH Price: $0.89 |
| 20 | 106-8720 | DISCONTINUED Price: Call Us |
| 22 | 46-8560 | SCREW-HHFTF Price: $1.79 |
| 23 | 92-6877 | VALVE-DRAIN, OIL Price: $38.99 |
| 24 | 609830 | SPRING Price: $3.26 |
| 25 | 112843 | WASHER Price: $2.16 |
| 26 | 3212-16 | SCREW-HH Price: $1.56 |
| 27 | 98-5023 | BUMPER Price: $4.36 |
| 28 | 322-4 | SCREW-HH Price: $0.35 |
| 29 | 104-3626 | CABLE-THROTTLE Price: $48.15 |
| 30 | 3258-166 | SCREW-PRH Price: $0.28 |
| 31 | 62-7190 | SPACER-STEEL Price: $3.87 |
| 32 | 106-2156 | PLATE-MOUNT, IDLER Price: $21.27 |
| 33 | 105-6965 | FOOTREST ASM Price: $115.16 |
| 34 | 321-4 | SCREW-HH Price: $0.99 |
| 35 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 36 | 106-6994-03 | BRACE ASM Price: $25.36 |
| 37 | 107-2485-03 | DISCONTINUED Price: Call Us |
| 38 | 107069 | CLIP Price: $1.79 |
| 39 | 106-2224 | DECAL-CONTROL Price: $20.60 |
| 40 | 107-7398 | DECAL-DANGER Price: $9.51 |
| 41 | 106-6992 | DECAL Price: $4.72 |
| 42 | 106-7007 | MUFFLER Price: $270.35 |
| 43 | 3274-10 | SCREW-HSH Price: $0.47 |
| 44 | 105-6971 | DECAL Price: $5.04 |
| 45 | 105-1853 | CLAMP-HOSE Price: $3.49 |
| 46 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 47 | 88-4410 | GASKET-EXHAUST Price: $10.68 |
| 48 | 106-2163 | DISCONTINUED Price: Call Us |
| 49 | 106-7017 | KNOB Price: $13.18 |
| 50 | 106-7022 | TUBE-DRAIN, OIL Price: $8.99 |
| 51 | 237-124 | GROMMET Price: $2.30 |
| 52 | 32128-25 | NUT-HF Price: $3.19 |
| 53 | 106-7042 | SEAL-RUBBER Price: $6.25 |
| 55 | 104-2488 | FOAM-SWITCH, SEAT Price: $4.36 |
