| Ref | Part Number | Description |
|---|
| 1 |
100-8008-03 |
HUB-WHEEL Price: $372.27 |
| 1 |
182032 |

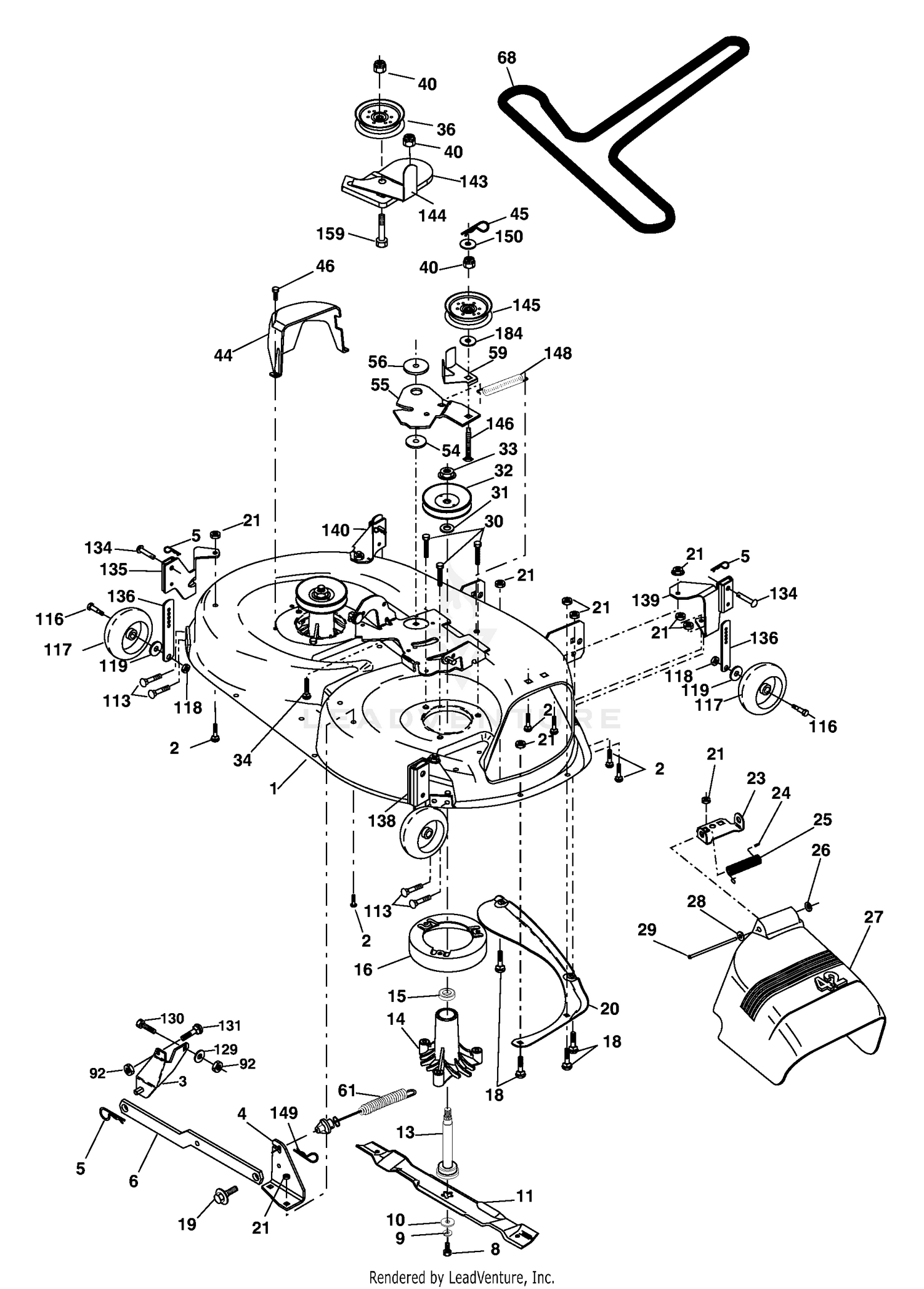

Mower Deck Assembly, 42" Price: Call Us |
| 2 |
3272-13 |
PIN-COTTER Price: $0.25 |
| 2 |
72140506 |
Bolt Price: Call Us |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
99-3139 |
NUT Price: $16.11 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
83-2720 |
BOLT-LUG Price: $3.69 |
| 5 |
325-5 |
SCREW-HH Price: $1.20 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 7 |
108-1524-01 |
RH MOTOR HOUSING ASM Price: $726.13 |
| 8 |
114-4700 |
MOTOR-HYDRAULIC This part replaces 100-3908. Price: $3,069.55 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
11-5790 |
KEY-SQUARE Price: $17.50 |
| 10 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 11 |
108-1525-01 |
LH MOTOR HOUSING ASM Price: $726.13 |
| 12 |
100-2508 |
WASHER-THRUST Price: $24.09 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
340-97 |
FITTING-ELBOW, 90 DEG Price: $36.21 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
323-8 |
SCREW-HH Price: $1.20 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 16 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 17 |
92-6050-03 |
GUARD ASM Price: $204.68 |
| 18 |
100-4166-03 |
BRACKET-BUMPER Price: $293.80 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
2412-126 |
R-CLAMP Price: $2.51 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
73680500 |
Nut Price: Call Us |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
323-6 |
SCREW-HH Price: $0.66 |
| 28 |
100-8000 |
FITTING-BULKHEAD Price: $206.47 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 29 |
100-8001 |
FITTING-BULKHEAD Price: $230.45 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 30 |
100-3920-01 |
BRACKET-BULKHEAD Price: $20.18 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 31 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
340-70 |
NUT-LOCK Price: $2.10 |
| 33 |
100-2543 |
INNER TUBE ASM Price: $158.49 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
100-2544 |
OUTER TUBE ASM Price: $358.51 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 35 |
340-115 |
FITTING-TEE, SWIVEL NUT Price: $56.09 |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
322-2 |
SCREW-HH Price: $0.69 |
| 37 |
100-2546-01 |
BRACKET-BLOCK Price: $52.01 |
| 38 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 39 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 40 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 41 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 42 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
141043 |
Guard TUV Idler Price: Call Us |
| 61 |
174882 |
Spring Ext Elect. Clutch Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex w/Ins. 3/8-16 unc Price: Call Us |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 129 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 130 |
74780616 |
Bolt Fin HEx 3/8-16 unc x 1 Gr. 5 Price: Call Us |
| 131 |
72140608 |
Bolt RDHD SQNK 3/8-16 unc x 1 Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765 |
Bracket Asm. Whl Ga. R LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763 |
Bracket Asm Whl Ga. R RH Price: Call Us |
| 139 |
159767 |
Bracket Asm. Whl Ga. F RH Price: Call Us |
| 140 |
159768 |
Bracket Asm Whl Ga. F LH Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
