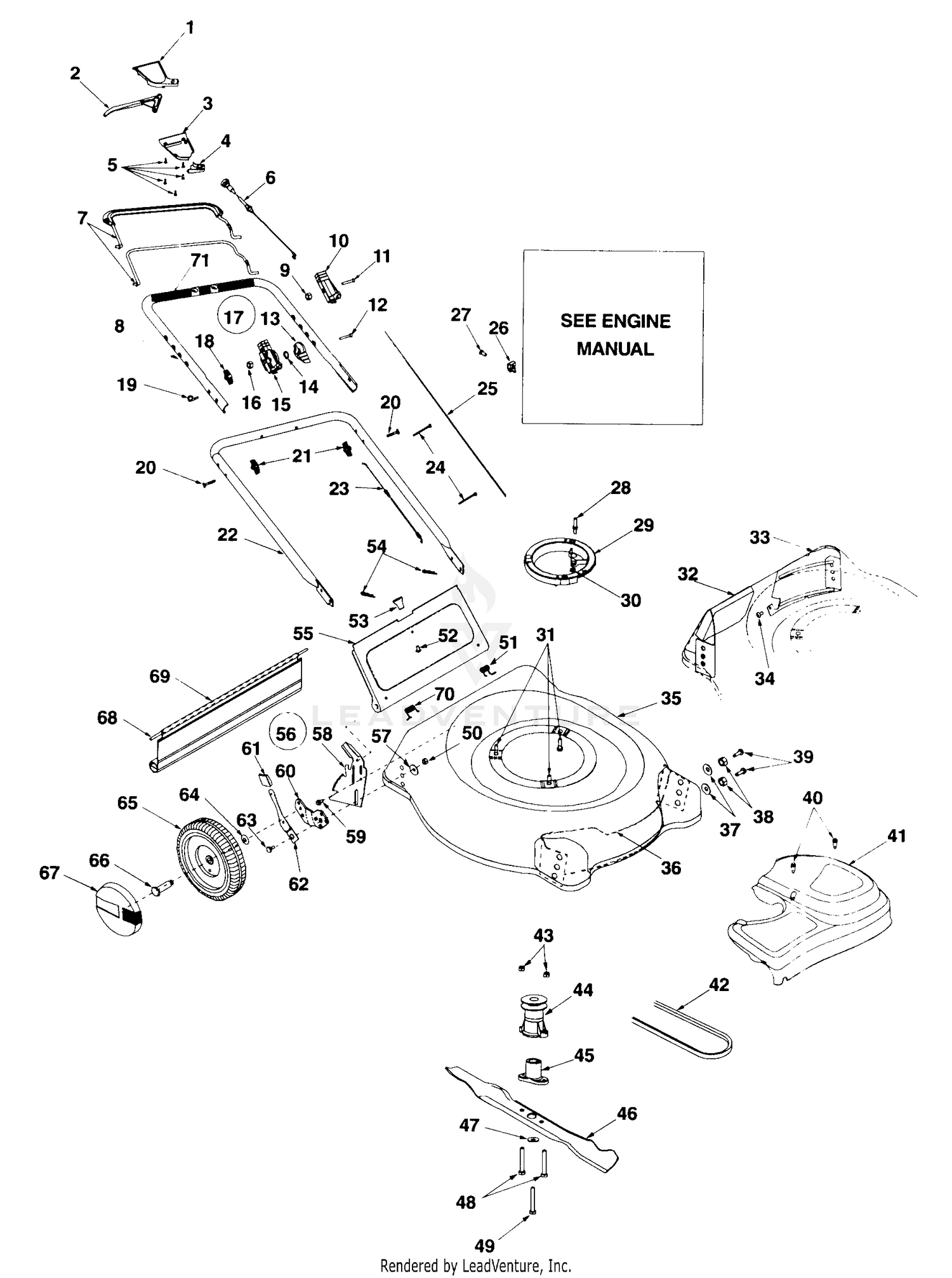

General Assembly

General Assembly

Parts (60)

RefPart NumberDescription
1 753-0833 Control Cover Half-Lower This part replaces 731-1057. Price: $47.34
2 731-0620A Drive Control This part replaces 731-0620. Price: $13.59
3 753-0833 Control Cover Half-Lower This part replaces 731-1058. Price: $47.34
4 753-0833 Control Cover Half-Lower This part replaces 731-1059. Price: $47.34
5 710-1667A Screw #10-12:75 Price: $3.82
6 946-0960 Drive Cable This part replaces 746-0960. Price: $43.48
7 747-0824B-0637 Std. Control Handle This part replaces 747-0824. Price: $57.85
8 749-1230A-0637 UPPER HANDLE Not Available This part replaces 749-1230. Price:
9 712-0324 Hex Lock Nut 1/4-20 Price: $3.38
10 746-0883 Control Hsg. Price: $15.66
11 710-1270 SCREW 1/4-20 x 1.310 Not Available Price:
16 712-0324 Hex Lock Nut 1/4-20 Thd. Price: $3.38
18 720-0279 Knob Price: $3.93
19 710-1205 Eye Bolt 1/4-20 Price: $3.53
20 710-1174 Carriage Bolt 5/16-18 x 2.0 Price: $6.28
21 720-0314 Knob Price: $5.31
22 749-0928A-0637 Lower Handle This part replaces 749-0928. Price: $29.67
24 725-0157 Cable Tie This part replaces 726-0240. Price: $3.46
25 946-0553 Control Cable This part replaces 746-0553. Price: $22.66
28 711-1293 Pin-Belt Keeper Price: $4.21
29 631-0075B ENGINE SPACER ASSEMBLY Not Available This part replaces 631-0075A. Price:
30 712-0271 Hex Nut 1/4-20 Thread Price: $3.78
31 710-1008 Tapp Screw w/ Hex Lock Wash Price: $4.75
32 782-5004B Mulching Baffle - R.R. This part replaces 782-5004. Price: $21.86
33 782-5003A LH Rear Baffle This part replaces 782-5003. Price: $26.48
34 710-1017 Scr. AB: 1/4-14 .625 Trust Price: $7.26
36 782P5002B FRONT BAFFLE Not Available This part replaces 782-5002. Price:
37 712-0798 Hex Nut 3/8-16 Price: $3.86
38 736-0331 Bell Washer .39 x 1.13 x .062 Price: $3.50
39 710-0216 Hex Screw 3/8-16 x .75 Price: $3.93
40 710-1650 Shoulder Screw # 12 -24 This part replaces 7510042824. Price: $4.22
41 931-05132A TRANSMISSION COVER (BLACK) Not Available This part replaces 731-1936A. Price:
42 954-04032B Drive Belt This part replaces 754-0465. Price: $23.31
43 712-0324 Hex Lock Nut 1/4-20 Price: $3.38
44 756-1146A Drive Pulley Price: $50.73
45 753-05151 Blade Adapter This part replaces 748-0411. Price: $59.40
47 736-0452 Bell Washer .396 I.D. x 1.140 O.D. x Price: $4.05
48 710-0606 Hex Screw 1/4-2 Ox 1.50 Price: $4.67
49 710-1257 Hex Screw 3/8-24 x 2.50 Price: $7.02
50 712-3005 Hex Nut 3/8-16 Price: $5.99
51 932-0677 SPRING-DOOR (LH) Not Available This part replaces 732-0677. Price:
52 710-0192 Scr. Tr. Mach #10-24 x .380 Price: $3.08
53 720-0275 KNOB Not Available Price:
54 714-0104 Cotter Pin Price: $3.90
55 782-7000 REAR DISCHARGE DOOR Not Available Price:
56 753-05994 KIT-HANDLE BRACKET Not Available This part replaces 682-0515. Price:
57 936-0356 BELL WASHER Not Available This part replaces 736-0356. Price:
58 753-05994 KIT-HANDLE BRACKET Not Available This part replaces 682-0513. Price:
59 710-0896 Hex Screw w/wsh. 1/4-14 x .62 Price: $3.86
60 14766 BAR-PIVOT (LH) *ON Not Available Price:
61 731-13116-1 HEIGHT ADJUSTMENT KNOB This part replaces 720-0190. Price: $12.01
62 732-0417A SPRING LEVER Not Available Price:
63 738-0507B Shldr Screw .500 Dia x .434 Long Price: $3.86
64 736-0105 Bell Washer .380 x .880 x .062 Price: $3.96
65 634-0020 Wheel 8 x 1.75 Disk Bar Grey Price: $35.05
66 738-0102 Shldr Screw .498 x 1.445 Price: $9.22
67 920-0249 HUB CAP Not Available This part replaces 720-0249. Price:
68 732P0700 TRAILSHIELD WIRE This part replaces 732-0700. Price: $3.85
69 731-04998 Rear Trailing Shield This part replaces 731-1236. Price: $27.86
70 732-0678 Torsion Spring R.H. Price: $7.13
