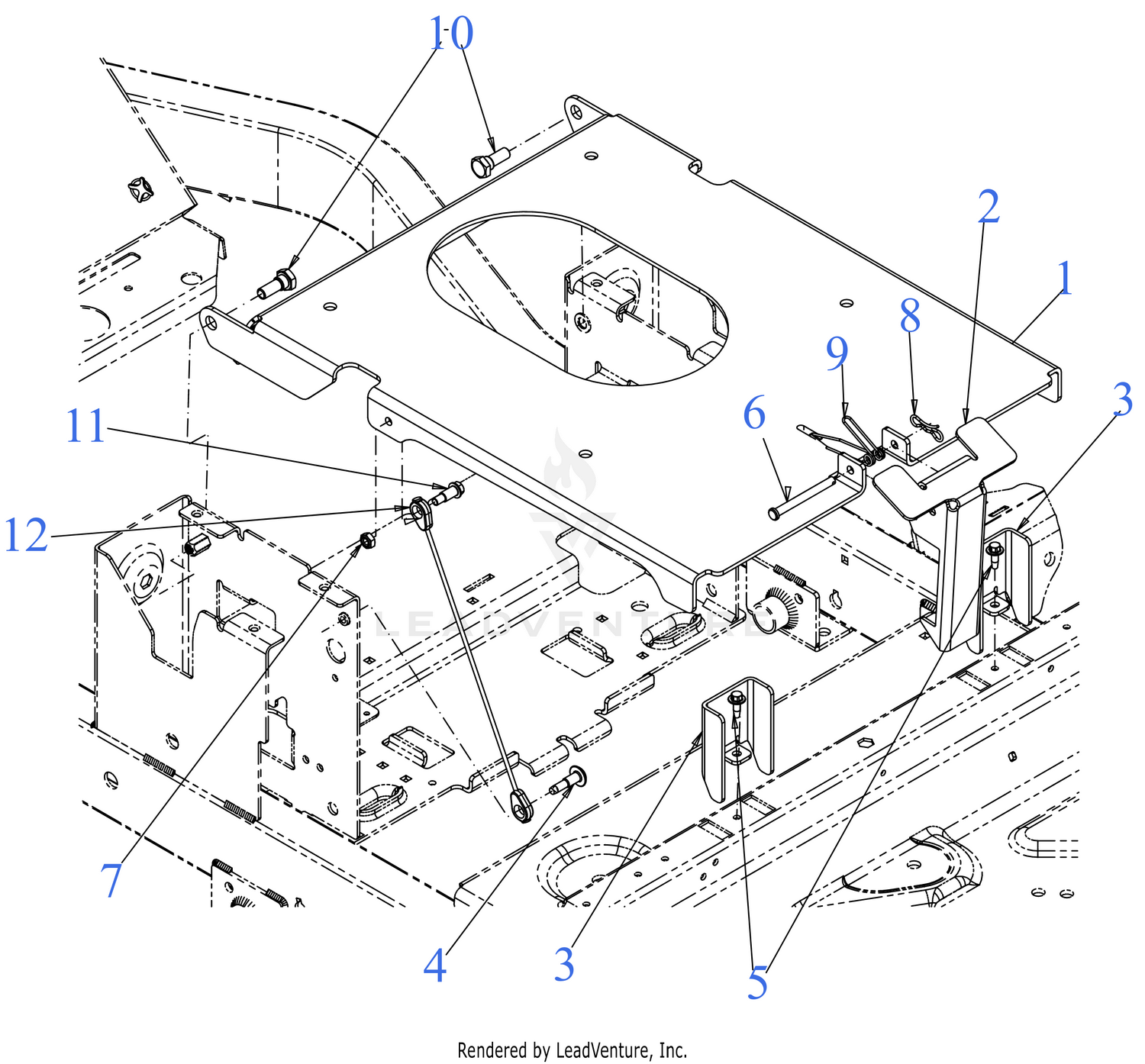

Seat Pan
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 703E16361 | SEAT LATCH BRACKET Price: $19.71 |
| 3 | 703E16921 | SEAT SUPPORT Price: $12.31 |
| 4 | 753-06563 | BOLT 1/4-20 Price: $2.32 |
| 5 | 710-1260A | SCREW 5/16-18 x .750 Price: $3.34 |
| 6 | 711-06742 | CLEVIS PIN .248 x 2.345 Price: $4.55 |
| 7 | 712-05106 | HEX NUT 1/4-20 Price: $2.72 |
| 8 | 714-04040 | BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 9 | 732-04864A | SPRING Price: $6.03 |
| 10 | 738-0296 | SHOULDER SCREW .437 Price: $3.93 |
| 11 | 738-04395 | SHOULDER SCREW Price: $4.04 |
