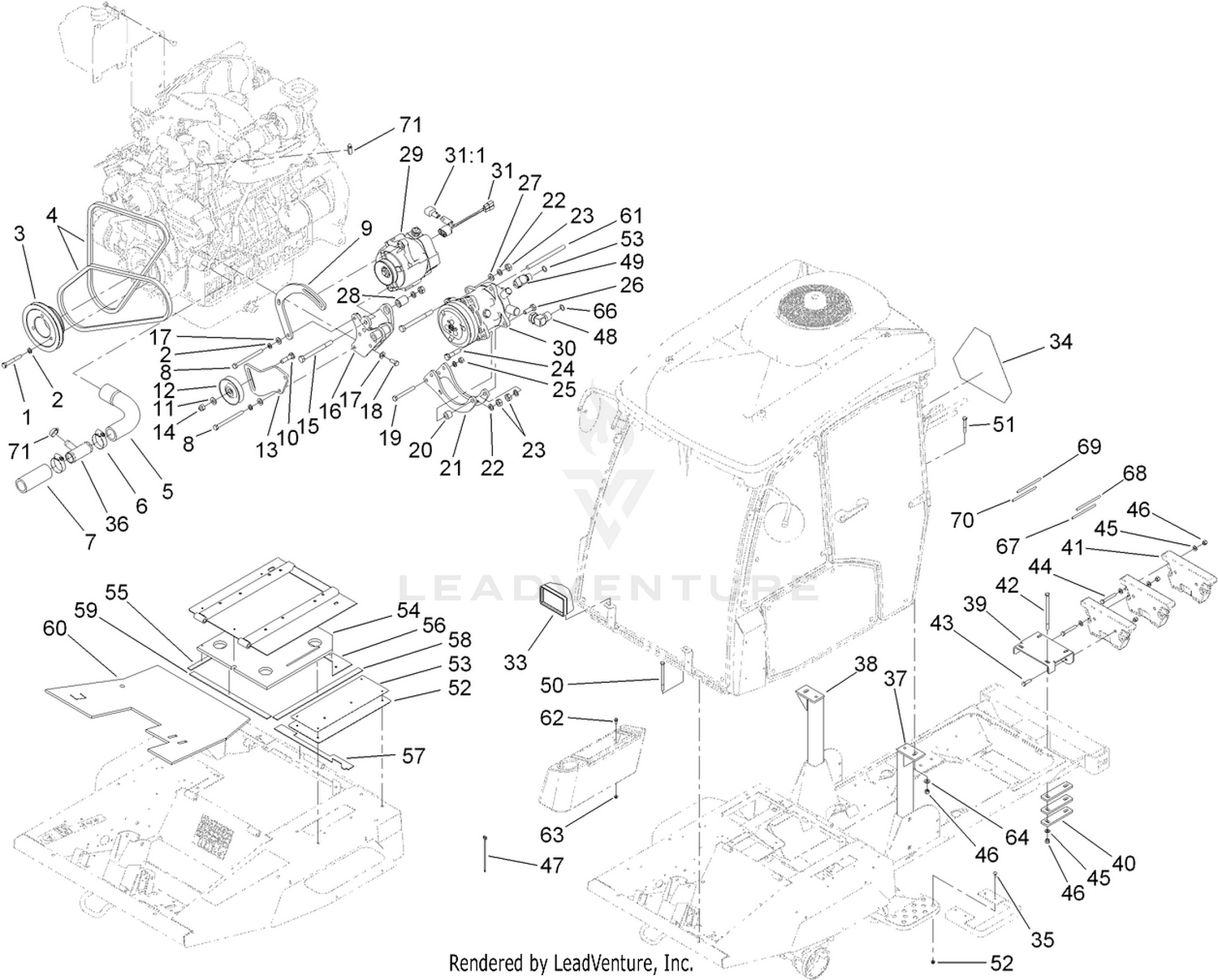

Cab Installation, Alternator and Compressor Assembly
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 33114-060 | SCREW-HH Price: $0.88 |
| 2 | 3253-4 | WASHER-LOCK Price: $0.25 |
| 3 | 115-8493 | PULLEY-SINGLE Price: $322.84 |
| 4 | 117-5674 | V-BELT Price: $44.90 |
| 5 | 119-0102 | HOSE-RADIATOR, LOWER Price: $30.61 |
| 6 | 2412-111 | CLAMP Price: $4.39 |
| 7 | 119-0101 | HOSE-RADIATOR, LOWER Price: $18.57 |
| 8 | 33114-100 | SCREW-HH Price: $1.70 |
| 9 | 117-5655-03 | PLATE-ARM, ALTERNATOR Price: $27.40 |
| 10 | 3231-4 | SCREW-CARR Price: $3.59 |
| 11 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 12 | 62-4530 | PULLEY Price: $26.96 |
| 13 | 117-5656-03 | PLATE-IDLER, BRACKET Price: $54.95 |
| 14 | 112-0236 | NUT-LOCK Price: $0.47 |
| 15 | 33115-110 | SCREW-HH Price: $2.92 |
| 16 | 117-5650-03 | MOUNT-A/C Price: $388.15 |
| 17 | 33094-00 | WASHER-PLAIN Price: $0.25 |
| 18 | 33114-020 | SCREW-HH Price: $0.28 |
| 19 | 33114-070 | SCREW-HH Price: $1.56 |
| 20 | 117-5673 | SPACER Price: $46.69 |
| 21 | 117-5669-03 | ARM-COMPRESSOR Price: $91.51 |
| 22 | 48-9590 | WASHER-LOCK Price: $0.25 |
| 23 | 48-7960 | NUT This part replaces 33015-00. Price: $1.40 |
| 24 | 33115-045 | SCREW-HH Price: $0.61 |
| 25 | 33014-00 | NUT-HEX Price: $0.25 |
| 26 | 33115-030 | SCREW-HH Price: $0.68 |
| 27 | 33095-00 | WASHER-FLAT Price: $0.25 |
| 28 | 117-5652 | SPACER Price: $57.86 |
| 30 | 119-0103 | COMPRESSOR Price: $1,361.16 |
| 31 | 114-3334 | HARNESS-WIRE Price: $85.38 |
| 33 | 114-5928 | HEADLIGHT ASM Price: $245.17 |
| 34 | 120-0250 | DECAL-WARNING Price: $41.33 |
| 35 | 3231-2 | BOLT-CARR Price: $0.81 |
| 36 | 119-0142 | FITTING-RADIATOR Price: $57.79 |
| 37 | 119-0148-03 | MOUNT-LH Price: $245.05 |
| 38 | 119-0149-03 | MOUNT-RH Price: $245.05 |
| 39 | 119-0130-03 | MOUNT-WEIGHT Price: $64.67 |
| 40 | 119-0131-03 | PLATE-WEIGHT Price: $12.58 |
| 41 | 24-5790-03 | WEIGHT-REAR Price: Call Us |
| 42 | 9114314 | SCREW-HH Price: $6.24 |
| 43 | 325-7 | SCREW-HH Price: $1.53 |
| 44 | 325-14 | SCREW-HH Price: $2.64 |
| 45 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 46 | 3296-23 | NUT-LOCK, NI Price: $0.52 |
| 47 | 3290-378 | TIE-CABLE Price: $0.79 |
| 48 | 119-0128 | FITTING-ELBOW, 90 DEG Price: $41.31 |
| 49 | 119-0129 | FITTING-ELBOW, 90 DEG Price: $33.41 |
| 50 | 325-33 | SCREW-HH Price: $11.49 |
| 51 | 112-7264 | SCREW-HH Price: $3.11 |
| 52 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 53 | 117-2779 | O-RING Price: $3.85 |
| 54 | 119-0137 | FOAM-SEAT Price: $27.70 |
| 55 | 119-5345 | SEAL-FOAM Price: $3.27 |
| 56 | 119-5346 | SEAL-FOAM Price: $10.64 |
| 57 | 119-5347 | SEAL-FOAM Price: $4.28 |
| 58 | 119-5348 | SEAL-FOAM Price: $3.27 |
| 59 | 119-5349 | SEAL-FOAM Price: $3.27 |
| 60 | 119-0119 | FOAM-FLOOR Price: $124.01 |
| 61 | 115-8882 | CONDUIT-CONVOLUTED Price: $1.69 |
| 62 | 3234-4 | SCREW-HHF Price: $0.50 |
| 63 | 32128-33 | NUT-HF Price: $0.25 |
| 64 | 107-3395 | WASHER-HARDENED Price: $1.49 |
| 66 | 117-2780 | O-RING Price: $3.33 |
| 67 | 119-5290 | TUBING-CONVOLUTED Price: $14.40 |
| 68 | 119-5294 | TUBING-CONVOLUTED Price: $15.53 |
| 69 | 119-5291 | TUBING-CONVOLUTED Price: $12.28 |
| 70 | 119-5292 | TUBING-CONVOLUTED Price: $12.87 |
