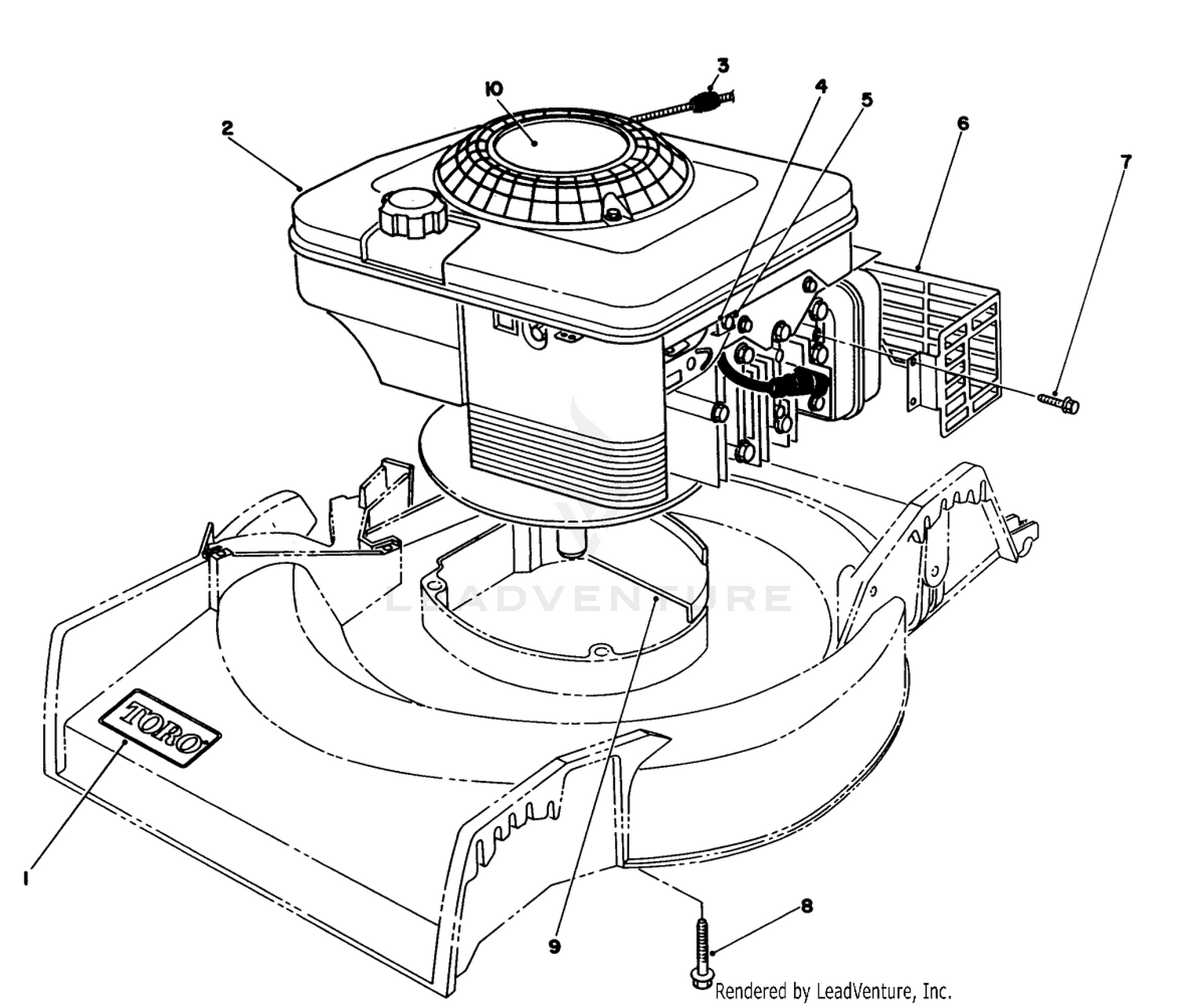

Engine Assembly
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 71-0600 | DECAL Price: $7.93 |
| 3 | 2210-316 | STOP-ROPE Price: $4.41 |
| 4 | 2210-249 | CLAMP-CASING Price: $2.05 |
| 5 | 86-7990 | CLAMP SCREW F/W ENGINE This part replaces 2210-313. Price: $2.05 |
| 6 | 104-7577-03 | SHIELD-MUFFLER This part replaces 82-8550. Price: $16.78 |
| 7 | 104-2065 | SCREW-HWH This part replaces 32144-73. Price: $0.28 |
| 8 | 32144-105 | THD FORM SCREW Price: $4.36 |
| 9 | 27-7470 | HOUSING CAP Price: $3.48 |
