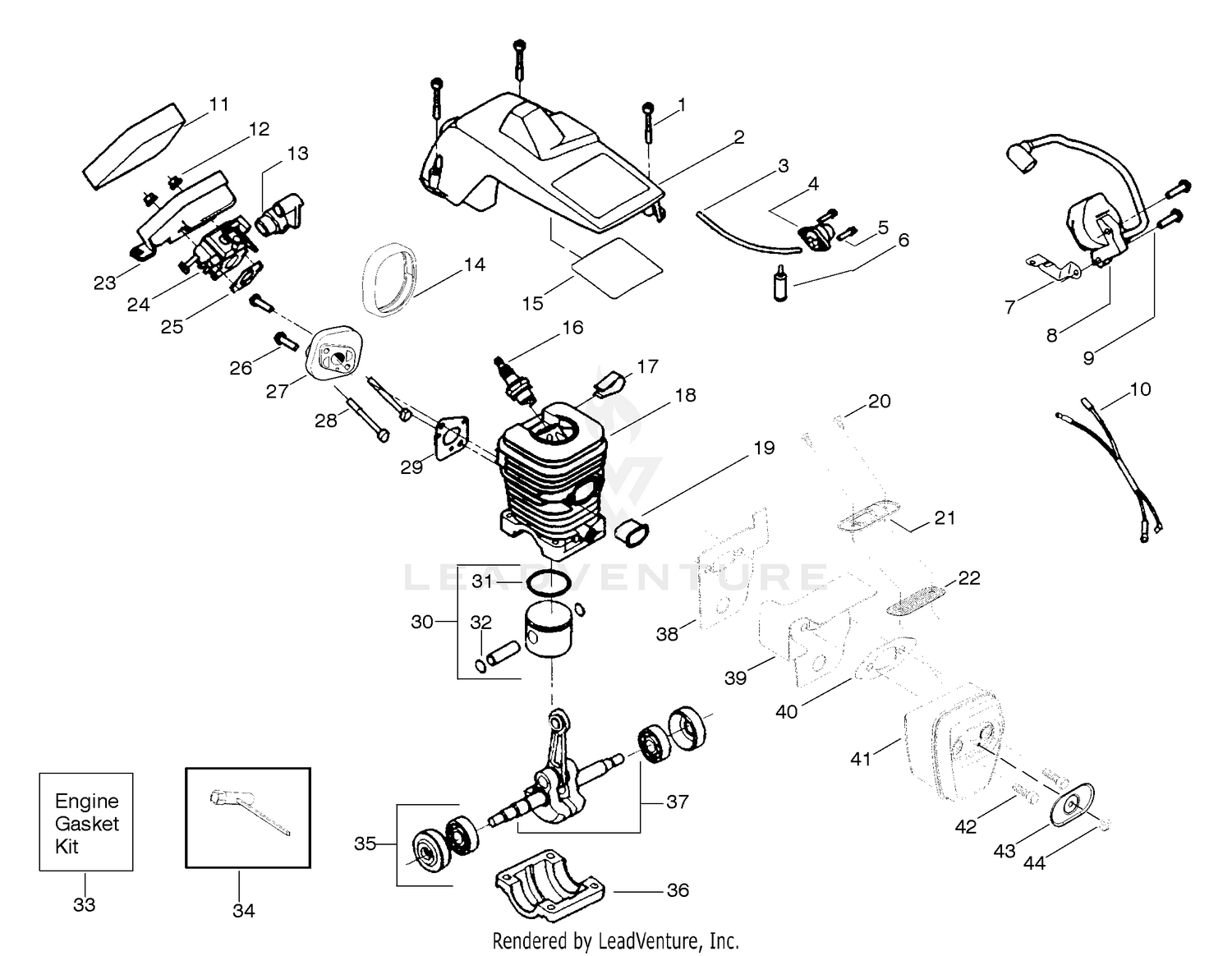

| Ref | Part Number | Description |
|---|
| 1 |
530016153 |
Screw Price: $1.99 |
| 1 |
98-5877-01 |
SCREEN Price: $159.94 |
| 2 |
100-4092-01 |
MOUNT-SPRING Price: $27.55 |
| 3 |
115-4902-01 |
ARM Price: $176.31 |
| 3 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 4 |
115-4901-01 |
STOP Price: $125.20 |
| 4 |
530071835 |
Kit-Purge Bulb This part replaces 530047213. Price: $5.99 |
| 5 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 5 |
530015780 |
Screw Price: $1.99 |
| 6 |
3256-35 |
WASHER-FLAT Price: $0.68 |
| 6 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
| 7 |
324-13 |
SCREW-HH Price: $1.22 |
| 7 |
530047442 |
Strap-Ground Price: $1.99 |
| 8 |
110-9655 |
IDLER ARM ASM Price: $469.90 |
| 8 |
530039198 |
Ignition Module Price: $29.99 |
| 9 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 9 |
530015814 |
Screw Price: $1.99 |
| 10 |
104-0270 |
MOUNT-BEARING Price: $324.50 |
| 10 |
530052296 |
Assy-Wire Harness Price: $4.99 |
| 11 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 11 |
530037793 |
Foam-Air Filter Price: $1.99 |
| 12 |
530016101 |
Nut Price: $1.99 |
| 12 |
92-0625 |
FLAT PULLEY ASM Price: $75.60 |
| 13 |
104-0265 |
SPRING-EXTENSION Price: $66.36 |
| 13 |
530035526 |
Grommet-Carb Adjust Price: Call Us |
| 14 |
323-14 |
SCREW-HH Price: $1.34 |
| 14 |
530054144 |
Seal-Carb Adapter Price: $2.99 |
| 15 |
323-2 |
SCREW-HH Price: $0.68 |
| 15 |
530055698 |
Reflector-Heat Price: $1.99 |
| 16 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 16 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 17 |
530016136 |
Clip-High Tension Lead Price: $1.99 |
| 18 |
530012550 |
Cylinder This part replaces 530071412. Price: $17.99 |
| 19 |
323-7 |
SCREW-HH Price: $0.65 |
| 19 |
530037652 |
Insulator-Heat Price: $1.99 |
| 20 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 20 |
530016351 |
Screw-Outlet cover Price: $1.99 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 21 |
530055759 |
Cover-Outlet Price: $2.99 |
| 22 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 23 |
324-6 |
SCREW-HH Price: $0.81 |
| 23 |
530057480 |
Housing- Air Filter This part replaces 530037804. Price: $4.99 |
| 24 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 24 |
530071410 |
Kit-Carburetor (WT-600) Price: $24.24 |
| 24 |
530071622 |
Kit-Carburetor (WT-637) Price: $34.99 |
| 25 |
530069608 |
Gasket-Carb. Price: $5.99 |
| 25 |
94-8987 |
BEARING Price: $162.04 |
| 26 |
530016386 |
Screw Price: $5.99 |
| 27 |
530049700 |
Carb. Adapter Price: $3.99 |
| 28 |
530016187 |
Screw Price: $1.99 |
| 29 |
530069608 |
Gasket-Carb Adaptor Price: $5.99 |
| 31 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 32 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 34 |
530031163 |
Bar Wrench Price: $4.99 |
| 35 |
530056363 |
Assy-Seal & Bearing Price: $11.99 |
| 36 |
530037935 |
Cap-Crankcase Price: $8.99 |
| 37 |
545113101 |
CRANKSHAFT ASSY This part replaces 530047062. Price: $54.99 |
| 38 |
530054885 |
Backplate Price: $5.99 |
| 39 |
530054880 |
Guide-Outlet Price: $5.99 |
| 40 |
530069608 |
Gasket-Muffler Price: $5.99 |
| 42 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 43 |
530055586 |
Cover-Bolt Price: $0.99 |
| 44 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
