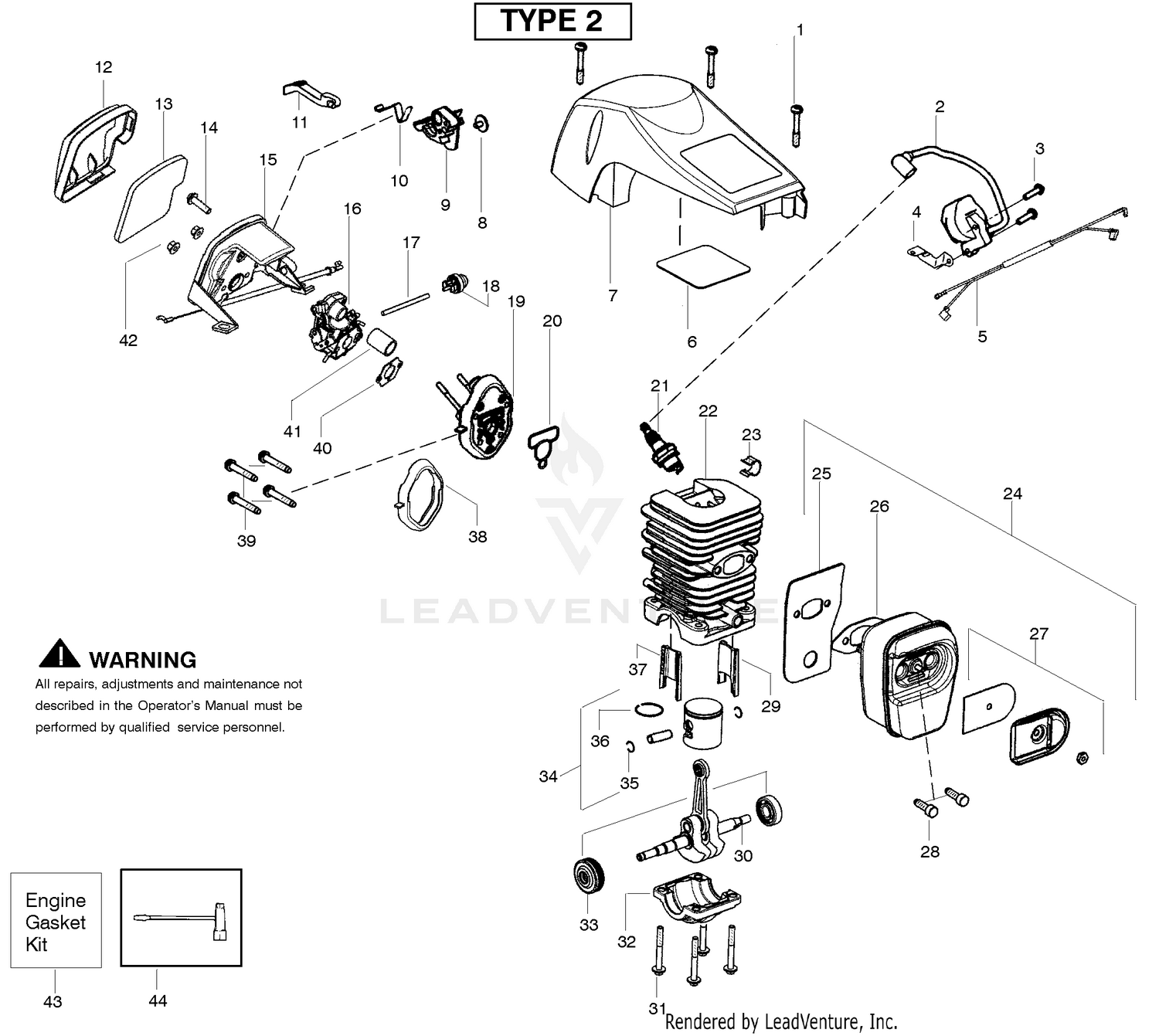

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 1 |
530016153 |
Screw Price: $1.99 |
| 2 |
573992801 |
KIT MODULE & FLYWHEEL This part replaces 530039232. Price: $39.99 |
| 3 |
237-68 |
O-RING Price: $3.22 |
| 3 |
530016432 |
Screw Price: $1.99 |
| 4 |
120-5118 |
SHAFT-ADJUSTER Price: $44.64 |
| 4 |
530058661 |
Strap-Ground Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
530057943 |
Assy-Wire Harness Price: $5.99 |
| 6 |
119-4067 |
SCREW-HH Price: $0.81 |
| 6 |
530055698 |
Reflector-Tape Price: $1.99 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
120-5116 |
WASHER-WAVE Price: $9.17 |
| 8 |
530016080 |
Screw Price: $1.99 |
| 9 |
108-0015 |
WASHER-FLAT Price: $0.39 |
| 9 |
530057891 |
Lever-Ignition Switch Price: $4.99 |
| 10 |
137-6130 |
SCREW-ADJUSTER, BEDBAR This part replaces 115-7039. Price: $25.42 |
| 10 |
530057908 |
Spring-Ignition Switch Price: $2.99 |
| 11 |
119-4155 |
WASHER-HARDENED Price: $4.16 |
| 11 |
530059399 |
Knob-Choke Price: $1.99 |
| 12 |
120-5120 |
SPRING-COMPRESSION Price: $2.89 |
| 12 |
530059001 |
Cover-Air Filter Price: $3.99 |
| 13 |
119-4039 |
NUT-HEX, NI Price: $0.28 |
| 13 |
530057869 |
Filter-Air Price: $1.99 |
| 14 |
530016425 |
Screw Price: $1.99 |
| 15 |
112-1718-01 |
BEDBAR Price: $300.88 |
| 15 |
530150029 |
Housing-Air Filter w/cable Price: $4.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE Price: $0.41 |
| 16 |
545070601 |
Carburetor Zama W-26 This part replaces 530035590. Price: $27.99 |
| 17 |
137-6091 |
BEDKNIFE-EDGEMAX This part replaces 121-3165. Price: $172.72 |
| 17 |
530069247 |
Kit-Fuel Line (Small) Price: $3.99 |
| 18 |
530047721 |
Bulb-Purge "snap-in" Price: $3.99 |
| 20 |
530071894 |
Gasket-cyl. o-ring (kit) Price: $6.99 |
| 21 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
| 23 |
530058660 |
Clip-High Tension Lead Price: $1.99 |
| 24 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 25 |
530057942 |
Backplate-Muffler Price: $5.99 |
| 25 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 26 |
530071894 |
Gasket-Muffler (kit) Price: $6.99 |
| 26 |
69-8980 |
WASHER Price: $0.58 |
| 27 |
120-9941 |
BOLT-BEDBAR Price: $13.66 |
| 27 |
545006056 |
Kit-Spark Arrestor Price: $6.99 |
| 28 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 28 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 29 |
127-4284 |
WASHER-SPECIAL Price: $5.88 |
| 29 |
545015301 |
Insert-Left (black) Cyl. This part replaces 530057885. Price: $2.99 |
| 30 |
115-5258 |
SPRING-WIRE, FLAT Price: $3.40 |
| 30 |
545112901 |
Assy-Crankshaft/Rod This part replaces 530012537. Price: $49.99 |
| 31 |
140-5510 |
BEARING-SEALED, STAINLESS This part replaces 115-3296. Price: $28.48 |
| 31 |
530016417 |
Bolt Price: $1.99 |
| 32 |
115-3299 |
SEAL-FLOCKED Price: $13.85 |
| 32 |
530057941 |
Cap-Crankcase Price: $5.99 |
| 33 |
530056363 |
Assy-Bearing/Seal Price: $11.99 |
| 35 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 36 |
545160401 |
Ring-Piston This part replaces 530038729. Price: $2.99 |
| 37 |
130-0064 |
INSERT-THREADED, 5 INCH (LH) Price: $42.48 |
| 37 |
545015401 |
Insert-Right (gray) Cyl. This part replaces 530057886. Price: $2.99 |
| 38 |
130-0063 |
INSERT-THREADED, 5 INCH (RH) Price: $42.48 |
| 38 |
530071894 |
Seal-Adaptor (kit) Price: $6.99 |
| 39 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 39 |
530016426 |
Screw Price: $1.99 |
| 40 |
530071894 |
Gasket-Carb. (kit) Price: $6.99 |
| 41 |
530057926 |
Tube-Intake Price: $1.99 |
| 42 |
530016101 |
Nut-Carb. Price: $1.99 |
| 44 |
530031163 |
Bar Wrench This part replaces 530031135. Price: $4.99 |
