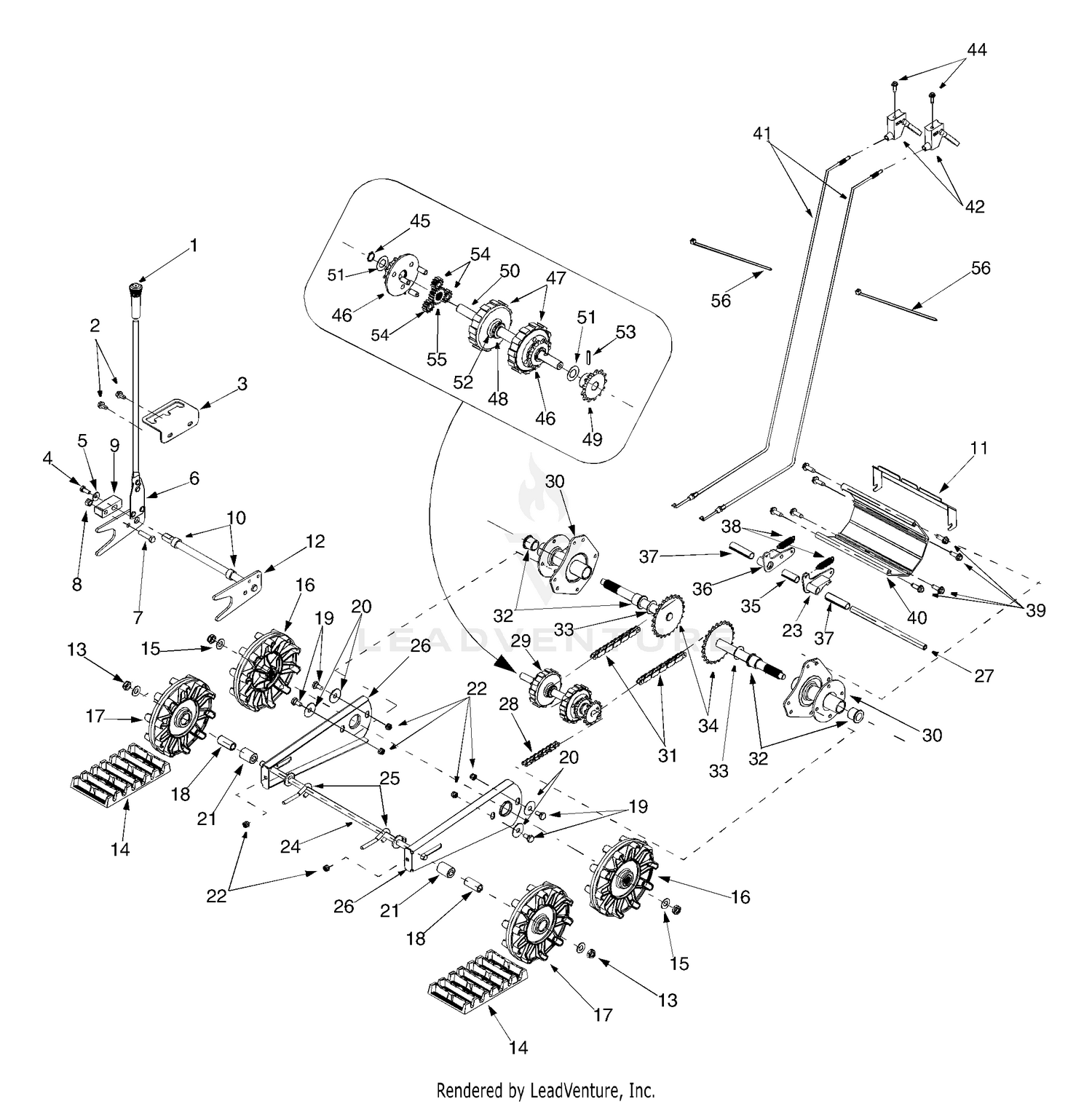

| Ref | Part Number | Description |
|---|
| 1 |
720-0223 |
Grip Price: $12.89 |
| 2 |
710-0726 |
Tap Screw, 5/16-12 x.750 Price: $3.82 |
| 3 |
784-5642 |
TRACK LOCKOUT PLATE Not Available Price: |
| 4 |
710-0157 |
Hex Cap Screw, 5/16-24 x.75 Price: $3.90 |
| 5 |
736-0242 |
Bell Washer,.34 ID x.872 OD Price: $3.75 |
| 6 |
684-0038 |
HANDLE ASSEMBLY Price: $51.65 |
| 7 |
710-0459A |
Hex Cap Screw, 3/8-24 x 1.5 Price: $6.50 |
| 8 |
712-0214 |
Hex Nut, 3/8-24 Price: $5.94 |
| 9 |
748-0353A |
LIFT SHAFT DRIVE Not Available Price: |
| 10 |
750-0547 |
Spacer,.628 ID x.875 OD x.5 Price: $4.83 |
| 11 |
784-5609 |
STEERING BRACKET Not Available Price: |
| 12 |
684-0009A |
PIVOT ROD ASSEMBLY Not Available This part replaces 684-0009. Price: |
| 13 |
712-0346 |
Jam Nut, 1/2-20 Price: $3.95 |
| 14 |
731-1292 |
SNOW TRACK Not Available Price: |
| 15 |
736-0272 |
FLAT WASHER .510 x .995 This part replaces 7360272. Price: $4.37 |
| 16 |
731-1538A |
Track Drive Wheel Price: $33.64 |
| 17 |
631-0032A |
Track Idler Wheel This part replaces 631-0032. Price: $39.72 |
| 18 |
750-0995 |
SPACER Not Available Price: |
| 19 |
738-0140 |
Screw,.435 x.178-5/16 x.56 Price: $4.93 |
| 20 |
936-0406 |
Flat Washer, .442 x 1.38 x .060 This part replaces 736-0406. Price: $5.94 |
| 21 |
750-0909 |
SPACER-.51IDX1.34LG Not Available Price: |
| 22 |
712-04063 |
Flange Lock Nut, 5/16-18 Price: $3.56 |
| 23 |
618-0044 |
LH Dogg Assembly Price: $21.12 |
| 24 |
753-05977 |
KIT-REPLACEMENT Not Available This part replaces 684-0024. Price: |
| 25 |
710-1231 |
EYEBOLT5/16-18 x 3.0 Not Available Price: |
| 26 |
784-5639 |
TRACK SIDE PLATE Not Available Price: |
| 27 |
711-0911 |
ACTUATOR SHAFT Not Available Price: |
| 28 |
713-0233 |
Chain Price: $36.15 |
| 29 |
918-0169B |
Drive Track Shift Assembly This part replaces 618-0169A. Price: $303.21 |
| 30 |
683-0024-0637 |
Track Hub Assembly This part replaces 683-0024. Price: $73.99 |
| 31 |
713-0437 |
Chain Price: $32.86 |
| 32 |
941-0339 |
Flange Bearing This part replaces 741-0339. Price: $11.83 |
| 33 |
736-0287 |
Flat Washer,.793 x 1.24 x.06 Price: $3.93 |
| 34 |
611-0053 |
Axle Assembly Price: $85.27 |
| 35 |
750-0904 |
SPLIT SPACER Not Available Price: |
| 36 |
618-0043 |
DOG ASSEMBLY (RH) Not Available Price: |
| 37 |
750-0903B |
SPLIT SPACER Not Available This part replaces 750-0903. Price: |
| 38 |
932-0209 |
Spring, Extension This part replaces 732-0209. Price: $7.01 |
| 39 |
710-0602 |
Tap Screw, 5/16-18 x 1 Price: $4.05 |
| 40 |
719-0295A |
TRACK HOUSING Not Available Price: |
| 41 |
946-0948A |
Track Steering Cable This part replaces 746-0948. Price: $32.82 |
| 42 |
746-0950A |
Steering Trigger Price: $19.58 |
| 44 |
710-1233 |
Screw, #10-24 x 1.375 Price: $3.95 |
| 45 |
916-0114 |
Retaining Ring,.56 This part replaces 716-0114. Price: $5.99 |
| 46 |
918-0576A |
Carrier Ass’y This part replaces 618-0046B. Price: $197.10 |
| 47 |
717-1211B |
RING GEAR Not Available Price: |
| 48 |
916-0115 |
SNAP RING FOR .625 DIA SHAFT Not Available This part replaces 716-0115. Price: |
| 49 |
713-0414 |
SPROCKET 13T x .5P Not Available Price: |
| 50 |
711-0912 |
Track Steering Drive Shaft Price: $115.19 |
| 51 |
936-0502 |
Flat Washer .57 ID x 1.12 OD x .020 This part replaces 736-0502. Price: $6.01 |
| 52 |
936-0336 |
FLAT WASHER This part replaces 736-0336. Price: $3.90 |
| 53 |
715-0120 |
Spiral Pin, 3/16 x 1 Price: $9.14 |
