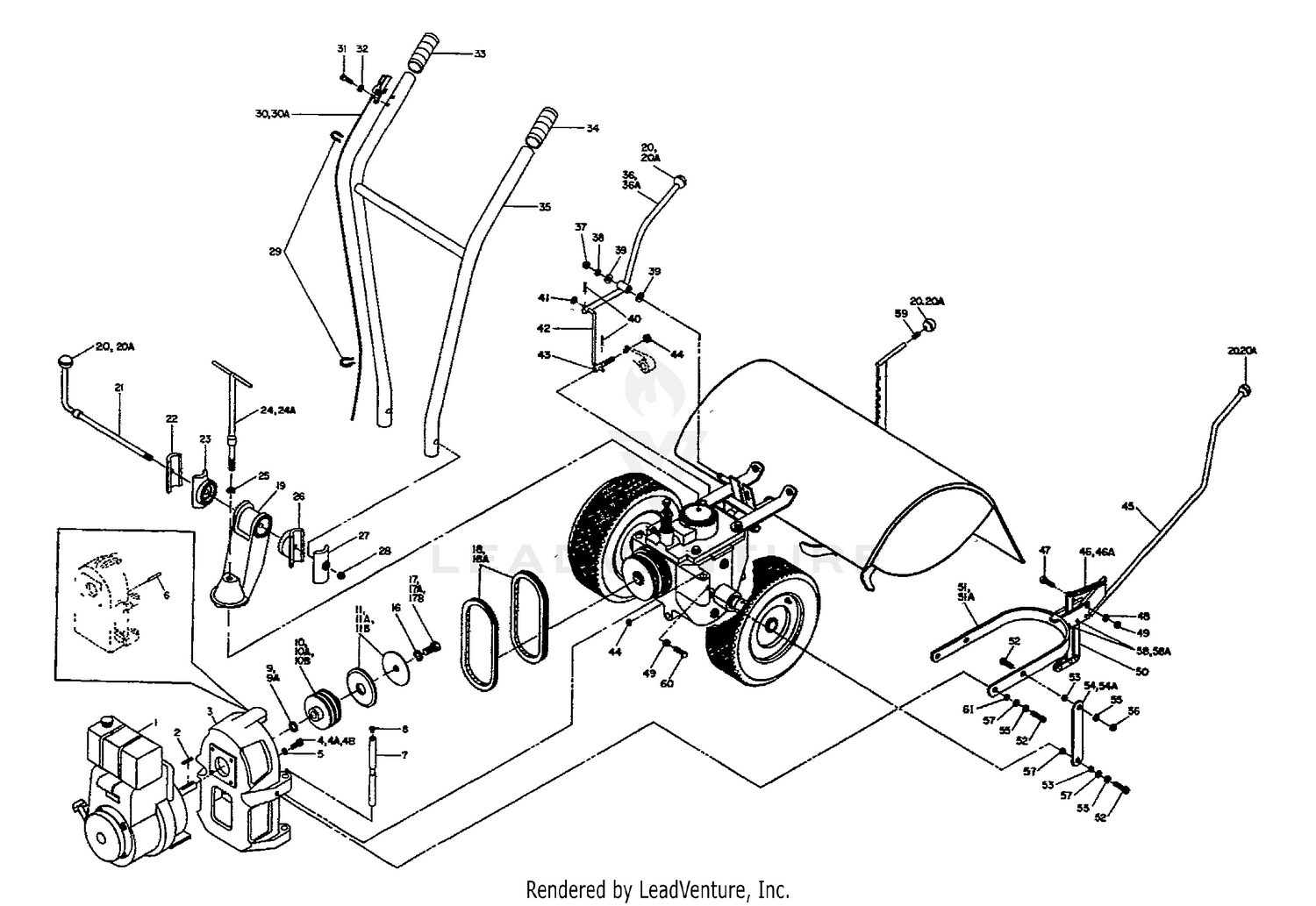

| Ref | Part Number | Description |
|---|
| 1 |
N/A |
ENGINE |
| 2 |
GW-9303 |
KEY - engine pulley, 3/16" square x 2-1/2" This part replaces 9303. Price: $3.22 |
| 3 |
1698 |
MOUNT-MOTOR ENG.HSE I,II,III Price: Call Us |
| 4 |
9707 |
SCR 5/16-24 X 1 Price: Call Us |
| 4A |
9704 |
SCR-HH 5/16-18X1.0 G5 ZP Price: Call Us |
| 4B |
9732 |
SCR 5/16-24 X 1 Price: Call Us |
| 5 |
9912 |
WASHER-LK .312 ZP Price: $19.56 |
| 6 |
9310 |
PIN-SPIROL .25 X 2.5 Price: Call Us |
| 7 |
1034 |
BAR-ENG MTG W/CAP PLUG Price: Call Us |
| 8 |
GW-9147 |
PLUG - thread protector, red plastic This part replaces 9147. Price: $7.05 |
| 9 |
736-04187 |
SHIM - engine pulley, 1/16" thick This part replaces 1138-1. Price: $4.36 |
| 9 |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 9A |
690-900-0047 |
WASHER - FIBER 3/8 Not Available This part replaces 1213. Price: |
| 10 |
619-04124 |
PULLEY- engine P.T.O. (Power Take Off) This part replaces 1483. Price: $135.20 |
| 10A |
1007-1 |
PULLEY-ENG MACH D/BELT Price: Call Us |
| 10B |
1007 |
KIT-PULLEY CONVERSION Price: Call Us |
| 11 |
GW-1919 |
DISC-reverse, rubber rimmed This part replaces 1919. Price: $92.08 |
| 11A |
1072A |
KIT-REV DISC 2 SPEED Price: Call Us |
| 11B |
1072K |
KIT-REV DISC 2 SPEED Price: Call Us |
| 16 |
9913 |
WASHER-LK .375 @ DEPL Price: $1.89 |
| 17 |
9738 |
SCR-HH 3/8-24X1.75 ZP Price: Call Us |
| 17A |
9715 |
SCR-HH 3/8-24X1.5 G5 Price: Call Us |
| 17B |
9708 |
BOLT-HH 5/16-24 X 1.5 ZP Price: Call Us |
| 18 |
GW-9245 |
BELT -forward drive This part replaces 9245. Price: $21.83 |
| 18A |
1128 |
KIT-V BELT Price: Call Us |
| 19 |
1019 |
KIT-BASE ASSM Price: Call Us |
| 20 |
GW-9119 |
KNOB -handlebar height adjustment This part replaces 9119. Price: $10.22 |
| 20A |
9136 |
KNOB-THREADED Price: Call Us |
| 21 |
GW-1881 |
STUD - handlebar height adjustment This part replaces 1881. Price: $54.59 |
| 22 |
1021-2 |
CLAMP-RH HORSE 1021-2 Price: Call Us |
| 23 |
1020-2 |
RATCHET-RT H/BAR CAST Price: Call Us |
| 24 |
1043 |
T-CLAMP WELD Price: Call Us |
| 24A |
1167 |
SCR-5/8 (2373/1043) Price: $9.80 |
| 25 |
9915 |
WASHER-LK .625 ZP Price: Call Us |
| 26 |
1020-1 |
RATCHET-LT H/BAR CAST Price: Call Us |
| 27 |
1021-1 |
CLAMP-LH HORSE 1021-1 Price: Call Us |
| 28 |
9803 |
NUT-HEX JAM 1/2-13 Price: Call Us |
| 29 |
9116 |
TIE-RED Price: Call Us |
| 30 |
9240 |
CABLE-THROTTLE Price: $20.00 |
| 30A |
9115 |
CABLE-THROTTLE Price: Call Us |
| 31 |
1964 |
SCREW:10-32X.5 This part replaces 9733. Price: $3.89 |
| 32 |
9909 |
WASHER-LK M10 Price: Call Us |
| 33 |
9118 |
GRIP-H/BAR SMOOTH Price: Call Us |
| 34 |
9141 |
GRIP-HANDLEBAR Price: Call Us |
| 35 |
1046A |
ASSM-HANDLEBAR Price: Call Us |
| 36 |
1843 |
LEVER-SPD SHIFT W/KNOB Price: Call Us |
| 37 |
9806 |
NUT-H/LK 1/2-20 ZP Price: Call Us |
| 38 |
9914 |
WASHER-LK .5 Price: Call Us |
| 39 |
742-04092-0637 |
BLADE:48":BAG:HOP 532-180054 This part replaces 9907. Price: $32.35 |
| 40 |
GW-9317 |
PIN - cotter, 3/32" x 1" This part replaces 9317. Price: $3.22 |
| 41 |
9902 |
WASHER-FLAT 5/16 SAE Price: Call Us |
| 42 |
GW-1231 |
ROD - connecting rod, wheel speed shift lever This part replaces 1231. Price: $14.83 |
| 43 |
GW-1033 |
SWIVEL - connecting rod This part replaces 1033. Price: $13.56 |
| 44 |
9808 |
NUT-H/LK 5/16-18 Price: Call Us |
| 45 |
1134A |
TRAC-RER Price: Call Us |
| 46 |
GW-1492099 |
SPRING .436X3.25 This part replaces 1492. Price: $8.99 |
| 46A |
GW-1122 |
SPRING .40 Not Available This part replaces 1122. Price: |
| 47 |
9705 |
SCR-HH 5/16-18X1.25 G5ZP Price: Call Us |
| 48 |
9912 |
WASHER-LK .312 ZP Price: $19.56 |
| 49 |
9801 |
NUT-HEX 5/16-18 ZP Price: Call Us |
| 50 |
1042 |
KIT-ROLLER HORSE 1 & 2 Price: Call Us |
| 51 |
1921 |
KIT-LEVER FWD/REV-HORSE 2 Price: Call Us |
| 51A |
1037 |
YOKE-2SP WELD PNT Price: Call Us |
| 52 |
9710 |
SCR-HH 3/8-16X1.0 G5 ZP Price: Call Us |
| 53 |
GW-1113-1099 |
BUSHING - spacer, 19/64" (.300") long, yoke link to retaining plug This part replaces 1113-1. Price: $4.53 |
| 54 |
1488 |
BAR-CLUTCH YOKE Price: Call Us |
| 54A |
690-120-0041 |
BLADE - 28"X1-1/16 Not Available This part replaces 1098. Price: |
| 55 |
9913 |
WASHER-LK .375 @ DEPL Price: $1.89 |
| 56 |
9802 |
NUT-HEX 3/8-16 ZP Price: Call Us |
| 57 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 9904. Price: $3.90 |
| 58 |
9323 |
PIN-SPIROL .313 X 1.0 Price: $42.79 |
| 58A |
690-900-0037 |
SNAPPER AIR LIFT Not Available This part replaces 1136. Price: |
| 59 |
GW-9120 |
RING- retaining (tolerance ring) This part replaces 9120. Price: $5.94 |
| 60 |
9704 |
SCR-HH 5/16-18X1.0 G5 ZP Price: Call Us |
| 1051A |
KIT-ROLLER |
REPAIR Price: Call Us 1051A |
