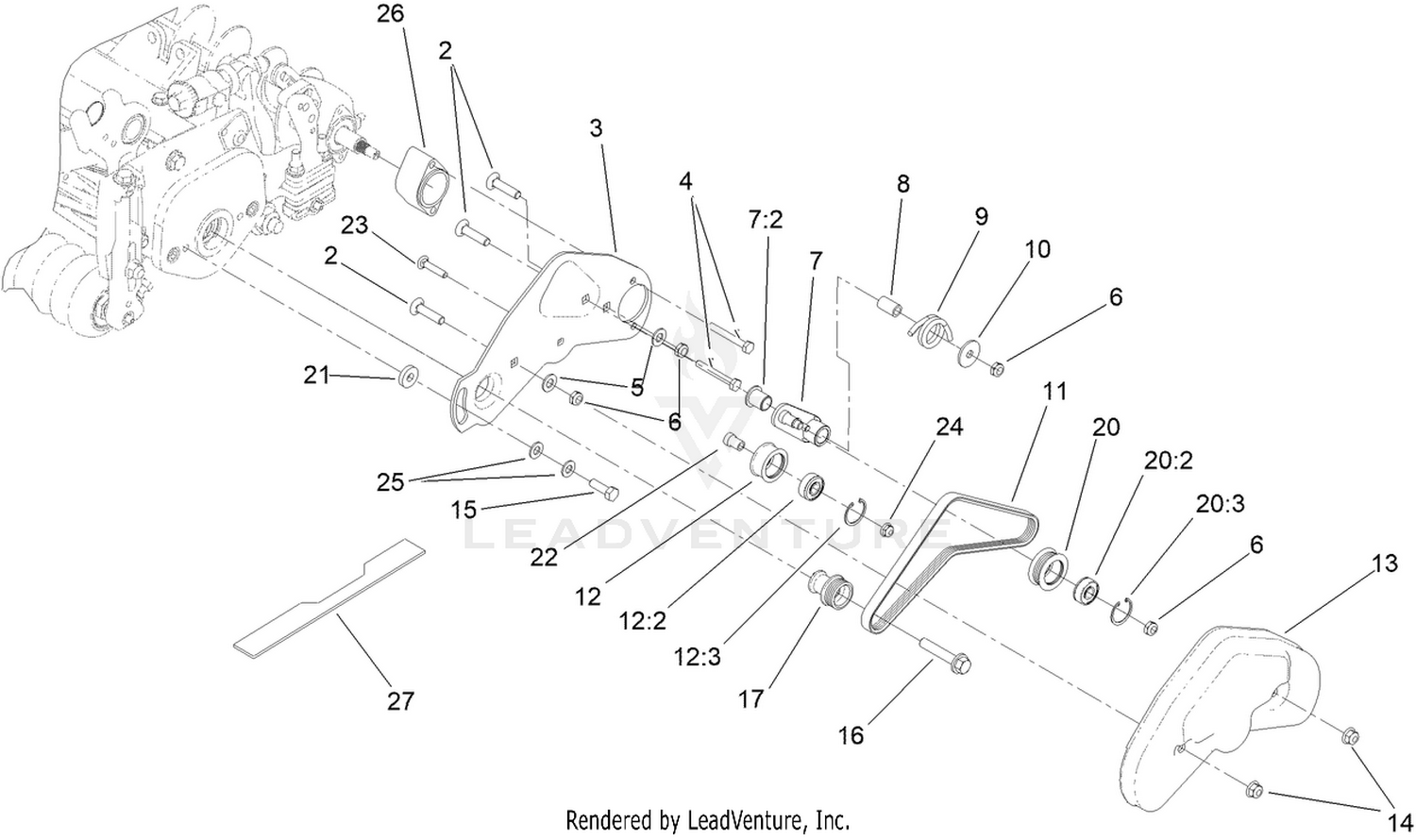

22 Inch Plate Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 112-6950 | SCREW-CARR Price: $0.59 |
| 3 | 121-6969-03 | PLATE-BRUSH, LH Price: $59.10 |
| 3 | 125-0556-03 | PLATE-BRUSH, RH Price: $68.92 |
| 4 | 321-11 | SCREW-HH Price: $0.36 |
| 5 | 3256-45 | WASHER-FLAT Price: $0.28 |
| 6 | 3296-47 | NUT-LOCK, NI Price: $3.59 |
| 7 | 140-6268 | IDLER ARM ASM Price: $42.95 |
| 8 | 115-0826 | SPACER-IDLER Price: $5.44 |
| 9 | 127-0269 | SPRING-IDLER Price: $22.46 |
| 10 | 5-4460 | WASHER-PIVOT Price: $6.19 |
| 11 | 127-0259 | BELT-BRUSH (22"FWY) Price: $22.77 |
| 12 | 114-9397 | IDLER PULLEY ASM Price: $95.89 |
| 13 | 121-6990-03 | COVER-BRUSH Price: $325.39 |
| 14 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 116-0648 | SCREW-HH, THREAD LOCKING Price: $1.29 |
| 16 | 66-9302 | SCREW-HHF, WHIZ Price: $4.49 |
| 17 | 115-0899 | PULLEY-DRIVER, 5 INCH Price: $80.04 |
| 20 | 121-6974 | IDLER PULLEY ASM Price: $122.45 |
| 21 | 104-7658 | SPACER Price: $0.99 |
| 22 | 125-0557 | SPACER Price: $30.37 |
| 23 | 3229-3 | SCREW-CARR Price: $4.49 |
| 24 | 104-7201 | NUT-HF Price: $0.69 |
| 25 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 26 | 120-9999-03 | SPACER-BRUSH, SHAFT Price: $207.26 |
