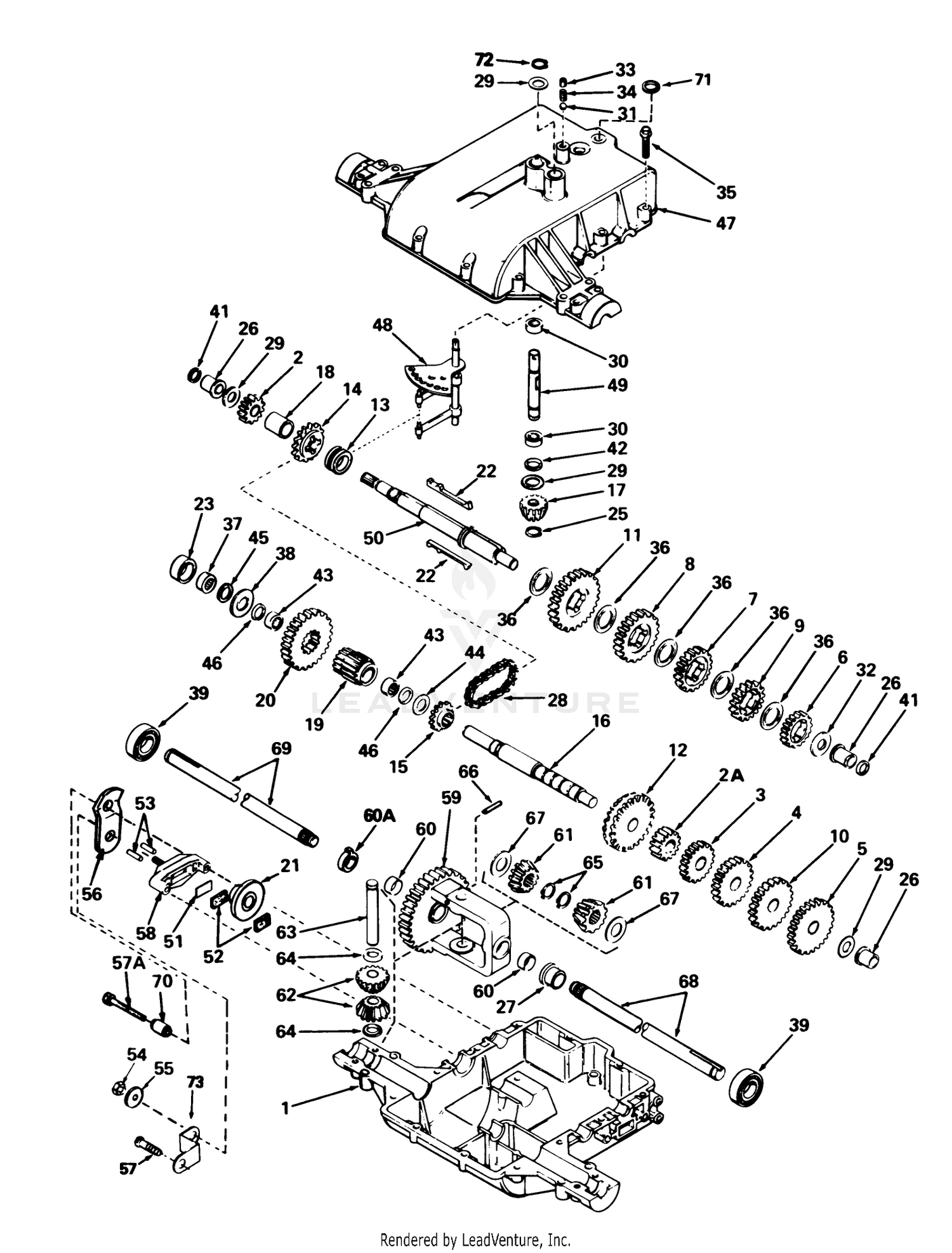

| Ref | Part Number | Description |
|---|
| 1 |
770071A |
Case-transaxle Price: Call Us |
| 2 |
778136 |
Gear-Spur 15 Teeth Price: Call Us |
| 2A |
778145 |
Gear-Spur, 12 Teeth Price: Call Us |
| 3 |
778126A |
Gear-Spur, 20 Teeth Price: Call Us |
| 4 |
778127A |
Gear-Spur, 25 Teeth Price: Call Us |
| 5 |
778129A |
Gear-Spur (30 teeth) Price: Call Us |
| 6 |
778121 |
A Gear-Spur (20 teeth) Price: Call Us |
| 7 |
778123A |
Gear-Spur, 25 Teeth Price: Call Us |
| 8 |
778124A |
Gear-Spur, 30 Teeth Price: Call Us |
| 9 |
778122A |
Gear-Spur (22 teeth) Price: Call Us |
| 10 |
778128A |
Gear-Spur (28 teeth) Price: Call Us |
| 11 |
778146A |
Gear-Spur, 37 Teeth Price: Call Us |
| 12 |
778137A |
Gear-Bevel (42Teeth) Price: Call Us |
| 13 |
784266 |
Collar-Shift Price: Call Us |
| 14 |
786083 |
Sprocket-18 Teeth Price: Call Us |
| 15 |
786082 |
Sprocket-9 Teeth Price: Call Us |
| 16 |
776181 |
Shaft-Counter Price: Call Us |
| 17 |
778113A |
Bevel Pinion-Input Price: Call Us |
| 18 |
786074 |
Spacer Price: Call Us |
| 19 |
778138 |
Pinion-Output Price: Call Us |
| 20 |
778139 |
Gear-Output Price: Call Us |
| 21 |
790003 |
Disk Price: Call Us |
| 22 |
792089A |
Key Price: Call Us |
| 23 |
786075 |
Spacer Price: Call Us |
| 25 |
788040 |
Ring-Retainer Price: Call Us |
| 26 |
780105A |
Bushing-Flange Price: Call Us |
| 27 |
780118A |
Bushing-Flanged Price: Call Us |
| 28 |
786081 |
Chain-Roller #41 Price: Call Us |
| 29 |
780072 |
Washer Price: Call Us |
| 30 |
780086 |
Bearing-Needle Price: Call Us |
| 31 |
792077 |
Ball-Steel Price: Call Us |
| 32 |
780109 |
Washer Price: Call Us |
| 33 |
792078 |
Screw-Set Price: Call Us |
| 34 |
792079 |
Spring Price: Call Us |
| 35 |
792073 |
Ring Set (.020 O S) Price: Call Us |
| 36 |
7800-108 |
Washer-thrust Price: Call Us |
| 37 |
7780111 |
Bearing-Needle Price: Call Us |
| 38 |
780113 |
Washer-Flat Price: Call Us |
| 39 |
780119 |
Bearing-Ball Price: Call Us |
| 41 |
788051 |
Ring-Square Cut Price: Call Us |
| 42 |
792001 |
O Ring Price: Call Us |
| 43 |
780 |
OBSOLETE DECEMBER 1994 Price: Call Us |
| 44 |
780114 |
Washer-Flat Price: Call Us |
| 45 |
788052 |
Ring-Square Cut Price: Call Us |
| 46 |
788053 |
Ring-Square Cut Price: Call Us |
| 47 |
772078A |
Cover-Transaxle Price: Call Us |
| 48 |
784290 |
Rod Fork Assembly Price: Call Us |
| 49 |
776182A |
Shaft-Input Price: Call Us |
| 50 |
776183A |
Shaft-Brake Price: Call Us |
| 52 |
790006 |
Brake Pad Price: Call Us |
| 53 |
786026 |
Dowel Pin Price: Call Us |
| 54 |
792075 |
Locknut Price: Call Us |
| 55 |
792076 |
Washer Price: Call Us |
| 56 |
790022 |
Lever-Brake Price: Call Us |
| 57 |
792073 |
Ring Set (.020 O S) Price: Call Us |
| 57A |
792085 |
Screw-Hex. Flange Price: Call Us |
| 58 |
790020 |
Holder-Brake Pad Price: Call Us |
| 59 |
778053A |
Gear Assembly Differential (Incl. 2 of Ref. #60) Price: Call Us |
| 60 |
780064 |
Bushing Price: Call Us |
| 60A |
780120 |
Bushing Price: Call Us |
| 61 |
778221 |
Gear Bevel Price: Call Us |
| 62 |
778068 |
Gear Pinion Price: Call Us |
| 63 |
786034 |
Drive Pin Price: Call Us |
| 64 |
780065 |
Thrust Washer Price: Call Us |
| 65 |
792018 |
Ring-Snap Price: Call Us |
| 66 |
792040 |
Pin-Roll Price: Call Us |
| 67 |
780001 |
Washer Price: Call Us |
| 68 |
774718 |
Axle (14 7/8" Long) Price: Call Us |
| 69 |
774717 |
Axle (13" Long) Price: Call Us |
| 70 |
786067 |
Spacer Price: Call Us |
| 71 |
788069 |
Cut Seal-Square Price: Call Us |
| 72 |
792035 |
Ring-Snap Price: Call Us |
