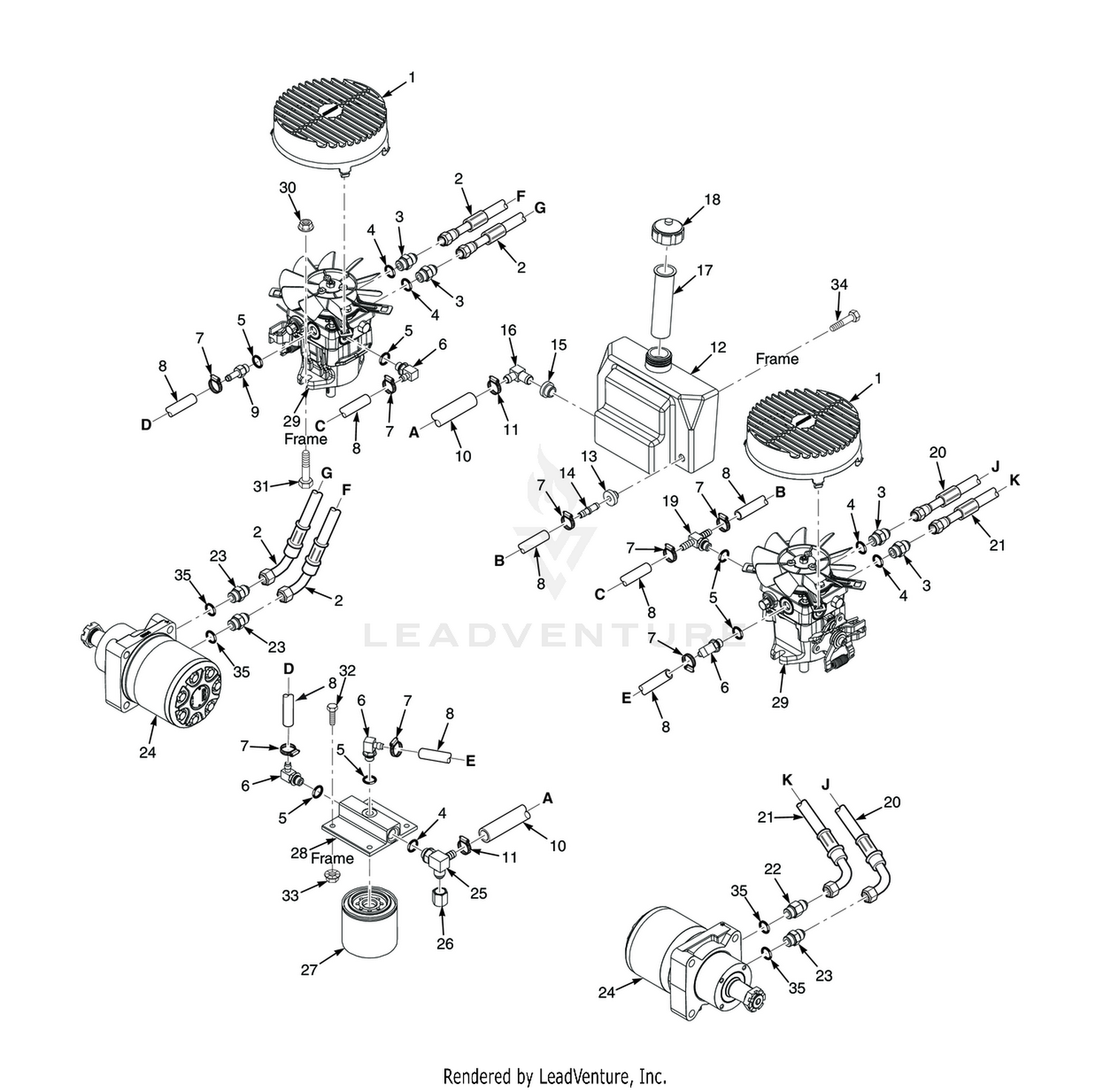

| Ref | Part Number | Description |
|---|
| 1 |
485564 |
Fan Cover, Pump Price: Call Us |
| 2 |
484452 |
Hose Assembly Price: Call Us |
| 3 |
48572-04 |
Union, 3/4"-16 JIC x 3/4"-16 O-Ring Price: Call Us |
| 6 |
482266-01 |
Elbow, 90 Degree - 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 7 |
48136-13 |
Clamp, .69" Max. / .25" Min. Dia. Price: Call Us |
| 8 |
48811 |
Hose, 3/8" ID - 10-1/4" Long (Order By The Inch) Price: Call Us |
| 9 |
482800-02 |
Fitting, 9/16" O-Ring x 3/8" Hose Price: Call Us |
| 10 |
48351 |
Hose Assembly, 1/2" ID (Oil Reservoir to Filter Base) Price: Call Us |
| 11 |
48136-05 |
Clamp, Cable 3/4" I.D. Price: Call Us |
| 12 |
462801 |
Hydraulic Tank Assy Price: Call Us |
| 13 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 14 |
485590 |
Fitting, Straight Price: Call Us |
| 15 |
482573 |
Bushing, 0.78" Dia. Viton Price: Call Us |
| 16 |
482574 |
Fitting, 90 Degree - 1/2" Hose Price: Call Us |
| 17 |
481507 |
Insert, Filler Neck Price: Call Us |
| 18 |
481164 |
CAP, HYDRAULIC TANK Price: Call Us |
| 19 |
482277 |
Tee Fitting, O-Ring to Barb Price: Call Us |
| 20 |
485603 |
Hose Assembly Price: Call Us |
| 21 |
485602 |
Hose Assembly Price: Call Us |
| 22 |
48572-10 |
Fitting, 1/2" JIC x 5/8" O-Ring (LH Wheel Motor - Upper Port Only) Price: Call Us |
| 23 |
48572-02 |
TUBE UNION, 3/4-16 JIC TO 7/8-14 "O" RING Price: Call Us |
| 24 |
482639 |
Wheel Motor, Parker Price: Call Us |
| 25 |
482483 |
Tee, 3/4" O-Ring x JIC x 1/2" Hose Price: Call Us |
| 26 |
48571-02 |
CAP, 3-4-16 JIC Price: Call Us |
| 27 |
48462-01 |
OIL FILTER, SPECIAL Price: Call Us |
| 28 |
482417 |
Filter Head Assembly Price: Call Us |
| 29 |
485573 |
Pump, LH (PK-3KCC-GA1F-XXXX) Price: Call Us |
| 29 |
485574 |
Pump, RH (PK-3HCC-GA1F-XXXX) Price: Call Us |
| 30 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 31 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 32 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 33 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 34 |
04017-15 |
CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX Price: Call Us |
