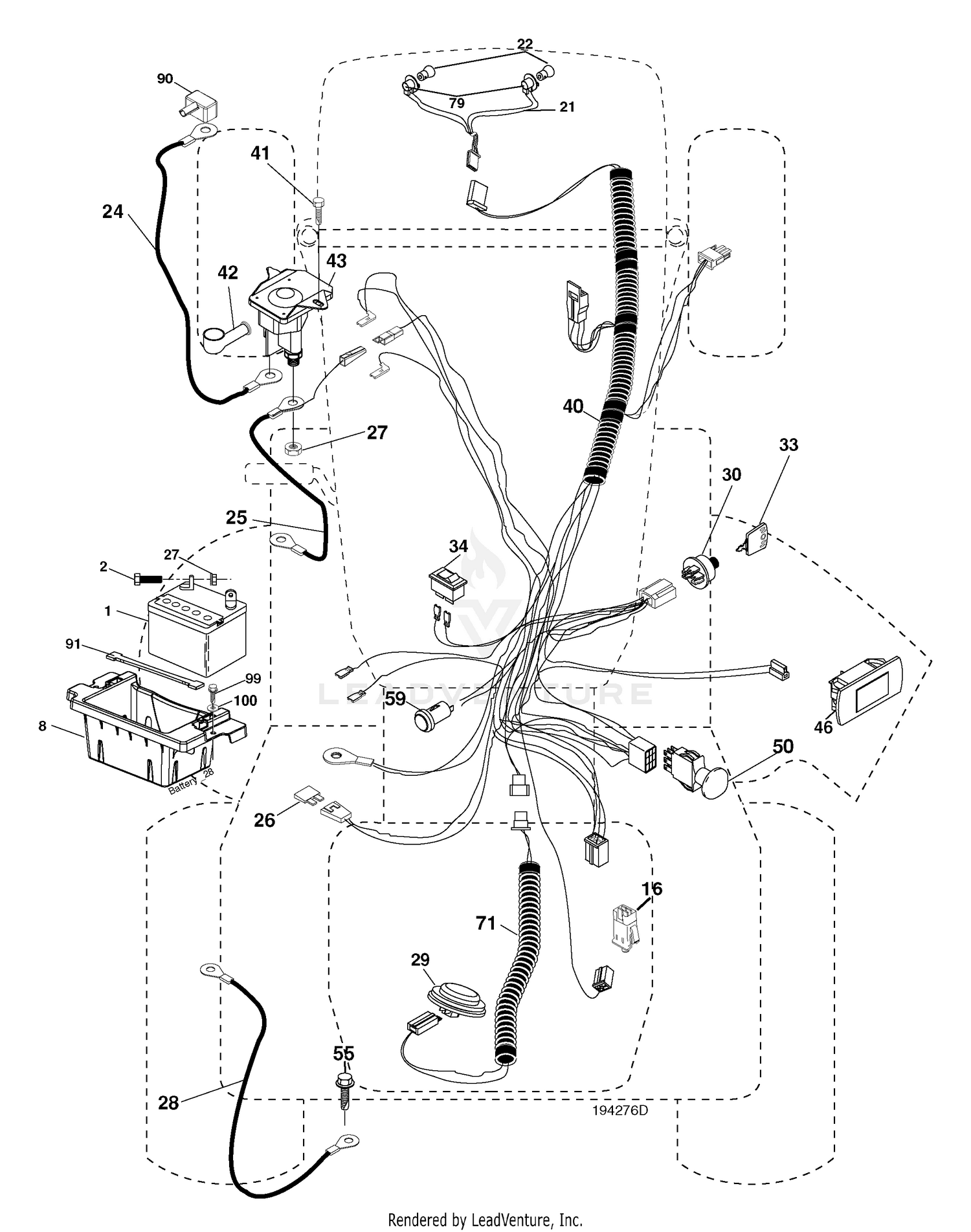

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
Battery Price: Call Us |
| 2 |
74760412 |
Bolt Hex Head 1/4-20 x 3/4 Price: Call Us |
| 8 |
186491 |
Box Battery Price: Call Us |
| 16 |
176138 |
Switch Interlock Push-In Price: Call Us |
| 21 |
175688 |
Harness Socket Light W/4152J Price: Call Us |
| 22 |
4152J |
Bulb Light Price: Call Us |
| 24 |
400253 |
Cable Battery Price: Call Us |
| 25 |
198893 |
Cable Start Red Price: Call Us |
| 26 |
175158 |
Fuse Price: Call Us |
| 27 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 28 |
145491 |
Cable, Ground Price: Call Us |
| 29 |
401545 |
Switch, Seat Price: Call Us |
| 30 |
193350 |
Switch, Ignition Price: Call Us |
| 33 |
140401 |
Key, Ignition Price: Call Us |
| 34 |
110712X |
Switch Light / Reset Price: Call Us |
| 40 |
194276 |
Harness Ignition Price: Call Us |
| 41 |
17720408 |
Screw Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 42 |
131563 |
Cover, Terminal Price: Call Us |
| 43 |
192507 |
Solenoid Price: Call Us |
| 46 |
198138 |
Gauge Hourmeter Price: Call Us |
| 50 |
174653 |
Switch, PTO Price: Call Us |
| 51 |
105-9329 |
GASKET-FUNNEL, AIR This part replaces 99-9182. Price: $67.17 |
| 55 |
17490512 |
Screw Thdrol 5/16-18 x 3/4 TYTT Price: Call Us |
| 59 |
400303 |
Outlet 12-Volt Price: Call Us |
| 71 |
400260 |
Harness Ign. Dash Price: Call Us |
| 79 |
175242 |
Bulbholder Asm. Incan Descent Price: Call Us |
| 90 |
400724 |
Cover Terminal Battery Price: Call Us |
| 91 |
190270 |
Strap Battery Mount Front Price: Call Us |
| 94 |
99-9224 |
VALVE-IDLE ADJ. Price: $34.96 |
| 98 |
99-9225 |
SCREW-IDLE SPEED Price: $10.43 |
| 99 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 100 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 104 |
99-9226 |
PIN-FLOAT HINGE Price: $9.60 |
| 105 |
99-9227 |
VALVE-NEEDLE Price: $53.84 |
| 113 |
99-9228 |
TUBE-JET Price: $38.19 |
| 117 |
99-9229 |
JET-MAIN Price: $60.43 |
| 117 |
99-9230 |
JET-MAIN (HIGH ALTITUDE) Price: $70.24 |
| 121 |
99-9231 |
CARBUERTOR KIT Price: $250.07 |
| 122 |
99-9184 |
SPACER-CARBURETOR Price: $68.15 |
| 125 |
99-9185 |
DISCONTINUED Price: Call Us |
| 131 |
99-9232 |
SHAFT-THROTTLE Price: $106.45 |
| 133 |
99-9233 |
FLOAT-CARBURETOR Price: $74.95 |
| 137 |
99-9234 |
GASKET-BOWL, FLOAT Price: $8.54 |
| 141 |
99-9235 |
SHAFT-CHOKE Price: $64.37 |
| 142 |
99-9236 |
NOZZLE-CARBURETOR Price: $67.26 |
| 151 |
99-9237 |
SCREW-CROSS / SLOTTED Price: $5.45 |
| 187 |
99-9238 |
LINE-FUEL Price: $23.90 |
| 240 |
108-3854 |
FILTER-FUEL This part replaces 99-9193. Price: $5.49 |
| 254 |
99-9239 |
DRAIN-CARBURETOR. BOWL Price: $16.82 |
| 355A |
99-9240 |
WASHER-SEAL Price: $10.99 |
| 387 |
99-9196 |
PUMP-FUEL Price: $291.24 |
| 601 |
99-9242 |
CLAMP-HOSE Price: $9.72 |
| 947 |
99-9243 |
SOLENOID-FUEL Price: $277.27 |
| 975 |
99-9244 |
BOWL-FLOAT Price: $57.63 |
| 1084A |
99-9199 |
CONNECTOR Price: $6.76 |
| 1084B |
99-9213 |
CONNECTOR Price: $7.44 |
| 1084C |
99-9245 |
CONNECTOR Price: $5.95 |
