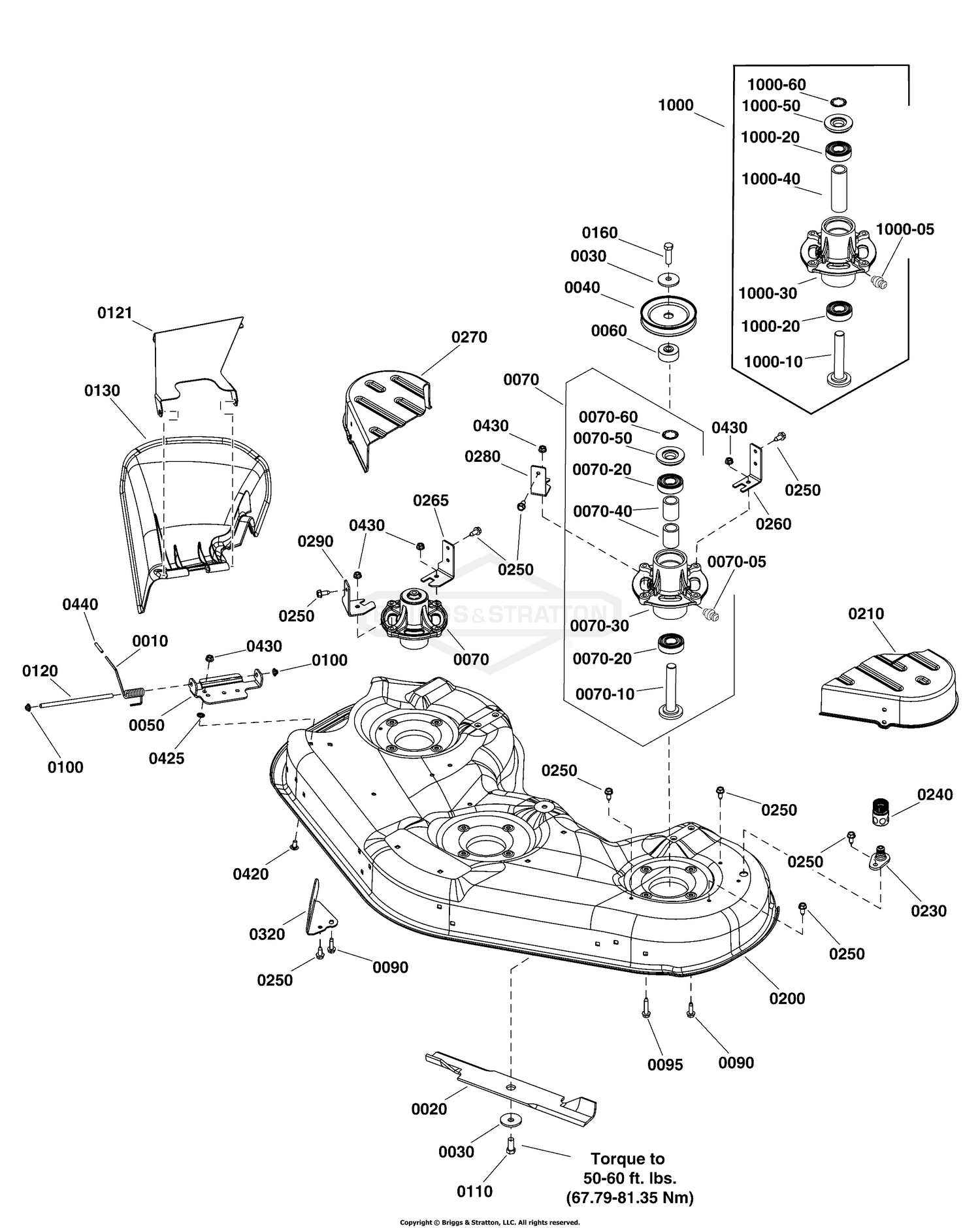

| Ref | Part Number | Description |
|---|
| 0010 |
1759042YP |
SPRING - TORSION Price: $6.03 |
| 0020 |
1739889AYP |
BLADE, MOWER Price: $24.27 |
| 0030 |
1656916SM |
WASHER, SPRING 0.475I Price: $6.65 |
| 0040 |
1735686YP |
PULLEY, Split, 4.6 OD Price: $18.02 |
| 0050 |
1754868BMYP |
BRACKET, Deflector Hinge This part replaces 1754868AYP. Price: $18.75 |
| 0060 |
1737457YP |
SPACER, Pulley Price: $9.62 |
| 0090 |
704146 |
SCREW, HEX, 5/16-18X1 Price: $3.40 |
| 0095 |
1930600SM |
CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2 Price: $4.49 |
| 0100 |
704028 |
PUSHNUT, CAP, 5/16 Price: $4.59 |
| 0110 |
1920676SM |
CAPSCREW, Hex Head, 7/16-14 X 1 Price: $4.70 |
| 0120 |
1759064YP |
ROD, Deflector Price: $7.47 |
| 0121 |
1758935AYP |
BRACKET, Support Price: $52.26 |
| 0130 |
1687750YP |
DEFLECTOR, Discharge, Plastic 46/52 Decks This part replaces 1754745YP. Price: $34.49 |
| 0160 |
1921212SM |
CAPSCREW, Hex Head, 7/16-14 X 1 1/2 Price: $3.85 |
| 0200 |
1687848YP |
HOUSING, Mower Deck, 46" ZT (Red) Price: $1,599.99 |
| 0210 |
1759289YP |
COVER, Spindle, 46"/ 52" Mower, LH Price: $52.16 |
| 0230 |
1756247YP |
ADAPTER, Washout Port Price: $5.78 |
| 0240 |
1756246YP |
CONNECTOR, Washout Port Price: $14.39 |
| 0250 |
703228 |
SCREW, 5/16-18 X .75 This part replaces 1664847CAYP. Price: $3.94 |
| 0260 |
1759291AYP |
BRACKET, Arbor Cover Mount, Rear, LH, BL Price: $10.19 |
| 0265 |
1759461AYP |
BRACKET, Arbor Cover Mount, Rear, RH, BL Price: $10.96 |
| 0270 |
1759290YP |
COVER, Spindle, 46"/52" Mower, RH Price: $52.16 |
| 0280 |
1759292AYP |
BRACKET, Arbor Cover Mount, Front, LH, BL Price: $10.19 |
| 0290 |
1759293AYP |
BRACKET, Arbor Cover Mount, Front, RH, BL Price: $10.84 |
| 0320 |
1737279BMYP |
BAFFLE, Pinchoff Price: $16.09 |
| 0420 |
703447 |
BOLT, 5/16-18X.625 G5 Price: $3.72 |
| 0425 |
703297 |
RETAINER, GR5, 5/16 Price: $3.29 |
| 0430 |
5025127SM |
NUT, 5/16-18 HEX SERR Price: $2.97 |
| 1000 |
84003175 |
ARBOR ASSEMBLY Price: $93.65 |
