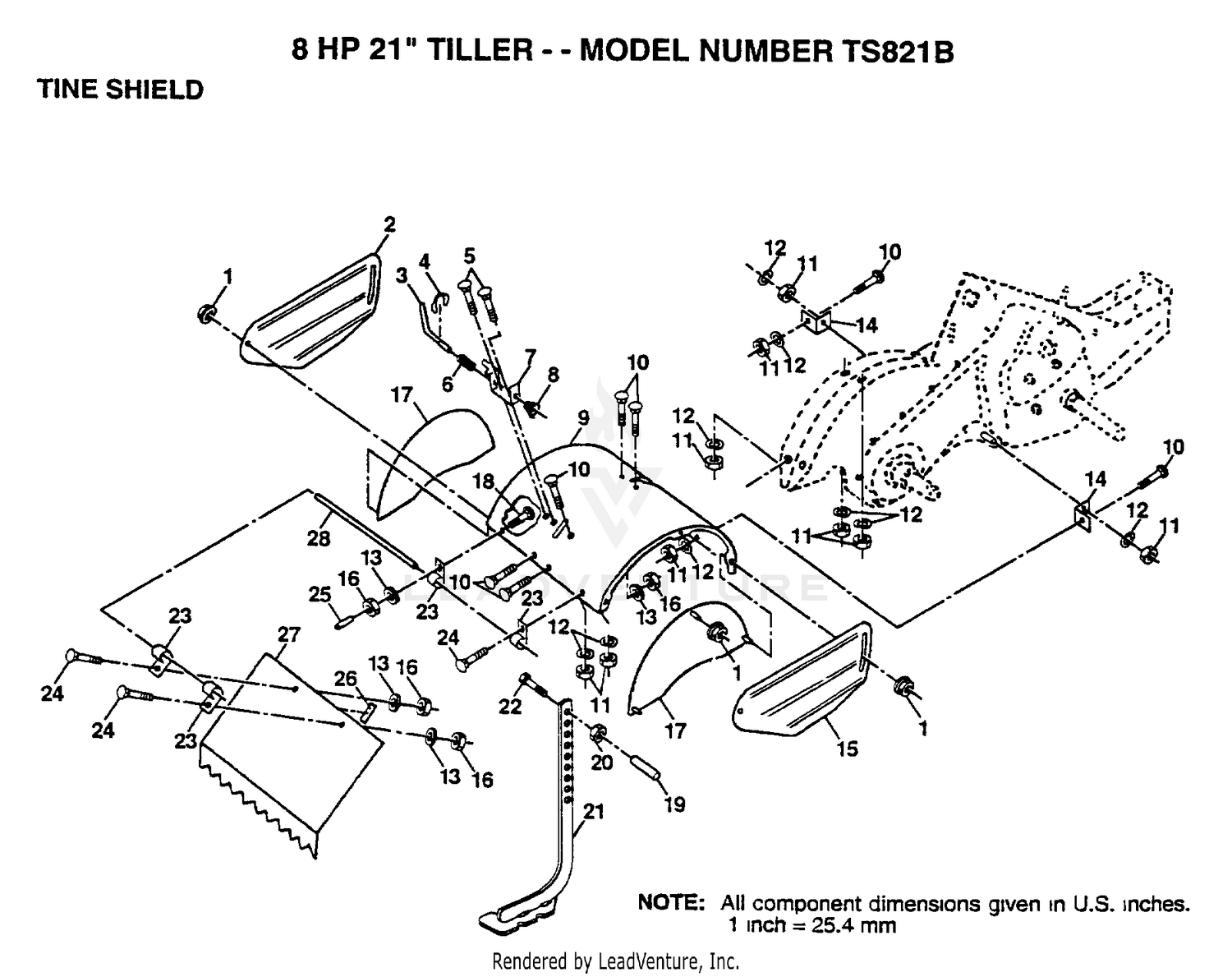

| Ref | Part Number | Description |
|---|
| 1 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 1 |
98000129 |
NUT Price: Call Us |
| 2 |
108711X505 |
SHIELD SIDE OUT L Price: Call Us |
| 2 |
76-4830-03 |
VALVE ROD ASM Price: $38.97 |
| 3 |
283-16 |
PIN-CLEVIS Price: $2.37 |
| 3 |
8393J |
STAKE PIN TI Price: Call Us |
| 4 |
12000036 |
KLIP RING TI Price: Call Us |
| 4 |
63-7960 |
VALVE-LIFT Price: $636.36 |
| 5 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 5 |
72140508 |
BOLT Price: Call Us |
| 6 |
66-3130 |
FITTING-SPECIAL Price: $76.51 |
| 6 |
8394J |
SPRING TI Price: Call Us |
| 7 |
66-8500 |
HYD HOSE ASM Price: $89.96 |
| 7 |
8392J |
LATCH BRACKET TI Price: Call Us |
| 8 |
109230X |
SPRING CRT Price: Call Us |
| 8 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 9 |
104178X505 |
SHIELD TINE RED Price: Call Us |
| 9 |
66-8150 |
HOSE-HYDRAULIC Price: $15.32 |
| 10 |
321-11 |
SCREW-HH Price: $0.36 |
| 10 |
72140506 |
BOLT Price: Call Us |
| 11 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 11 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 12 |
10040500 |
LOCKWASHER Price: Call Us |
| 12 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 13 |
10040400 |
LOCKWASHER Price: Call Us |
| 13 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 14 |
66-8640 |
HYDRAULIC HOSE ASM Price: $104.12 |
| 14 |
8386J |
TINE SHLD BRKT TI Price: Call Us |
| 15 |
108710X505 |
SHIELD SIDE RH Price: Call Us |
| 15 |
66-8180 |
HYDRAULIC HOSE ASM Price: $119.78 |
| 16 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 16 |
73220400 |
SUB= 50675 Price: Call Us |
| 17 |
104084X505 |
SHIELD SIDE RED Price: Call Us |
| 17 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 18 |
66-8190 |
HYDRAULIC HOSE ASM Price: $85.54 |
| 18 |
72040410 |
BOLT Price: Call Us |
| 19 |
340-86 |
FITTING-TEE Price: $35.23 |
| 19 |
8389J |
GRIP TI Price: Call Us |
| 20 |
73220600 |
NUT.HEX.3/8-16UNC Price: Call Us |
| 20 |
92-5082 |
HOSE-HYD Price: $25.51 |
| 21 |
138420 |
STAKE.ASM.DEPTH Price: Call Us |
| 21 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 22 |
304-99 |
STEM-HOSE Price: $34.00 |
| 22 |
74930656 |
BOLT Price: Call Us |
| 23 |
4440J |
HINGE CRT Price: Call Us |
| 23 |
63-6630 |
HYD CYLINDER ASM Price: $683.92 |
| 24 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 24 |
72140408 |
BOLT.1/4-20X1/2 Price: Call Us |
| 25 |
27-4240 |
PIN-CYLINDER Price: $21.90 |
| 25 |
6712 |
J VINYL CAP TI Price: Call Us 6712 J |
| 26 |
109227X |
PAD IDLER TI Price: Call Us |
| 26 |
3216-3 |
SCREW-HH Price: $7.20 |
| 27 |
102713X505 |
SHIELD LEVELING Price: Call Us |
| 27 |
340-70 |
NUT-LOCK Price: $2.10 |
| 28 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 29 |
63-7410 |
BRACKET-BULKHEAD Price: $9.20 |
