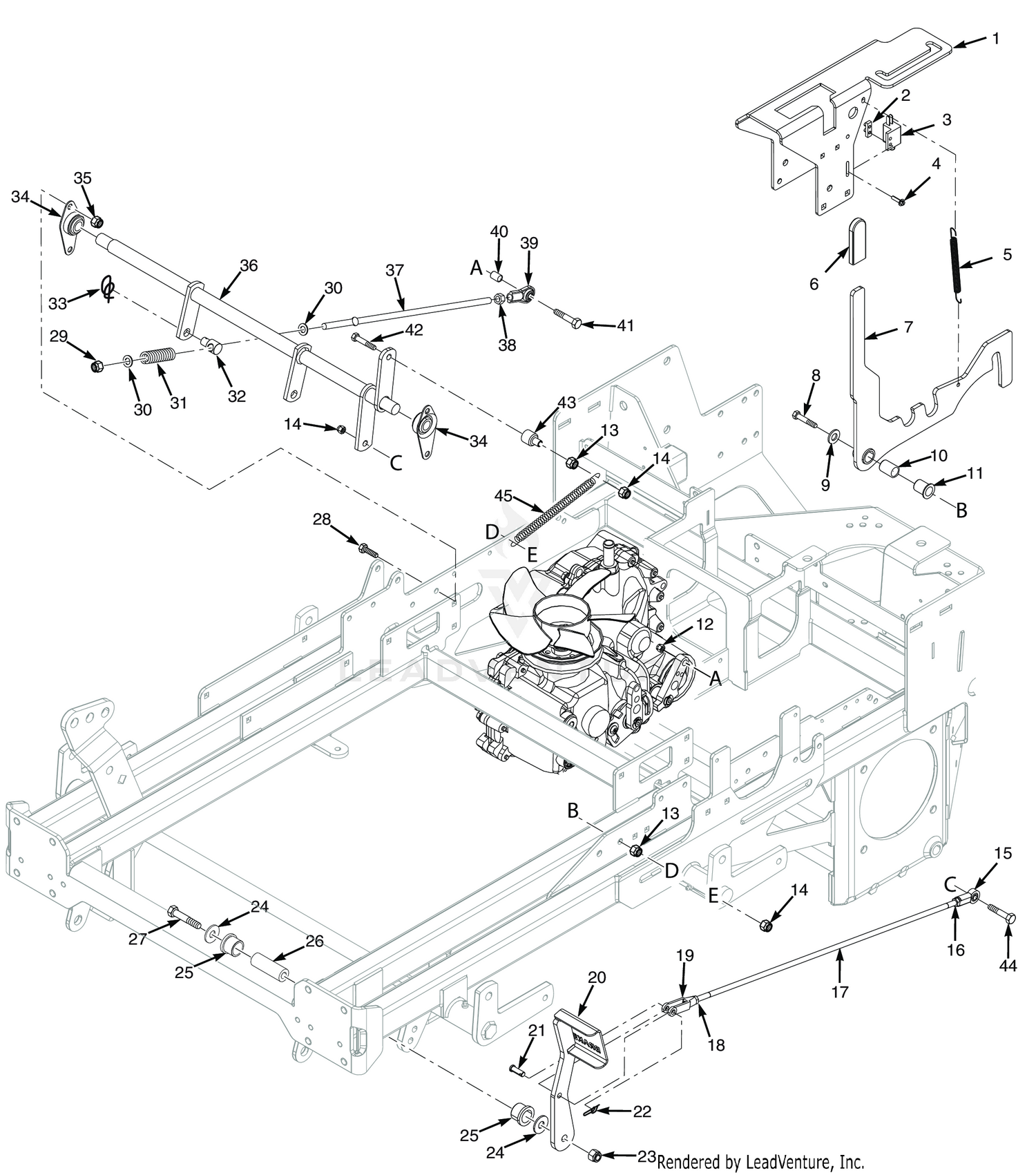

| Ref | Part Number | Description |
|---|
| 1 |
463233 |
Control Weldment w/ Decal Price: Call Us |
| 2 |
422373 |
Plate, Threaded Price: Call Us |
| 3 |
486616 |
Switch, N/C Price: Call Us |
| 4 |
04010-12 |
Screw, Hex-Slotted Washer Head #10 32 x 3/4" Price: Call Us |
| 5 |
483600 |
Spring, Deck Latch Price: Call Us |
| 6 |
482102 |
Grip, Brake Handle Price: Call Us |
| 7 |
463192 |
Brake Lever w/ Grip Price: Call Us |
| 8 |
04001-31 |
Capscrew, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 9 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 10 |
431047 |
Pivot, Brake Lever Price: Call Us |
| 11 |
483453-14 |
Bearing, .625 ID Plastic Price: Call Us |
| 12 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 13 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 14 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 15 |
48544 |
Rod End, 3/8-24 LH Thread Female Price: Call Us |
| 16 |
04020-26 |
Nut, 3/8-24 UNF-2B LH Thread Price: Call Us |
| 17 |
486575 |
Brake Rod Assembly Price: Call Us |
| 18 |
04020-25 |
Nut, 3/8-24 UNF R.H. Thread Price: Call Us |
| 19 |
48343-04 |
Clevis, Traction Control Price: Call Us |
| 20 |
453105 |
Brake Pedal Price: Call Us |
| 21 |
04064-02 |
Pin, Clevis 3/8-16 x 1-1/16" Price: Call Us |
| 22 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 23 |
04021-07 |
HEX LOCKNUT, ELASTIC STOP, 1/2-13 Price: Call Us |
| 24 |
04040-13 |
Flat Washer, 1/2 (.562 x 1.375 x .109) Price: Call Us |
| 25 |
483453-03 |
Bearing, Plastic Price: Call Us |
| 26 |
43872 |
Sleeve, Brake Pivot Price: Call Us |
| 27 |
04001-194 |
Bolt, Hex Head 1/2-13 x 4-1/4" Price: Call Us |
| 28 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 29 |
04021-27 |
Nut, Elastic Stop 3/8-24 Price: Call Us |
| 30 |
04041-45 |
FW, .375-.376/.380 X .734 X .063 Price: Call Us |
| 31 |
484182 |
Spring Price: Call Us |
| 32 |
485317 |
BUSHING, PIVOT SLIDE Price: Call Us |
| 33 |
04069-02 |
Pin, Rue Cotter 1/2" Dia. Price: Call Us |
| 34 |
484149 |
Bearing, Self Align Price: Call Us |
| 35 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 36 |
453067 |
Brake Linkage Weldment Price: Call Us |
| 37 |
485321 |
Brake Linkage Assembly Price: Call Us |
| 38 |
04020-14 |
HEX NUT, 3/8-24 R.H. THREAD Price: Call Us |
| 39 |
484177 |
Rod End, 3/8-24 Price: Call Us |
| 40 |
43749 |
Spacer, Pump Price: Call Us |
| 41 |
04001-195 |
Bolt, 5/16-18 x 2-1/2” Price: Call Us |
| 42 |
04001-22 |
Capscrew, Hex Head 3/8-16 x 2.75" Price: Call Us |
| 43 |
43503 |
Pivot, Idler - Short Price: Call Us |
| 44 |
04001-26 |
BOLT, HEX HEAD, 3/8-16 X 1-1/4 Price: Call Us |
