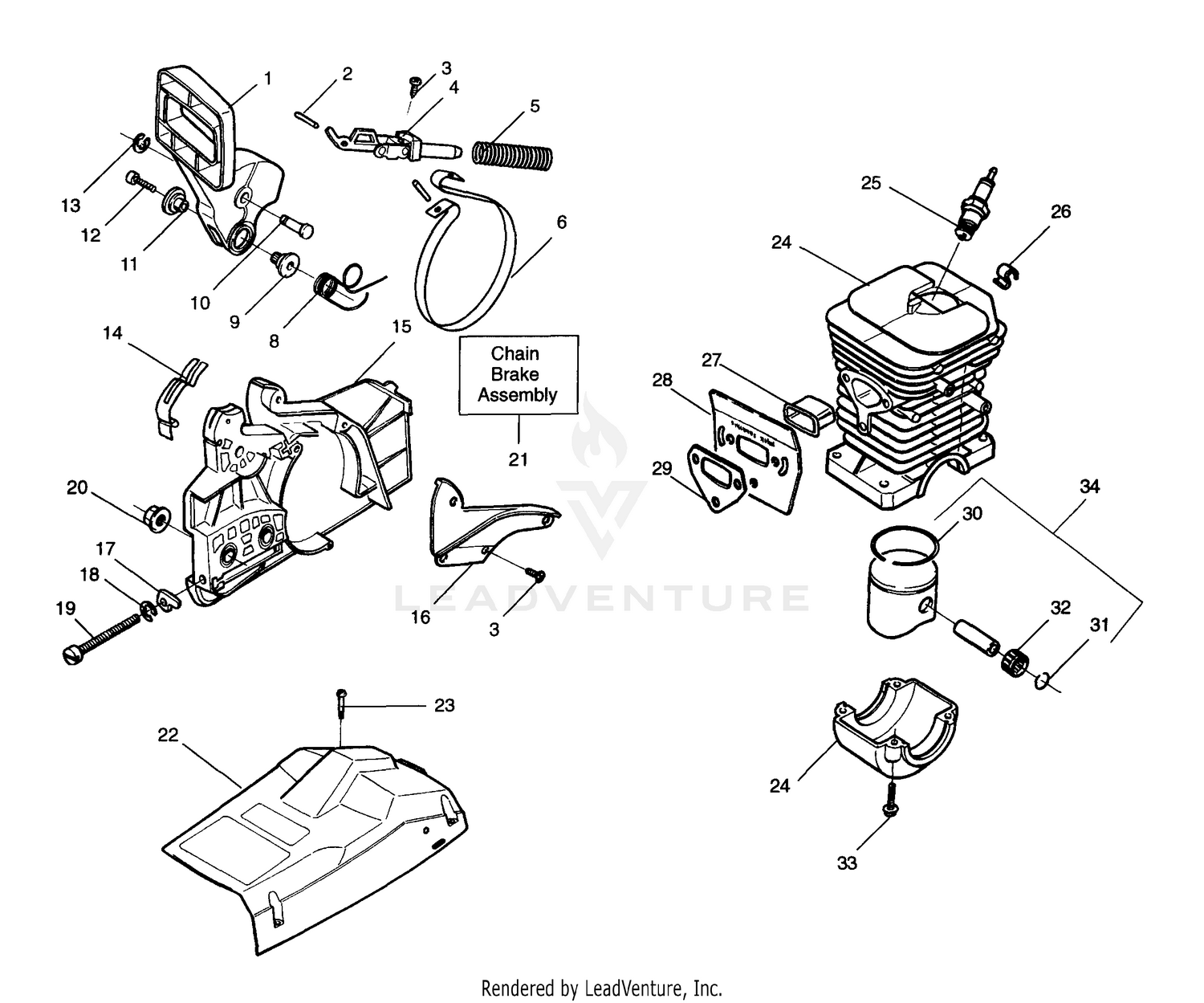

| Ref | Part Number | Description |
|---|
| 1 |
530071348 |
HANDGUARD This part replaces 530014305. Price: $21.99 |
| 2 |
720123300 |
PIN 3X10 Price: $2.99 |
| 3 |
574780301 |
SCREW M3.63-1.34 X 8MM This part replaces 530015911. Price: $3.99 |
| 4 |
530014356 |
Front and Rear Link Assembly Price: $5.88 |
| 5 |
501875401 |
SPRING Price: $6.99 |
| 6 |
545137401 |
BRAKE BAND This part replaces 530029874. Price: $5.99 |
| 8 |
530015910 |
SPRING,BRK HDL 36/41 Price: $4.99 |
| 9 |
501768101 |
PIVOT SLEEVE L Price: $6.99 |
| 10 |
530029879 |
PIVOT PIN Price: $3.99 |
| 11 |
501768001 |
PIVOT SLEEVE R Price: $4.99 |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 12 |
530015914 |
SCREW Price: $2.99 |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
530038593 |
RETAINER Price: $3.99 |
| 13 |
76-0960 |
LINK-DRIVE Price: $345.26 |
| 14 |
530029878 |
SPRING-POSITION Price: $4.99 |
| 14 |
76-1010 |
SCREW Price: $21.23 |
| 15 |
530053173 |
CHAINBRAKE This part replaces 530037547. Price: $49.99 |
| 16 |
530053173 |
CHAINBRAKE This part replaces 530037546. Price: $49.99 |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 17 |
530015826 |
ADJUST PIN,BAR 36/41 This part replaces 530016109. Price: $3.99 |
| 18 |
530038593 |
RETAINER Price: $3.99 |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 19 |
530016110 |
BAR ADJUSTING SCREW Price: $3.99 |
| 20 |
530015917 |
BAR NUT Price: $2.99 |
| 22 |
530047609 |
CYLINDER SHIELD ASSY Price: $17.99 |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 23 |
530016154 |
SCREW Price: $2.99 |
| 24 |
76-0940 |
END COVER ASM Price: $431.83 |
| 25 |
503235111 |
SPARK PLUG M14X1.25 NGK BPMR7A This part replaces 952030150. Price: $4.99 |
| 26 |
530015696 |
CLIP - HIGH TENSION LE Price: $0.99 |
| 27 |
530037652 |
HEAT INSULATOR Price: $2.99 |
| 28 |
530037640 |
MUFFLER PLATE Price: $1.99 |
| 29 |
530019205 |
GASKET Price: $4.99 |
| 30 |
530029805 |
PISTON RING 36 Price: $4.99 |
| 31 |
530015697 |
C-CLIP,PSTN PIN 36/41 Price: $2.99 |
| 32 |
530032117 |
Piston Pin Bearing Price: $4.36 |
| 33 |
530015897 |
SCREW-M5-0.8 X 25MM(TAP) Price: $2.99 |
