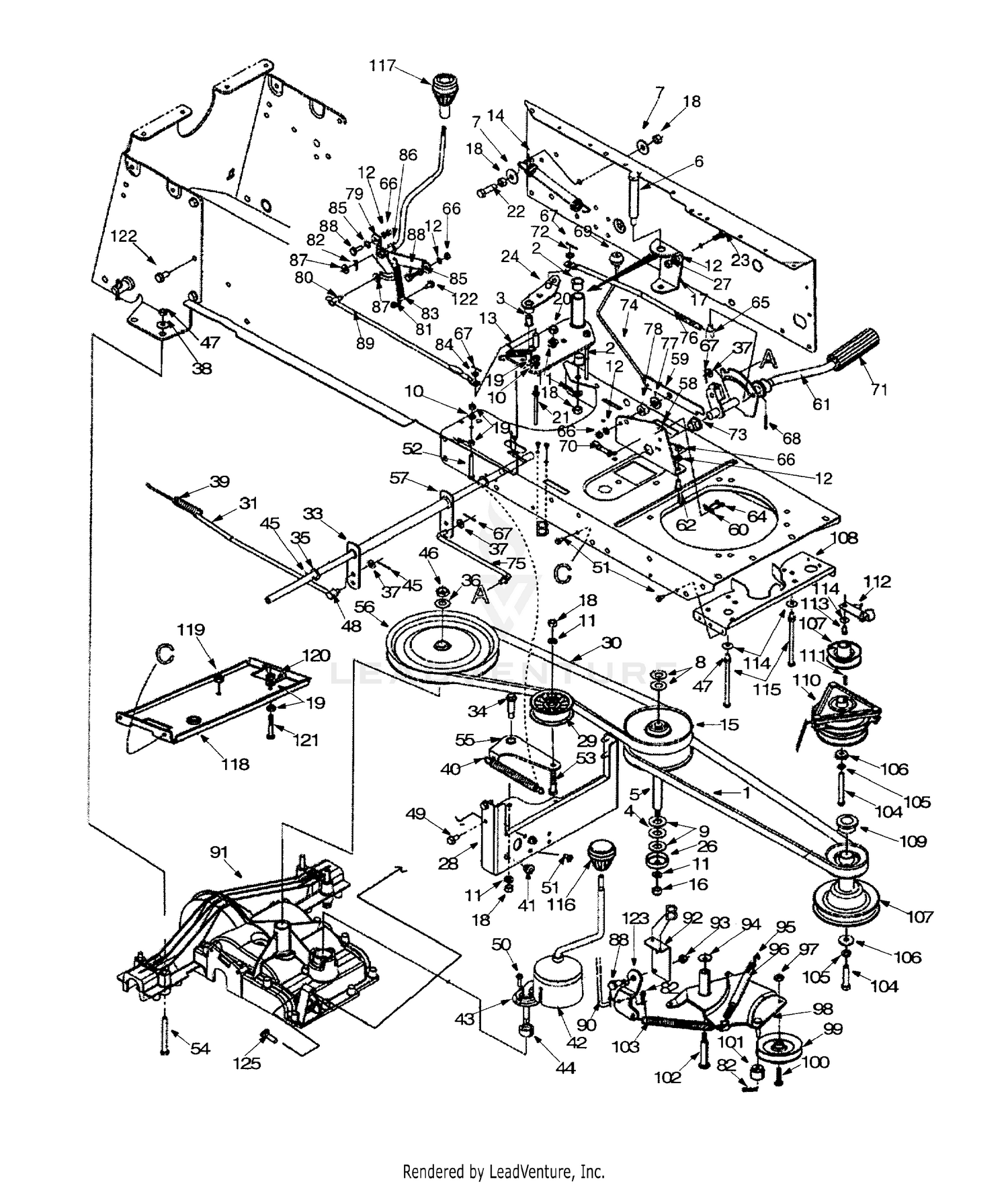

| Ref | Part Number | Description |
|---|
| 1 |
954-0280A |
Variable Speed Belt This part replaces 754-0280. Price: $42.39 |
| 2 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 3 |
741-0419 |
FLANGE BEARING Not Available Price: |
| 4 |
941-0405 |
THRUST BEARING Not Available This part replaces 741-0405. Price: |
| 5 |
738-0956 |
Shaft Price: $18.67 |
| 6 |
738-0779 |
SHOULDER SCREW .625 x 3.50:3/8-2 Not Available Price: |
| 7 |
736-0452 |
Bell-Wash. .396" I.D. x 1.14" Price: $4.05 |
| 8 |
736-0414 |
Fl-Wash 56" I.D. x 1.12" O.D. Price: $3.82 |
| 9 |
736-0355 |
Fl-Wash. .5" I.D. x 1" O.D. Not Available Price: |
| 10 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 11 |
736-0169 |
L-Wash. 3/8" I.D. Price: $3.33 |
| 12 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 13 |
732-0568 |
EXTENSION SPRING Not Available Price: |
| 14 |
732-0459C |
Ext. Spring .94" O.D. x 6.7 This part replaces 732-0459. Price: $16.05 |
| 15 |
917-0800A |
Variable Speed Pulley Ass'y. 5" O.D. This part replaces 717-0800A. Price: $215.56 |
| 16 |
712-3061 |
Hex L-Nut 3/8-24 Thd. Price: $5.94 |
| 17 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-3057. Price: $5.94 |
| 18 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 19 |
712-3006 |
HEX NUT Price: $4.05 |
| 20 |
712-0241 |
Hex Nut 3/8-24 Thd. Price: $3.86 |
| 21 |
911-1000 |
Belt Keeper, .25 DIA X 3.0 This part replaces 711-1000. Price: $9.62 |
| 22 |
710-3005 |
Hex Bolt 3/8-16 x 1.25" Price: $3.61 |
| 23 |
710-0157 |
Hex Bolt 5/16-24 x .75" Price: $3.90 |
| 24 |
683-0115-0637 |
TORQUE BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0115. Price: |
| 26 |
17485 |
Retainer Cup Price: $7.29 |
| 27 |
17180 |
BRACKET SUPPORT Not Available Price: |
| 28 |
783-0402A |
TRANS. TORQUE BRKT. Not Available Price: |
| 29 |
756-04224 |
Flat Idler Pulley This part replaces 756-0981A. Price: $24.80 |
| 30 |
954-0446 |
BELT .700 x 46" Not Available This part replaces 754-0446. Price: |
| 31 |
747-0640 |
BRAKE ROD Not Available Price: |
| 33 |
741-0491 |
Flange Nyliner Brg. Price: $4.39 |
| 34 |
738-1014 |
SHOULDER SCREW .50 This part replaces 738-0967. Price: $3.58 |
| 35 |
736-3068 |
Fl-Wash 5" I.D. x .875" O.D. Price: $5.91 |
| 36 |
936-0427 |
BELL WASHER Not Available This part replaces 736-0427. Price: |
| 37 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 38 |
736-0242 |
Bell-Wash 345" I.D. x .88" Price: $3.75 |
| 39 |
732-0642 |
EXTENSION SPRING Not Available Price: |
| 40 |
932-0384 |
EXTENSION SPRING Not Available This part replaces 732-0384. Price: |
| 41 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 42 |
721-0450 |
BOOT SHIFT Not Available Price: |
| 43 |
718-0272 |
SHIFT SNOUT Not Available Price: |
| 44 |
718-0271 |
SHIFTER INSERT Not Available Price: |
| 45 |
714-0111 |
Cotter Pin 1" Price: $4.20 |
| 46 |
712-3035 |
HEX JAM NUT 9/16-18 GR5 Price: $6.01 |
| 47 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 48 |
711-1155 |
Ferrule Price: $10.22 |
| 49 |
710-0726 |
AB-Tap Scr. 5/16-18 Thd. Price: $3.82 |
| 50 |
710-0642 |
TT. Scr. 1/4-20 x .75" Price: $4.05 |
| 51 |
710-0599 |
TT-Tap Scr. 1/4-20 x .5" Price: $3.86 |
| 52 |
710-0501 |
Hex Bolt 1/4-20 x 2" Price: $6.24 |
| 53 |
710-0347 |
Hex Bolt 3/8-16 x 1.75" Price: $4.39 |
| 54 |
710-0189 |
Hex Bolt 5/16-18 x 3" Price: $5.30 |
| 55 |
983-0154-0637 |
BRACKET ASSEMBLY (POWDER BLACK) Not Available This part replaces 683-0154. Price: |
| 56 |
656-0004 |
Trans. Pulley Price: $105.94 |
| 57 |
650-0006 |
CROSS BRKT. TUBE ASS'Y. Not Available Price: |
| 58 |
16924A |
MOUNTING BRACKET Not Available Price: |
| 59 |
16980A |
BRACKET-LOCKOUT Not Available Price: |
| 60 |
17962 |
Switch Plate Price: $4.36 |
| 61 |
647-0021 |
PEDAL ASS'Y. Not Available Price: |
| 62 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 64 |
710-0589 |
Tap Scr. #10-16 x .75" Price: $6.01 |
| 65 |
911-0832 |
Ferrule 3/8-24 Thd. This part replaces 711-0832. Price: $13.68 |
| 66 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 67 |
714-0111 |
Cotter Pin 1" Price: $4.20 |
| 68 |
714-0115 |
Cotter Pin 1/8" Dia. x 1" Price: $3.48 |
| 69 |
720-0166 |
THROTTLE KNOB Not Available Price: |
| 70 |
932-0395 |
EXTENSION SPRING Not Available This part replaces 7320395. Price: |
| 71 |
735-0239A |
FOOT PAD This part replaces 735-0196. Price: $10.76 |
| 72 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 73 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 74 |
747-0644 |
ROD-PEDAL LOCK Not Available Price: |
| 75 |
747-0724A |
BRAKE ROD LINK Not Available Price: |
| 76 |
747-0726A |
SPEED CONTROL LINK Not Available This part replaces 747-0726. Price: |
| 77 |
748-0234 |
Shld. Spacer Price: $3.86 |
| 78 |
750-0214 |
SPACER Not Available Price: |
| 79 |
647-0011 |
SPEED LEVER ASSEMBLY Not Available Price: |
| 80 |
911-0723A |
FERRULE 3/8-24 x .375 x 1.31 LG Not Available This part replaces 711-0723A. Price: |
| 81 |
712-0429 |
Hex L-Nut 5/16-18 Thd. Price: $3.56 |
| 82 |
714-0104 |
Hairpin Clip Price: $3.90 |
| 83 |
932-0429A |
Extension Spring 3.97" Lg. This part replaces 732-0429A. Price: $8.29 |
| 84 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 85 |
936-0141 |
Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01 |
| 86 |
736-0192 |
Fl-Wash. .531" I.D. x .93" O.D. Price: $3.75 |
| 87 |
736-0267 |
FLAT WASHER .38X.88 Price: $3.90 |
| 88 |
738-0296 |
Shld. Bolt.437" x .286" Price: $3.93 |
| 89 |
747-0729 |
LINK-SPEED CONTROL Not Available Price: |
| 90 |
747-0750A |
DECK CONTROL ROD Not Available Price: |
| 92 |
13833A |
BRACKET-PARK BRK Not Available Price: |
| 93 |
912-0158 |
Hex Cent. L.-Nut 5/16-18 Thd. This part replaces 712-0158. Price: $2.83 |
| 94 |
736-0105 |
Bell-Wash 38" I.D. x .88" Price: $3.96 |
| 95 |
732-0308A |
Spring, Extension, .50 Dia. x 6.37 This part replaces 732-0308. Price: $10.50 |
| 96 |
731-0757-4 |
CONVOLUTED CONDUIT Not Available This part replaces 731-0483. Price: |
| 97 |
712-0214 |
Hex Cent. L-Nut 3/8-24 Thd. Price: $5.94 |
| 98 |
94076A-0637 |
IDLER BRACKET ASSEMBLY Not Available This part replaces 14076A. Price: |
| 99 |
756-0487 |
Idler Pulley This part replaces 756-0293A. Price: $45.43 |
| 100 |
710-0459A |
Hex Cap Screw 3/8-24 x 1.5 This part replaces 710-0459. Price: $6.50 |
| 101 |
948-0278 |
Spacer This part replaces 748-0278. Price: $10.29 |
| 102 |
738-0129 |
Shld. Bolt .498" Dia. x 2.05" Price: $9.86 |
| 103 |
932-0478 |
Spring, Extension This part replaces 732-0478. Price: $11.56 |
| 104 |
710-1002 |
Hex Bolt 7/16-20 x 2.75" Not Available Price: |
| 106 |
736-0322 |
Fl-Wash 44" I.D. x 1.25" Price: $8.42 |
| 107 |
756-0989 |
Engine Pulley Price: $137.59 |
| 108 |
17358D-0637 |
BRACKET-BELT GUARD Not Available This part replaces 17358D. Price: |
| 109 |
750-0956 |
Spacer Price: $17.79 |
| 114 |
736-0242 |
Bell-Wash 345" I.D. x .88" Price: $3.75 |
| 115 |
710-0833 |
Hex Bolt 5/16-18 x 5.25" Price: $8.31 |
| 116 |
920-0232 |
Knob This part replaces 720-0232. Price: $9.11 |
| 117 |
720-0218 |
Shift Knob Price: $17.27 |
| 118 |
16888A-0637 |
IDLER BRACKET Not Available This part replaces 16888A. Price: |
| 119 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 120 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 121 |
710-0501 |
Hex Bolt 1/4-20 x 2" Price: $6.24 |
| 122 |
710-0726 |
Hex AB-Tap Scr. 5/16 x .75" Price: $3.82 |
| 123 |
13887A |
BRACKET-DECK CONTROL Not Available Price: |
| 125 |
710-3083 |
Hex Bolt 5/16-18 x 1.375" Price: $3.94 |
