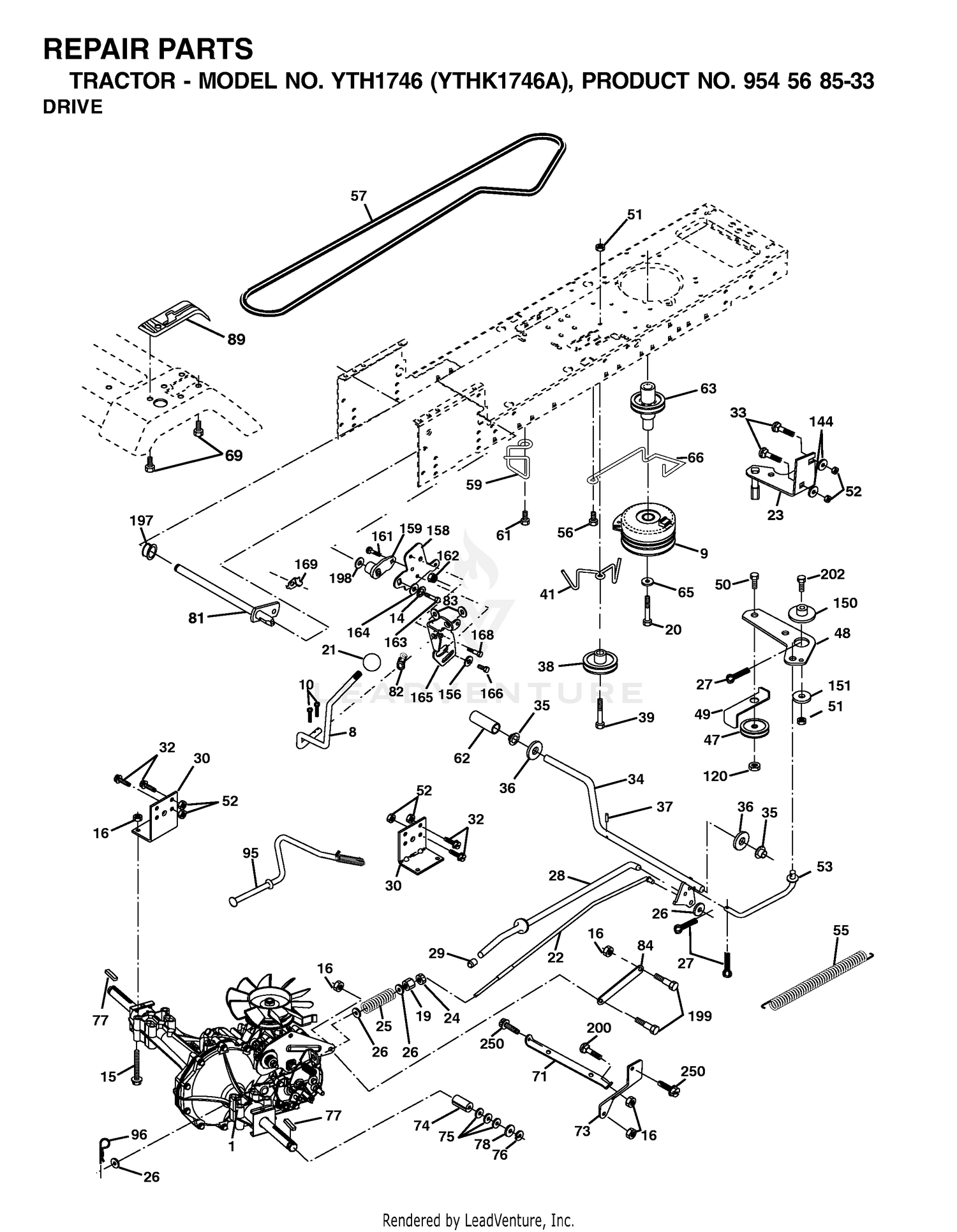

| Ref | Part Number | Description |
|---|
| 1 |
132-6259-0P |
SWITCH MOUNT ASM This part replaces 132-6259-03. Price: $105.94 |
| 2 |
117-5458 |
SCREW-HHF Price: $0.22 |
| 3 |
99-3410 |
SWITCH Price: $95.63 |
| 4 |
108-9824 |
NUT-SWITCH Price: $1.97 |
| 5 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 6 |
32144-69 |
SCREW-HWHTF Price: $1.58 |
| 7 |
2412-4 |
CLAMP-R Price: $4.22 |
| 8 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 8 |
532165619 |
ROD.SHIFT.FENDER.ADJ.LT.CRD Price: $19.99 |
| 9 |
120-8899 |
CABLE-BRAKE, LH Price: $97.43 |
| 9 |
532145028 |
CLUTCH.ELECT.EVX. Price: $299.99 |
| 10 |
322-13 |
SCREW-HH Price: $2.73 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
132-6290-0P |
RACK ASM This part replaces 132-6290-03. Price: $114.51 |
| 12 |
3256-69 |
WASHER-FLAT Price: $0.62 |
| 13 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 14 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 15 |
93-8742 |
FOOTPAD-BRAKE Price: $27.95 |
| 16 |
132-6288-01 |
PEDAL-BRAKE, LH Price: $132.21 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
120-8898 |
CABLE-BRAKE, RH Price: $104.62 |
| 18 |
94-3088 |
SPRING-COMPRESSION Price: $8.24 |
| 19 |
120-9694 |
PIN-CLEVIS Price: $2.17 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532150280. Price: $2.99 |
| 21 |
132-6252 |
PEDAL-BRAKE, RH Price: $122.77 |
| 21 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 22 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
532169498 |
ROD BRAKE HYDRO Price: $17.99 |
| 23 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 23 |
532171258 |
BRACKET Price: $9.99 |
| 24 |
3231-21 |
SCREW-CARR Price: $0.76 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
532151332 |
SPRING, BRAKE ROD This part replaces 532106888. Price: $4.99 |
| 25 |
94-3050 |
PLATE-SPRING Price: $7.88 |
| 26 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 29 |
532071673 |
PLUNGER CAP Price: $4.99 |
| 30 |
132-6247-01 |
MOUNT-BEARING Price: $13.60 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 31 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 32 |
137-1632 |
HUB-BRAKE This part replaces 132-6229. Price: $43.71 |
| 32 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 33 |
4-2390 |
WASHER-FLAT Price: $0.62 |
| 33 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 34 |
32121-125 |
PIN-SPRING Price: $0.54 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 36 |
88-7970 |
CLIP Price: $2.51 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
| 39 |
596564405 |
Bolts This part replaces 874760648. Price: $2.99 |
| 41 |
532175556 |
KEEPER, BELT IDLER Price: $6.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 This part replaces 874760624. Price: $6.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 This part replaces 532105710. Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
532140294 |
DRIVE BELT, LTH & YTH TRACTORS Price: $34.99 |
| 59 |
532169691 |
KEEPER, BELT CENTER Price: $17.99 |
| 61 |
817490614 |
Screw, Hex Washer Hd. 3/8 - 16 x 7/8 This part replaces 817120614. Price: $3.20 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532175414 |
PULLEY, ENGINE Price: $54.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 69 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532165596 |
SHAFT ASM CROSS TAPERED Price: $32.99 |
| 82 |
532123782 |
SPRING,TORSION Price: $3.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
532169594 |
LINK TRANSAXLE Price: $5.99 |
| 89 |
532176940 |
CONSOLE, SHIFT Price: $4.59 |
| 95 |
532170201 |
CONTROL ASM. BYPASS HYDRO Price: $8.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 144 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga SD Price: $5.99 |
| 150 |
532175456 |
SPACER, RETAINER Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532165494. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 164 |
819091010 |
Washer 5/8 x .281 x 10 Ga. Price: $3.15 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
532166880 |
SCREW Price: $4.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 198 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 202 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 250 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
