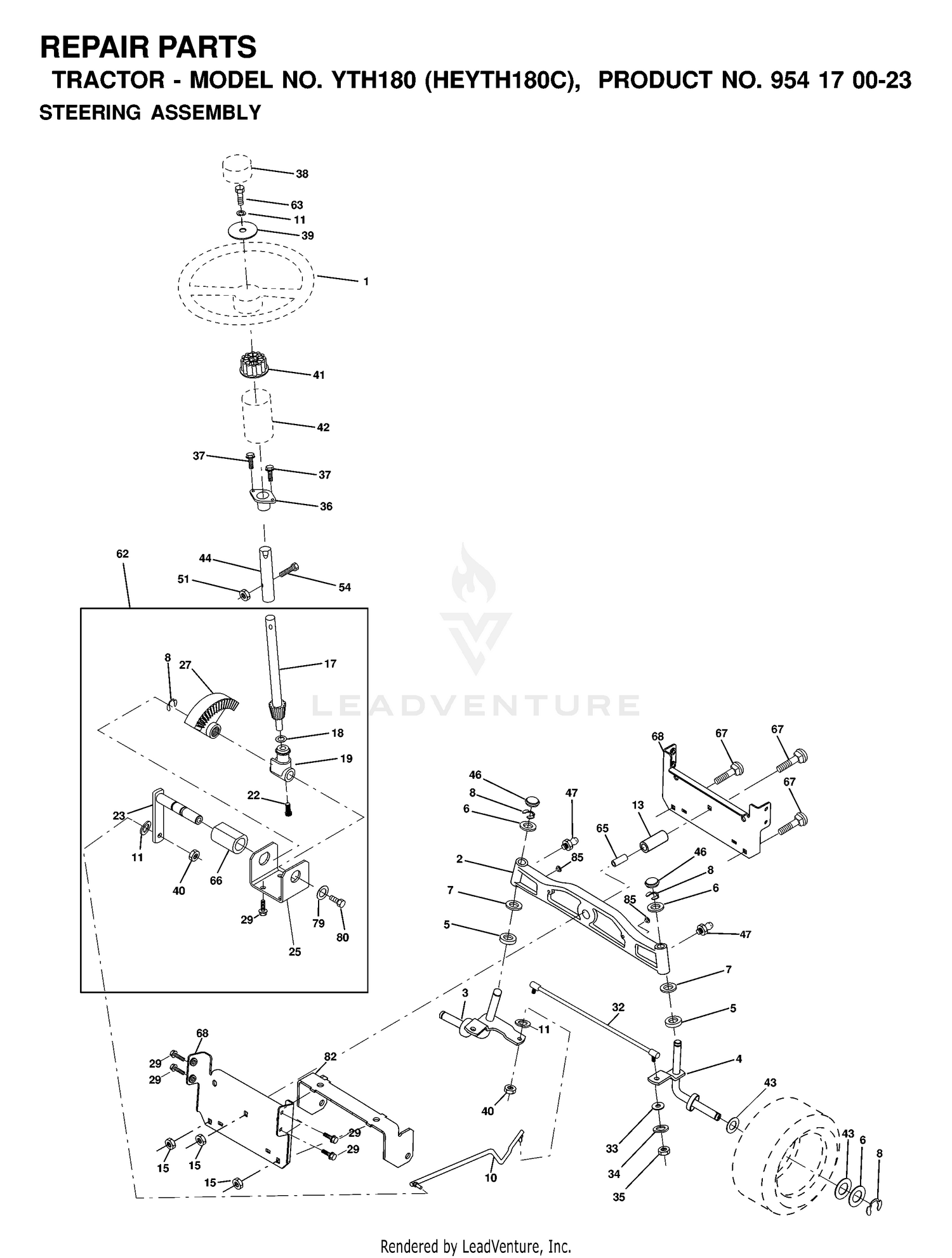

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532165854. Price: $119.99 |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
819272016 |
WASHER Price: $3.99 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 10 |
532169832 |
DRAGLINK.15".TIRES Price: $64.99 |
| 10 |
98-9459 |
CAMSHAFT-FUEL Price: $159.71 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 17 |
531166901 |
SERVICE KIT SHAFT ASM ST This part replaces 532156546. Price: $42.99 |
| 18 |
532057079 |
THRUST WASHER Price: $1.99 |
| 19 |
532160395 |
STEERING SHAFT SUPPORT Price: $8.99 |
| 20 |
107-9077 |
BEARING-BALL Price: $81.95 |
| 22 |
532165857 |
SCREW.HX.WSH.HD Price: $3.99 |
| 23 |
531154301 |
SERVICE.KIT SHAFT ASSY SHAFT A This part replaces 532165851. Price: $22.99 |
| 25 |
532154406 |
BRACKET STEERING Price: $6.99 |
| 27 |
532136874 |
GEAR.SECTOR Price: $69.99 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 817060612. Price: $3.99 |
| 30 |
107-9078 |
BEARING-BALL Price: $81.95 |
| 32 |
532171888 |
TIE ROD This part replaces 532139929. Price: $59.99 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 39 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Gauge Price: $2.99 |
| 40 |
130-1512 |
NUT Price: $6.40 |
| 41 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
532153721 |
SHAFT EXT STEERING This part replaces 532153720. Price: $54.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 47 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 50 |
120-2562 |
GEAR-PUMP, INJECTION Price: $83.24 |
| 51 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 54 |
595305701 |
Screws This part replaces 874780520. Price: $3.99 |
| 60 |
98-9595 |
KEY-WOODRUFF Price: $2.04 |
| 62 |
584371701 |
KIT.STEER.ASM.P/L This part replaces 532167902. Price: $119.99 |
| 63 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 66 |
532154404 |
BEARING ARM Price: $3.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 70 |
98-9511 |
STOPPER-FUEL, CAMSHAFT Price: $5.18 |
| 74 |
532121160 |
JOINT.RH This part replaces 532109850. Price: $19.99 |
| 75 |
532109851 |
JOINT.LH Price: $27.99 |
| 76 |
532186799 |
ROD.TIE.NON-ADJUSTABLE This part replaces 532137156. Price: $59.99 |
| 77 |
873700600 |
NUT Price: $2.99 |
| 78 |
873360600 |
NUT Price: $4.99 |
| 79 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 80 |
874950612 |
BOLT.HX.NYLON3/8-16X Price: $4.99 |
| 80 |
98-7692 |
BOLT Price: $0.92 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 85 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 90 |
98-9644 |
GOVERNOR SHAFT ASM Price: $527.54 |
| 100 |
98-9562 |
HOLDER-GEAR, GOVERNOR Price: $61.49 |
| 110 |
98-9673 |
GEAR-GOVERNOR Price: $137.25 |
| 120 |
98-9561 |
HOLDER-WEIGHT, GOVERNOR Price: $23.68 |
| 130 |
98-9559 |
GOVERNOR WEIGHT ASM This part replaces 130-1240. Price: $105.15 |
| 140 |
98-9560 |
SHAFT-WEIGHT, GOVERNOR Price: $6.17 |
| 150 |
98-9692 |
ROLLER Price: $11.45 |
| 160 |
98-9563 |
SLEEVE-GOVERNOR Price: $29.68 |
| 170 |
98-9564 |
WASHER-THRUST Price: $5.01 |
| 180 |
107-9079 |
BEARING-BALL Price: $81.78 |
| 190 |
98-9657 |
CIRCLIP-SHAFT, GOVERNOR Price: $4.48 |
