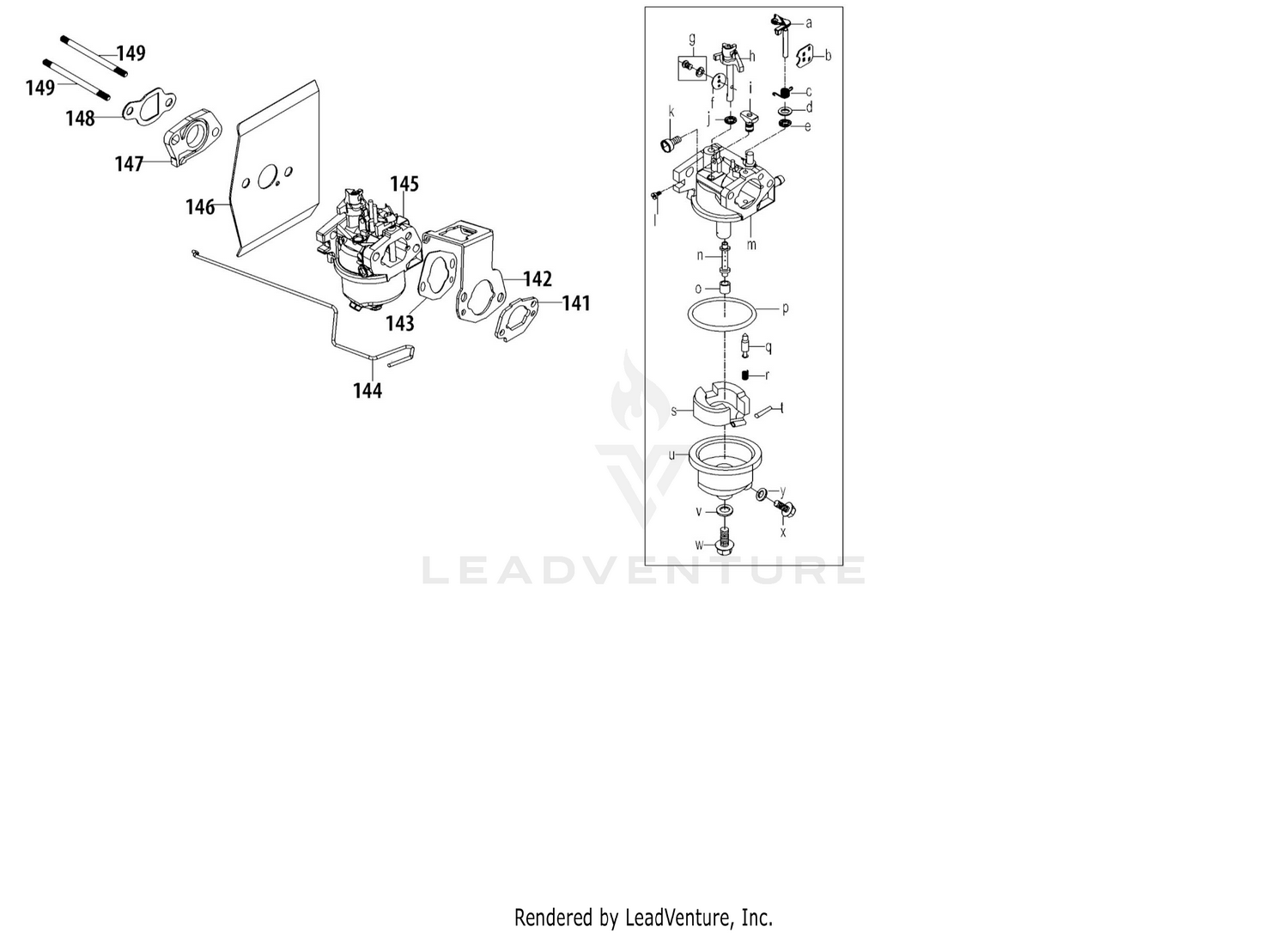

| Ref | Part Number | Description |
|---|
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Choke Return Spring |
| d |
None |
Choke Shaft Washer |
| e |
None |
Choke Shaft Fiber O-Ring |
| f |
None |
Throttle Plate |
| g |
None |
Screw M3X6 Throttle Plate |
| h |
None |
Throttle Shaft |
| i |
None |
Idle Jet Assembly |
| j |
None |
Throttle Shaft Fiber O-Ring |
| k |
None |
Idle Speed Adjusting Screw |
| l |
None |
Idle Mixture Screw |
| m |
None |
Carburetor Body |
| n |
None |
Emulsion Tube |
| o |
None |
Main Jet |
| p |
None |
Fuel Bowl O-Ring |
| q |
None |
Needle Valve |
| r |
None |
Needle Valve Spring |
| s |
None |
Float |
| t |
None |
Float Pin |
| u |
None |
Fuel Bowl |
| v |
None |
Fuel Bowl Mounting Bolt Gasket |
| w |
None |
Fuel Bowl Mounting Bolt |
| x |
None |
Fuel Drain Plug |
| 141 |
951-14419A |
AIR FILTER BASE GASKET This part replaces 951-14419. Price: $7.08 |
| 142 |
951-14420A |
CHOKE TEMP CONTROL BRACKET This part replaces 951-14420. Price: $8.96 |
| 143 |
951-14422 |
Temp Control Guide Bracket Gasket Price: $6.71 |
| 144 |
951-14421A |
CHOKE TEMP CONTROL LINKAGE This part replaces 951-14421. Price: $7.10 |
| 145 |
951-14423 |
Carburetor Assembly Price: $97.75 |
| 146 |
951-14424 |
Carburetor Gasket Price: $9.35 |
| 146 |
951-14758 |
Carburetor Repair Kit This part replaces 751-14758. Price: $41.61 |
| 147 |
951-11738A |
CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 148 |
951-11528 |
Carburetor Insulator Gasket Price: $3.90 |
| 149 |
951-14425 |
Carb Stud M6?87 Price: $6.18 |
