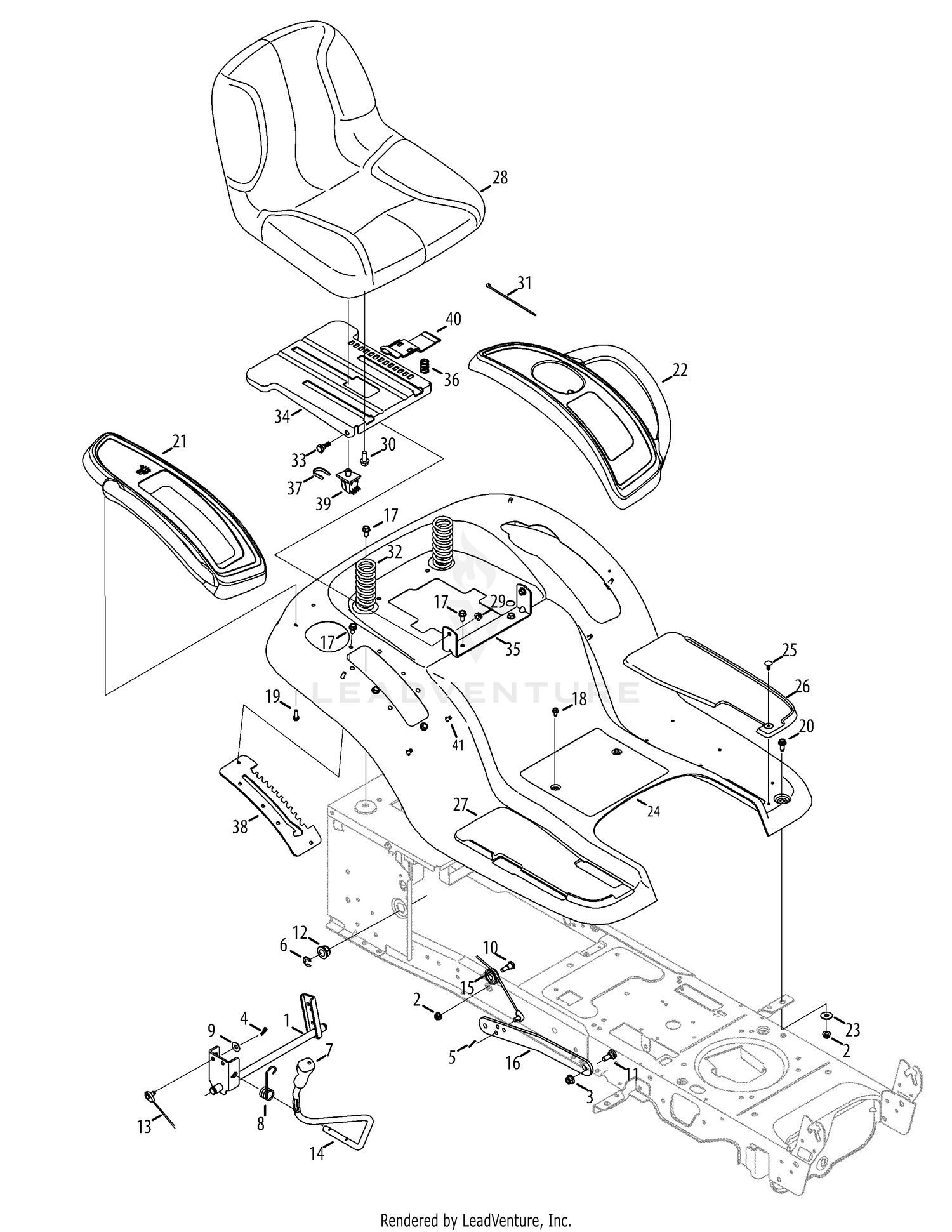

| Ref | Part Number | Description |
|---|
| 1 |
683-04223-0637 |
LIFT SHAFT ASSEMBLY (POWDER BLACK) Not Available Price: |
| 2 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 3 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 4 |
714-0104 |
Hairpin Clip This part replaces 914-0104. Price: $3.90 |
| 5 |
714-04040 |
Bow-Tie Cotter Pin Price: $1.28 |
| 6 |
716-0106A |
E-Ring, .625 DIA. Shaft Price: $4.42 |
| 7 |
720-0311 |
Handle Grip Price: $13.26 |
| 8 |
732-0874 |
Torsion Spring Price: $4.02 |
| 9 |
736-0105 |
Spring Washer, .401 x .870 x .063 Price: $3.96 |
| 10 |
738-0138A |
Shoulder Screw, .437 x .470 x 5/16-18 Price: $5.81 |
| 11 |
738-0380 |
Shld. Bolt 3/8-16 x .500" Dia. This part replaces 938-0380. Price: $7.34 |
| 12 |
941-0225 |
Hex Flange Bearing Price: $6.55 |
| 13 |
946-04436 |
Lift Cable, 16.64 LG Price: $21.54 |
| 14 |
747-04962A |
Lift Handle Price: $33.15 |
| 15 |
756-04331 |
Pulley Roller Cable Price: $5.78 |
| 16 |
783-05546A-0637 |
Lift Arm Price: $17.96 |
| 17 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 18 |
710-0599 |
Taptite Screw, Lock Washer, 1/4-20 Price: $3.86 |
| 19 |
710-0895 |
Hi-Lo Screw, Lock Washer, 1/4-15 Price: $5.82 |
| 20 |
710-1260A |
Taptite Screw, 5/16-18 x .750 Price: $3.34 |
| 21 |
731-06754 |
FENDER COVER (RH) Not Available Price: |
| 22 |
731-05837 |
FENDER COVER:(LH) Not Available Price: |
| 23 |
736-3078 |
Flat Washer, .344 x 1.00 x .063 HDN Price: $3.95 |
| 24 |
783-06235-4033 |
FENDER (FLINT MICA) Not Available Price: |
| 25 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 26 |
735-04138 |
FOOT PAD (LH) Not Available Price: |
| 27 |
735-04158 |
FOOT PAD (RH) Not Available Price: |
| 28 |
757-05232 |
HI BACK SEAT, BLACK (3 PT) This part replaces 757-04086. Price: $255.26 |
| 29 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 31 |
725-0157 |
Cable Tie, 3/16 x .05 x 7.4 Price: $3.46 |
| 32 |
732-04849 |
Compression Spring, 1.50 x 3.90 x .200 Price: $11.50 |
| 33 |
738-0296 |
Shoulder Screw, .437 x .286 This part replaces 938-0296. Price: $3.93 |
| 34 |
783-06049-0637 |
Seat Mounting Bracket Price: $60.14 |
| 35 |
783-06088A-0637 |
Seat Pivot Bracket Price: $18.96 |
| 36 |
732-04563 |
Comp. Spring, .68 x 1.065 x .055 Price: $4.74 |
| 37 |
783-06448 |
Switch Retainer Clip Price: $5.26 |
| 38 |
783-06548-0637 |
LIFT BRACKET Not Available Price: |
| 39 |
925-05013 |
Seat Switch Price: $28.07 |
| 40 |
783-06050 |
Seat Adjustment Lever Price: $8.85 |
